Description

Price

1-1

TANK ASSY,FUEL (BLUE) | BODY COLOR:GUL

44100-14JJ0-YSF

$933.80

1-2

TANK ASSY,FUEL (BLUE) | BODY COLOR:GUL This part replaces 44100-14JM0-YSF.

44100-14JJ0-YSF

$933.80

2

.EMBLEM,"SUZUKI" (WHITE)

68111-14J00-YWW

$28.77

3

CAP SET,FUEL TA This part replaces 44200-16851.

44200-16852

$118.21

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

6

SCREW,FUEL TANK RR BRACKET

44543-14J00

$7.05

7

FASTENER (33X25X2.6)

44572-13G00

$11.07

8

CUSHION (8X18X14)

09320-08071

$3.25

9

CUSHION,FUEL TANK COVER

44276-21H01

$5.80

10

CUSHION,FUEL TANK RR

44542-41G00

$7.69

11

BRACKET,FUEL TANK

44530-41G01

$40.55

12

RUBBER,FUEL TANK FR

44546-44H00

$13.35

13

CUSHION,FUEL TANK FRONT

44511-16G01

$4.11

14

SPACER,FUEL TANK FR

44512-16G00

$7.44

15

SCREW (6X25)

09139-06192

$3.23

16

WASHER This part replaces 09160-06012.

09160-06054

$1.62

17

BOLT (6X110)

09106-06119

$5.76

18

SPACER,FUEL TANK RR

44561-18G00

$16.96

19

HOSE,FUEL TANK WATER DRAIN

44423-14J01

$20.78

20

HOSE,FUEL TANK BRTHR NO.1

44424-14J01

$9.62

21

HOSE,FUEL TANK BRTHR NO.2

44424-14J11

$8.88

22

HOSE,FUEL TANK BRTHR NO.3

44424-38G01

$8.28

23

HOSE

09352-12164-010

Unavailable

24

3 WAY

09367-06007

$3.46

25

STAY,FUEL TANK

44574-35F00

$15.16

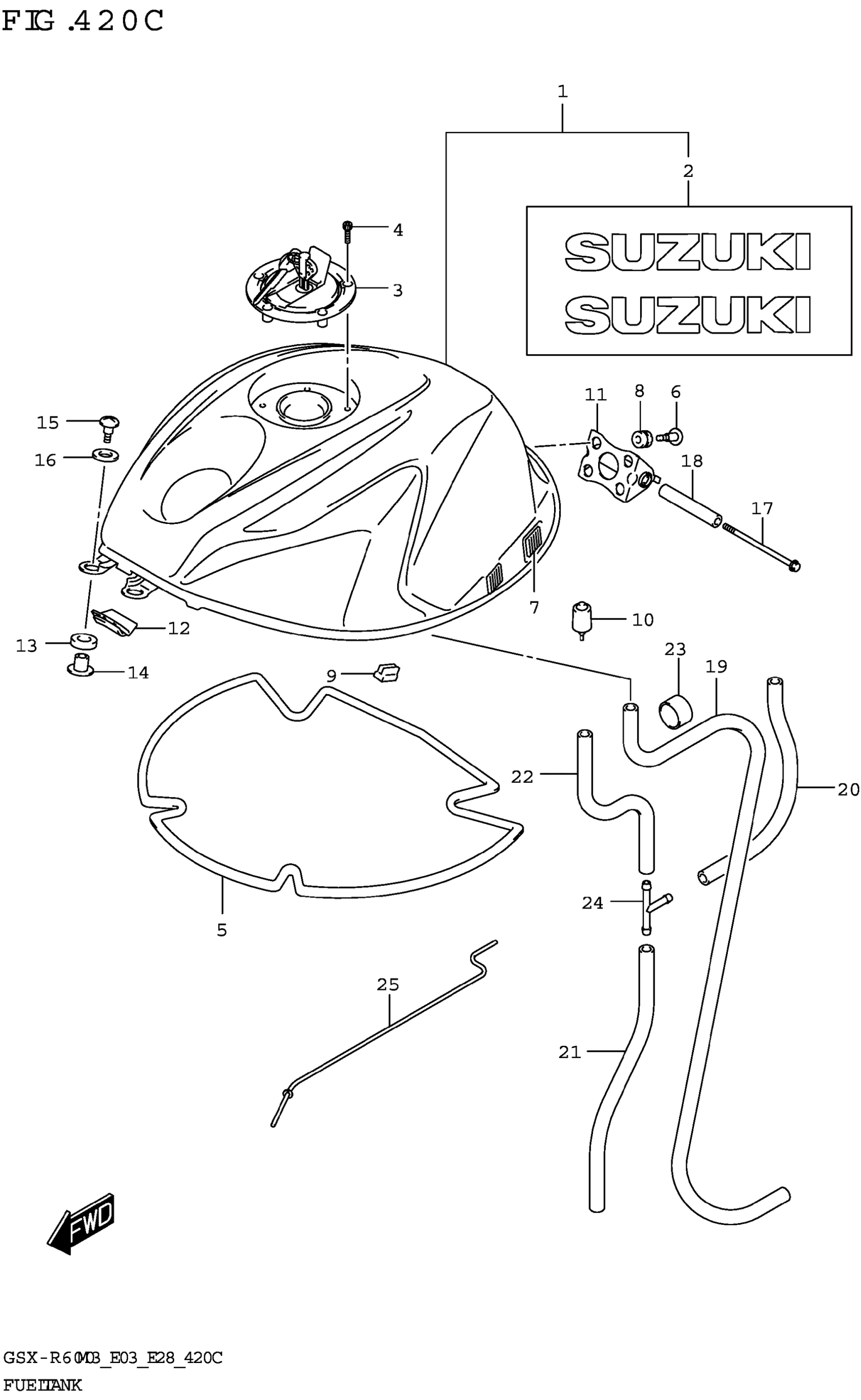

Suzuki GSX-R600M3 (2023) FUEL TANK (GSX-R600Z:E03,E28) Diagram
