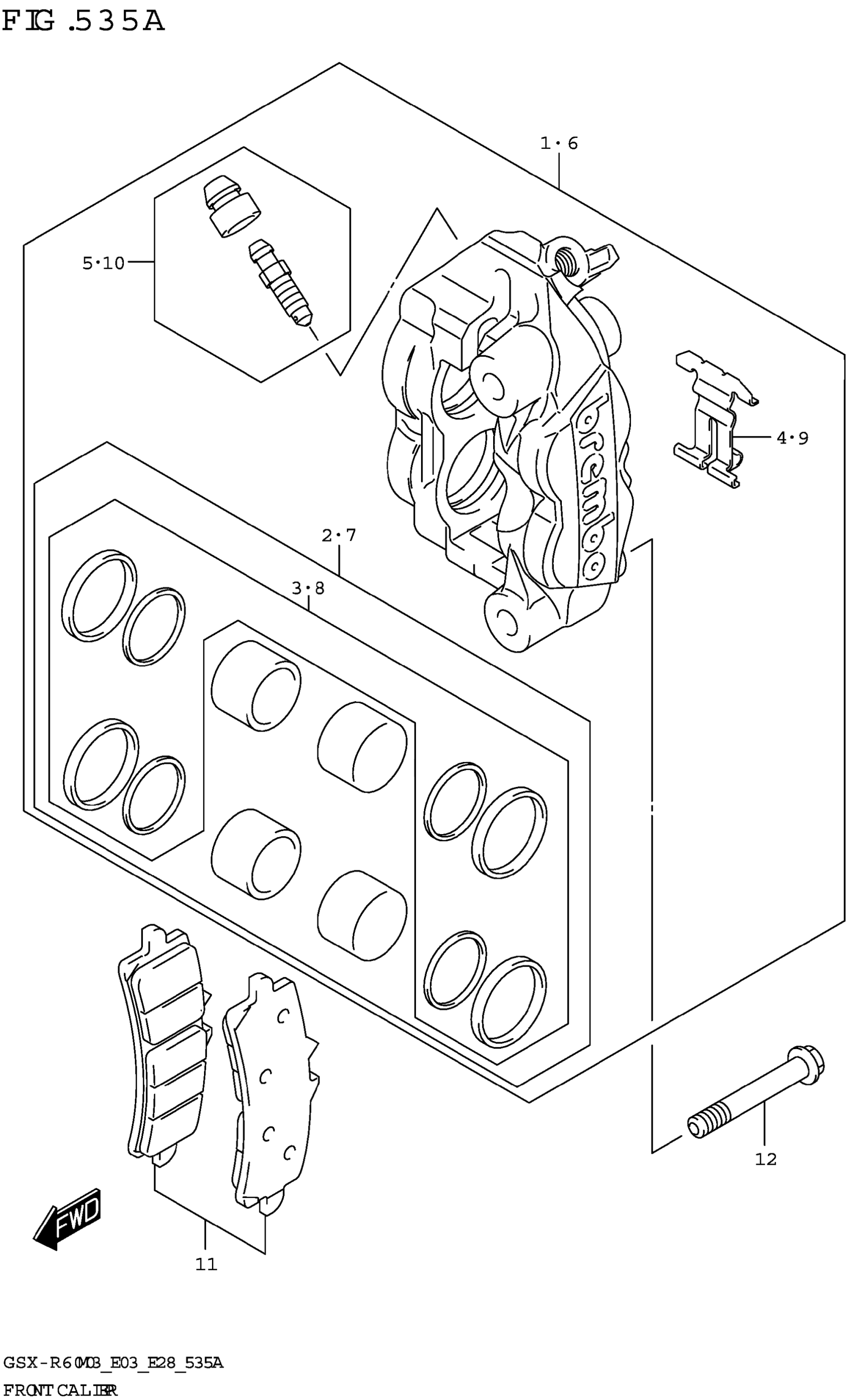

Suzuki GSX-R600M3 (2023) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,FRONT,L

59300-17K20-999

$398.15

2

.PISTON SET

59100-17810

$84.12

3

..SEAL SET,PISTON

59100-14820

$63.34

4

.SPRING

59151-14J00

$23.43

5

.BLEEDER SET

59100-14840

$25.21

6

CALIPER ASSY,FRONT,R

59100-17K20-999

$398.15

7

.PISTON SET

59100-17810

$84.12

8

..SEAL SET,PISTON

59100-14820

$63.34

9

.SPRING

59151-14J00

$23.43

10

.BLEEDER SET

59100-14840

$25.21

11

PAD SET (T:3.5)

59100-14830

$59.36

12

BOLT (10X70)

09103-10429

$15.38
