2022 Suzuki GSX-R600M2 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2022 Suzuki GSX-R600M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

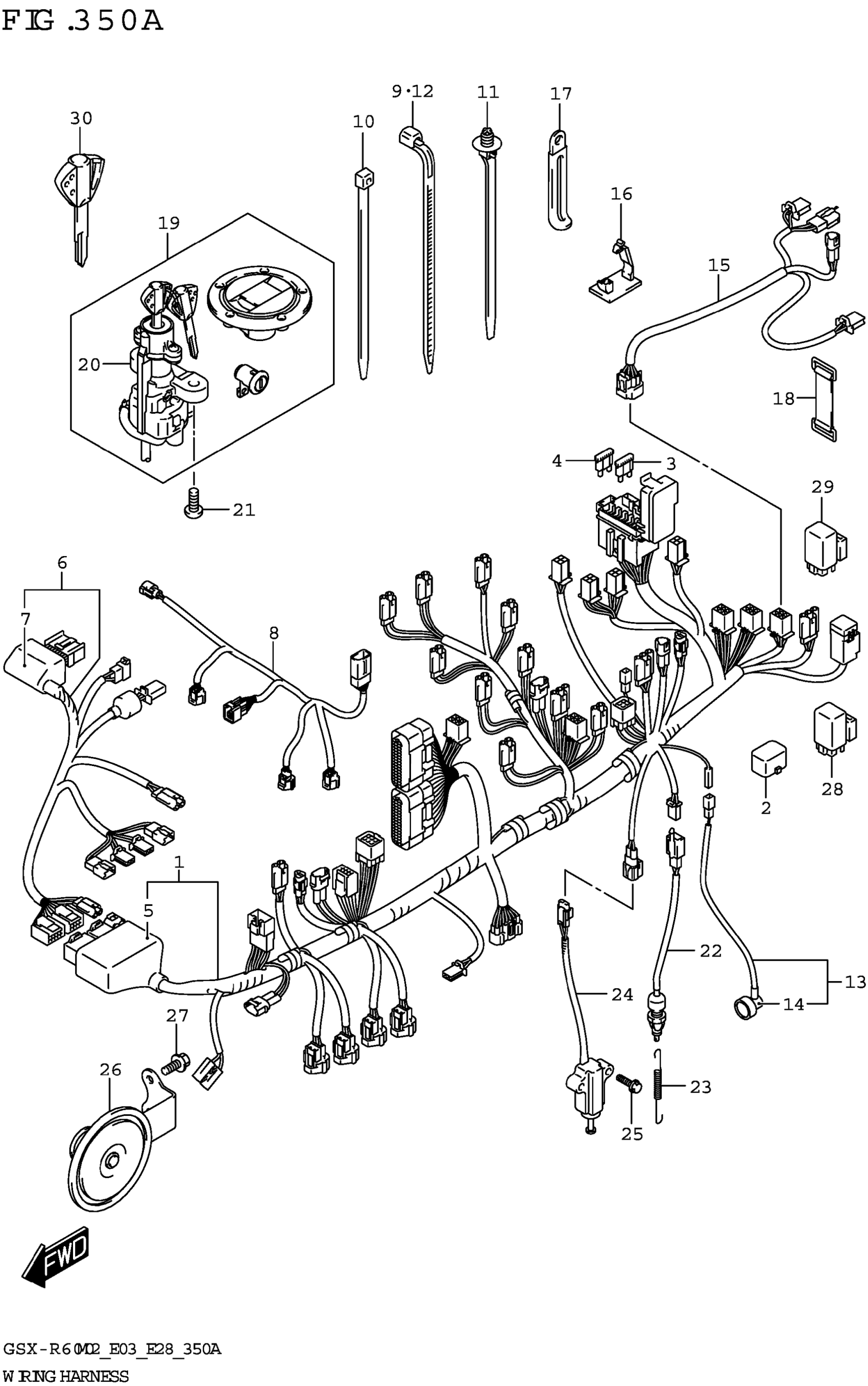

2022 Suzuki GSX-R600M2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING NO.1

36610-14JC2

1
Out of stock

2

CAP,TS

36654-06J01

1
Out of stock

3

.FUSE (10A)

09481-10501

5
Out of stock

4

.FUSE (15A)

09481-15501

1
Out of stock

5

.COVER

36618-18G00

1
Out of stock

6

HARNESS,WIRING NO.2

36620-14J11

1
Out of stock

7

.COVER,CONNECTOR

36618-47H00

1
Out of stock

8

HARNESS,WIRING NO.3

36630-14J11

1
Out of stock

9

CLAMP (L:95)

09407-11401

1
Out of stock

10

CLAMP (L:145)

09407-14407

2
Out of stock

11

CLAMP (L:170)

09407-17403

1
Out of stock

12

CLAMP (L:125)

09407-14403

2
Out of stock

13

WIRE,OIL PRESSURE SWITCH LEAD

36851-14J01

1
Out of stock

14

.CAP,OIL PRESSURE SWITCH

36618-31J00

1
Out of stock

15

WIRE,RR COMB LEAD

36859-14J01

1
Out of stock

16

CLAMP

09403-04310

2
Out of stock

17

CLAMP (L:45)

09404-06429

1
Out of stock

18

BAND

09462-00033

1
Out of stock

19

LOCK SET This part replaces 37101-40822.

37101-40824

1
Out of stock

20

.LOCK ASSY,STEERING This part replaces 37100-41G11.

37100-41G12

1
Out of stock

21

BOLT (8X20)

09139-08016

2
Out of stock

22

SWITCH ASSY,STOP LAMP

37740-14J00

1
Out of stock

23

SPRING

09443-06087

1
Out of stock

24

SWITCH ASSY,SIDE STAND This part replaces 37840-18J01.

37840-18J02

1
Out of stock

25

BOLT (6X20)

01550-0620A

2
Out of stock

26

HORN ASSY

38500-14J00

1
Out of stock

27

BOLT

01550-0616B

2
Out of stock

28

RELAY ASSY | FAN MOTOR

38740-24X50

1
Out of stock

29

RELAY ASSY | FUEL PUMP

38740-24X50

1
Out of stock

30

KEY,BLANK (IMMOBI) | OPT

37146-41G00

1
Out of stock
