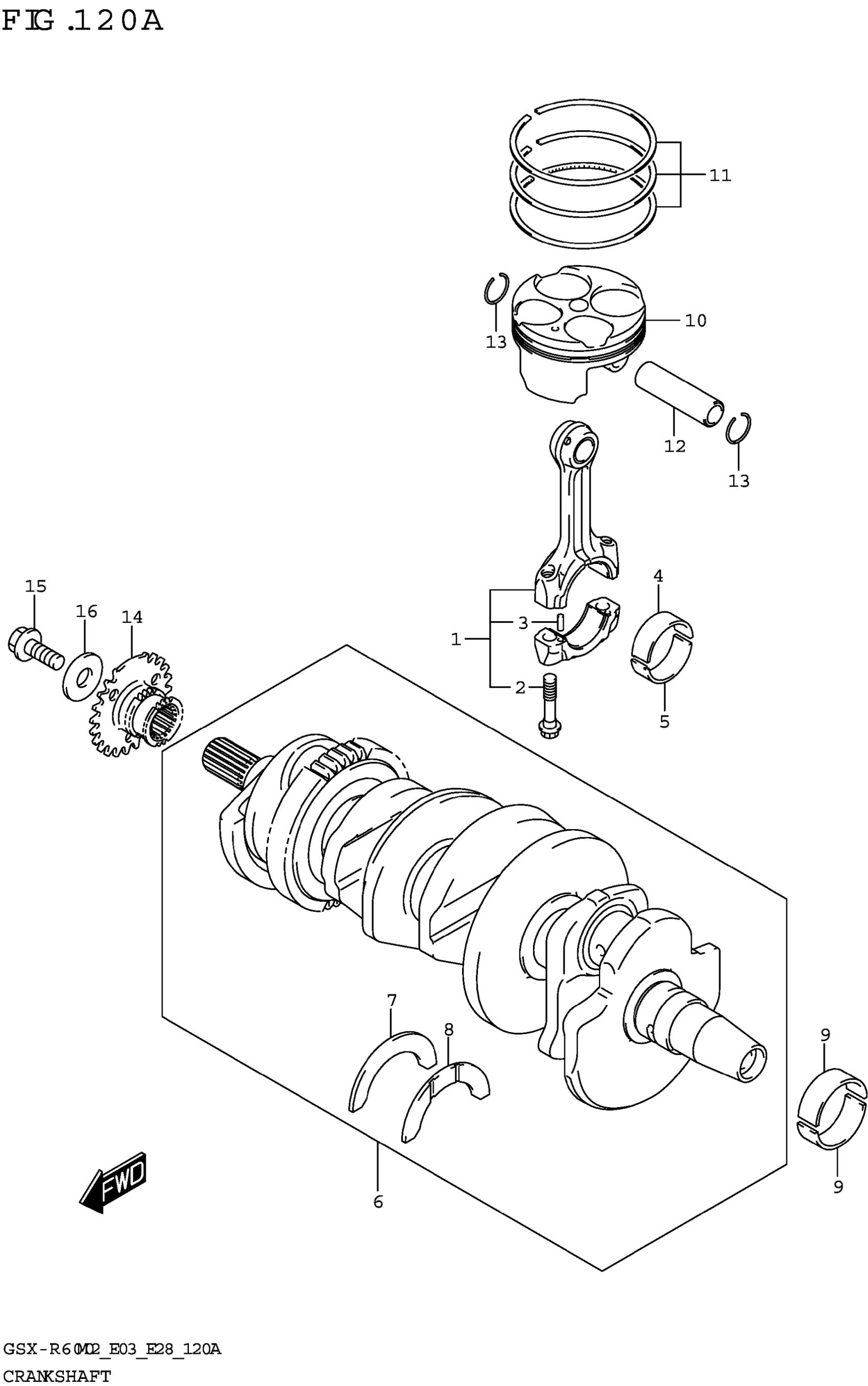

Suzuki GSX-R600M2 (2022) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-14J10

$227.97

2

.BOLT,CONNROD

12163-35F00

$10.23

3

PIN (4X13.8)

04221-04089

$1.49

4-1

BEARING,CRANK PIN

12164-14J00-0A0

$24.00

4-2

BEARING,CRANK PIN

12164-14J00-0B0

$24.00

4-3

BEARING,CRANK PIN

12164-14J00-0C0

$24.00

4-4

BEARING,CRANK PIN

12164-14J00-0D0

$28.22

5-1

BEARING,CRANK PIN

12164-29G00-0A0

$13.95

5-2

BEARING,CRANK PIN

12164-29G00-0B0

$13.95

5-3

BEARING,CRANK PIN

12164-29G00-0C0

$13.95

5-4

BEARING,CRANK PIN

12164-29G00-0D0

$14.49

6

CRANKSHAFT SET

12000-01820

$1,746.07

7

.BEARING,CRANK THRUST (GREEN)

12228-17E00-0D0

$9.50

8-1

.BEARING,CRANK THRUST (RED)

12228-17E00-0A0

$11.38

8-2

.BEARING,CRANK THRUST (BLACK)

12228-17E00-0B0

$9.69

8-3

.BEARING,CRANK THRUST (BLUE)

12228-17E00-0C0

$9.69

8-4

.BEARING,CRANK THRUST (GREEN)

12228-17E00-0D0

$9.50

8-5

.BEARING,CRANK THRUST (YELLOW

12228-17E00-0E0

$11.38

8-6

.BEARING,CRANK THRUST (WHITE)

12228-17E00-0F0

$11.60

9-1

BEARING,CRANKSHAFT

12229-01H00-0A0

$18.20

9-2

BEARING,CRANKSHAFT

12229-01H00-0B0

$18.20

9-3

BEARING,CRANKSHAFT

12229-01H00-0C0

$18.20

9-4

BEARING,CRANKSHAFT

12229-01H00-0D0

$18.28

9-5

BEARING,CRANKSHAFT

12229-01H00-0E0

$22.22

10

PISTON

12111-14J00-0F0

$173.36

11

RING SET,PISTON

12140-29G20

$87.30

12

PIN,PISTON

12151-14J00

$17.52

13

RING

09381-14001

$1.49

14

SPROCKET,CAM CHAIN DRIVE (NT: | 7)

12731-01H00

$130.35

15

BOLT (10X23)

09103-10189

$4.04

16

WASHER

08211-10285

$3.49
