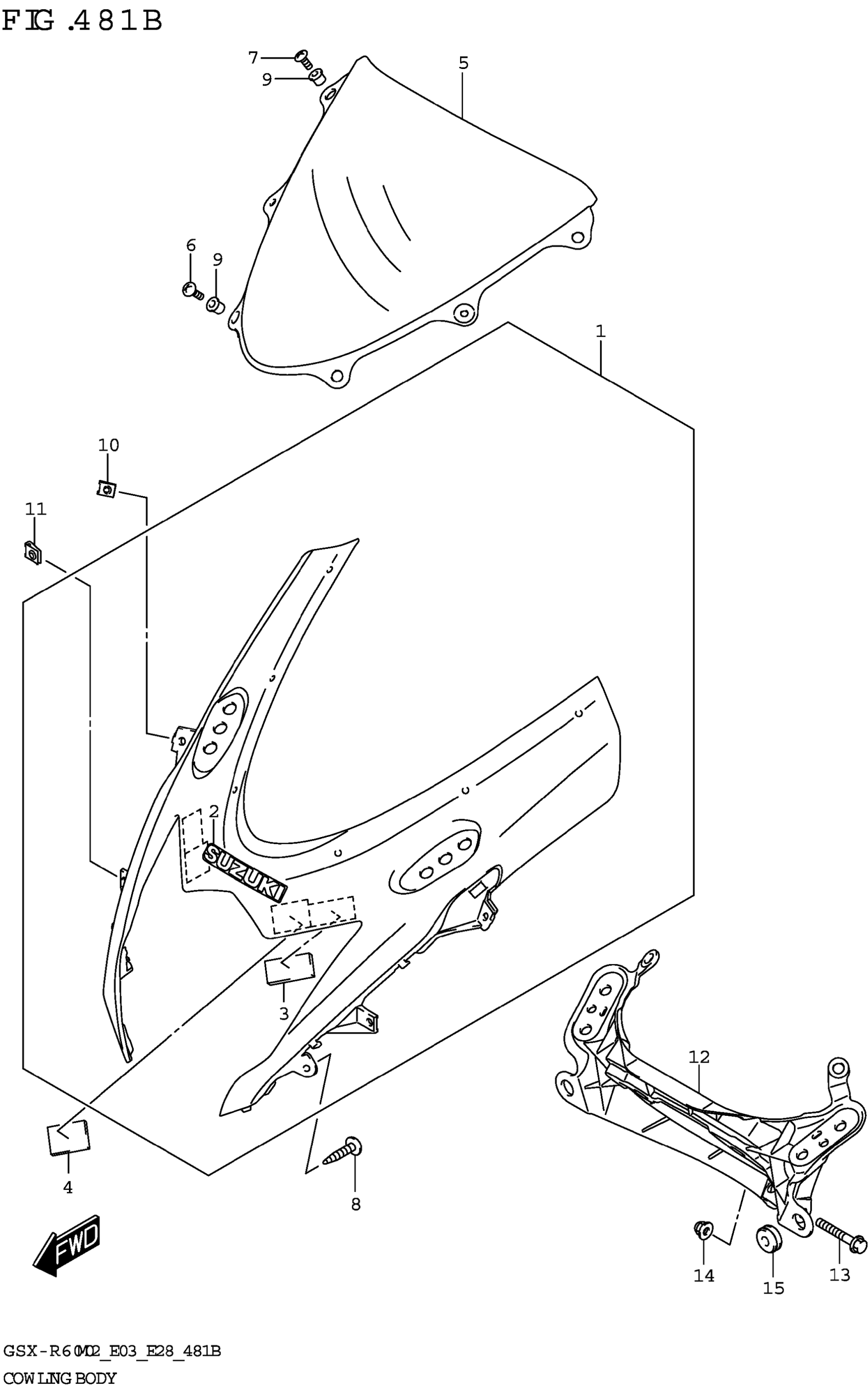

Suzuki GSX-R600M2 (2022) COWLING BODY (GSX-R600) Diagram

Description

Price

1-1

COWLING,BODY (ORANGE) | BODY COLOR:B9E

94410-14J12-QRE

$192.38

1-2

COWLING,BODY (GRAY) | BODY COLOR:CFS

94410-14J12-QT7

$163.53

2-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:B9E

68641-19F01-019

$7.00

2-2

.EMBLEM,"SUZUKI" (BLACK,GRAY) | BODY COLOR:CFS

68641-19F01-CGA

$6.70

.CUSHION,BODY COWL (20X40X7)

92146-14J00

$4.88

FASTENER (25X33X2.6)

44572-02F01

$11.07

WINDSCREEN

94611-14J00

$107.99

SCREW (5X18)

09125-05133

$2.19

SCREW (5X15)

09125-05134

$2.22

SCREW

03541-0516A

$1.49

NUT (M5)

09159-05019

$7.14

NUT (M5)

09148-05052

$3.37

NUT (M5)

09148-05047

$2.11

BRACE,COWLING

94511-14J00

$278.88

BOLT (8X45)

09103-08207

$2.51

NUT

08313-2008A

$2.50

CUSHION (8.5X23X9.5)

09320-08518

$2.60
