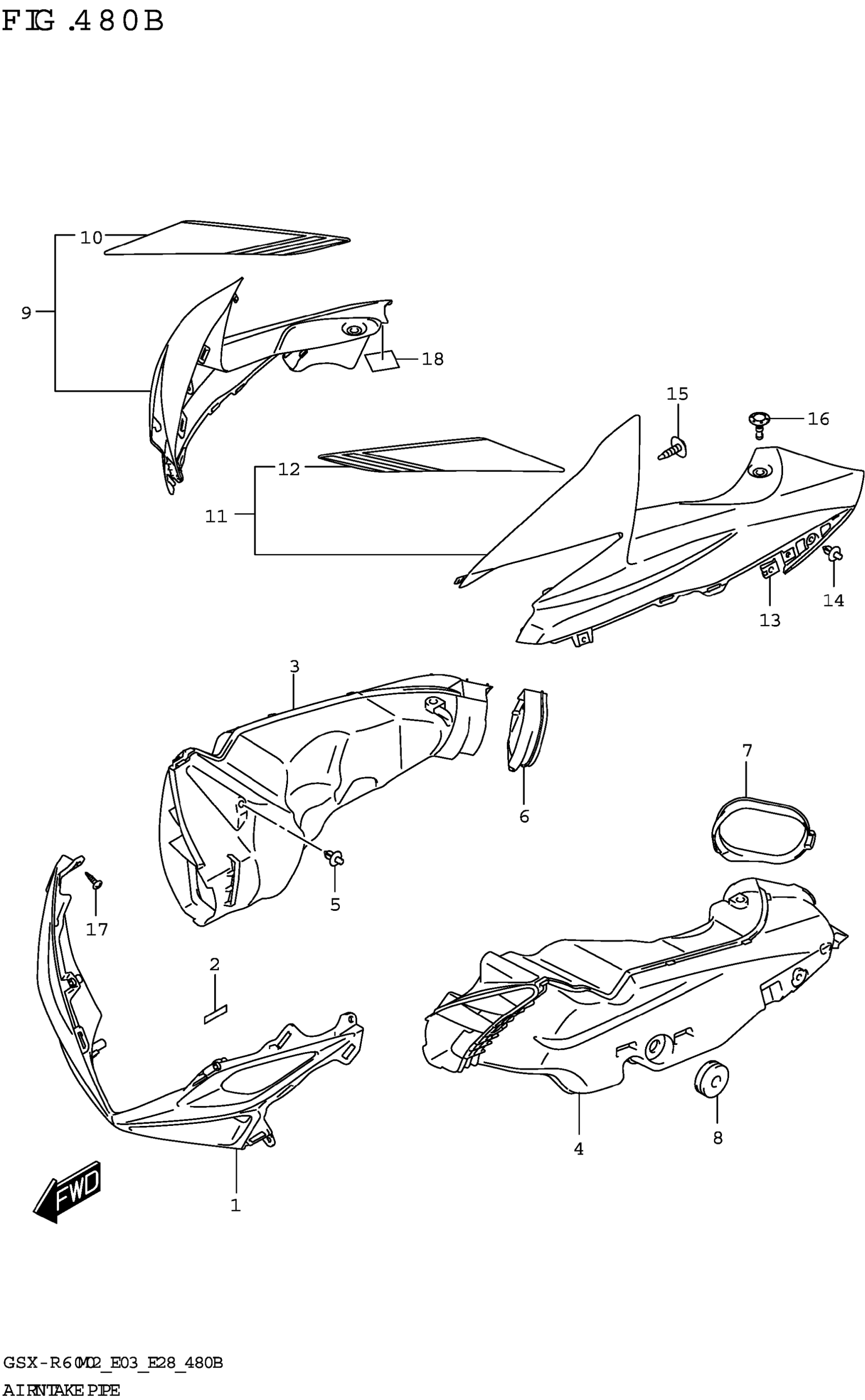

Suzuki GSX-R600M2 (2022) AIR INTAKE PIPE (GSX-R600) Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLACK)

94671-14J10-YKV

$223.68

2

TAPE (6X25X0.13)

94443-06G00

$3.25

3

PIPE,AIR INTAKE RH

94420-14J00

$98.40

4

PIPE,AIR INTAKE LH

94430-14J00

$82.08

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

6

MOLDING,AIR INTAKE,R

94423-14J00

$14.34

7

MOLDING,AIR INTAKE,L

94433-14J00

$14.34

8

CUSHION (8X26X7)

09320-08028

$3.04

9-1

COVER,INTAKE,R (BLACK) | BODY COLOR:B9E

94670-14J40-YVB

$119.46

9-2

COVER,INTAKE,R (GRAY) | BODY COLOR:CFS

94670-14J40-QT7

$140.53

10-1

.TAPE,INTAKE COVER,R (ORANGE, | LACK) BODY COLOR:B9E

68275-14J30-B9E

$17.98

10-2

.TAPE,INTAKE COVER,R | BODY COLOR:CFS

68275-14J30-CGE

$17.98

11-1

COVER,INTAKE,L (BLACK) | BODY COLOR:B9E

94680-14J40-YVB

$140.53

11-2

COVER,INTAKE,L (GRAY) | BODY COLOR:CFS

94680-14J40-QT7

$139.85

12-1

.TAPE,INTAKE COVER,L (ORANGE, | LACK) BODY COLOR:B9E

68285-14J30-B9E

$17.98

12-2

.TAPE,INTAKE COVER,L | BODY COLOR:CFS

68285-14J30-CGE

$17.98

13

NUT (M5)

09148-05052

$3.37

14

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

15

SCREW (5X12)

09132-05050

$1.92

16

CLIP

94479-35F00

$5.62

17

SCREW

03541-0512A

$1.49

18

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03
