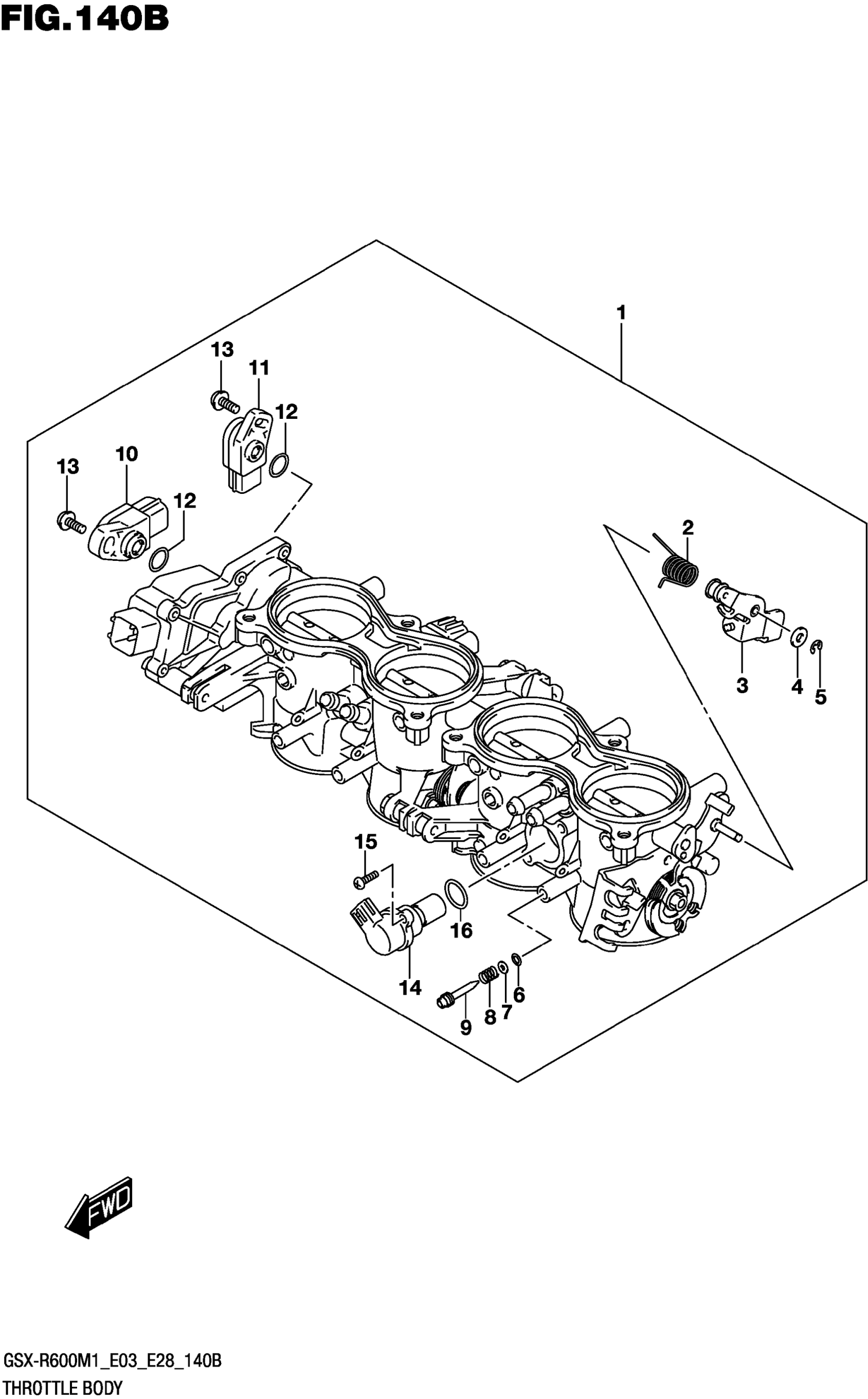

Suzuki GSX-R600M1 (2021) THROTTLE BODY (E33) Diagram

Description

Price

BODY ASSY,THROTTLE

13406-14J11

$2,286.17

.SPRING,TORSION

13426-29G00

$6.05

.LEVER ASSY,LINK

13420-37H00

Unavailable

.PACKING

13427-29G00

$3.54

.E RING

13424-29G00

$3.48

O-RING

13295-29901

$4.34

WASHER

13606-47A00

$3.28

SPRING,THROTTLE SCREW

13268-48700

$4.34

SCREW

13269-33E00

$11.10

.SENSOR

13580-14J00

$151.08

.SENSOR

13580-14J10

$170.23

.O-RING

13575-29G01

$3.15

.SCREW

13605-02F00

$3.71

.MOTOR ASSY

18117-14J01

$392.00

.SCREW

13605-37H00

Unavailable

.O-RING

13679-37H00

$7.27
