Description

Price

1

TANK ASSY,FUEL (BLUE)

44100-14J52-YSF

$1,637.35

2

CAP SET,FUEL TA This part replaces 44200-16871.

44200-16872

$172.96

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.93

4

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

5

SCREW,FUEL TANK RR BRACKET

44543-14J00

$7.95

6

FASTENER (33X25X2.6)

44572-13G00

$10.59

7

CUSHION (8X18X14)

09320-08071

$3.16

8

CUSHION,FUEL TANK COVER

44276-21H01

$5.71

9

CUSHION,FUEL TANK RR

44542-41G00

$7.36

10

BRACKET,FUEL TANK

44530-41G01

$45.77

11

RUBBER,FUEL TANK FR

44546-44H00

$15.07

12

CUSHION,FUEL TANK FRONT

44511-16G01

$3.94

13

SPACER,FUEL TANK FR

44512-16G00

$7.11

14

SCREW (6X25)

09139-06192

$3.01

15

WASHER This part replaces 09160-06012.

09160-06054

$1.66

16

BOLT (6X110)

09106-06119

$5.36

17

SPACER,FUEL TANK RR

44561-18G00

$16.22

18

HOSE,FUEL TANK WATER DRAIN

44423-14J01

$23.47

19

STAY,FUEL TANK

44574-35F00

$14.51

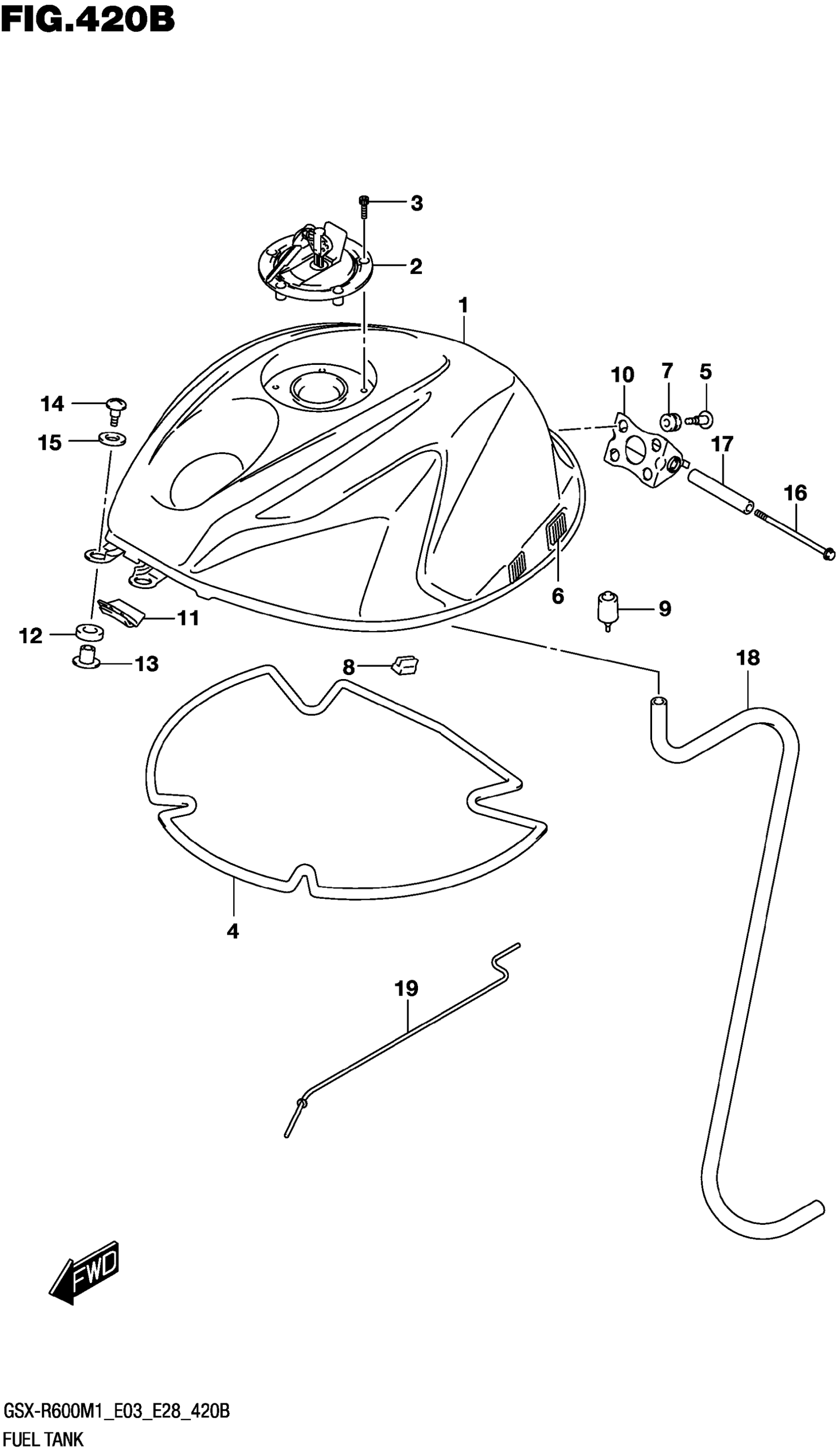

Suzuki GSX-R600M1 (2021) FUEL TANK (GSX-R600Z:E33) Diagram
