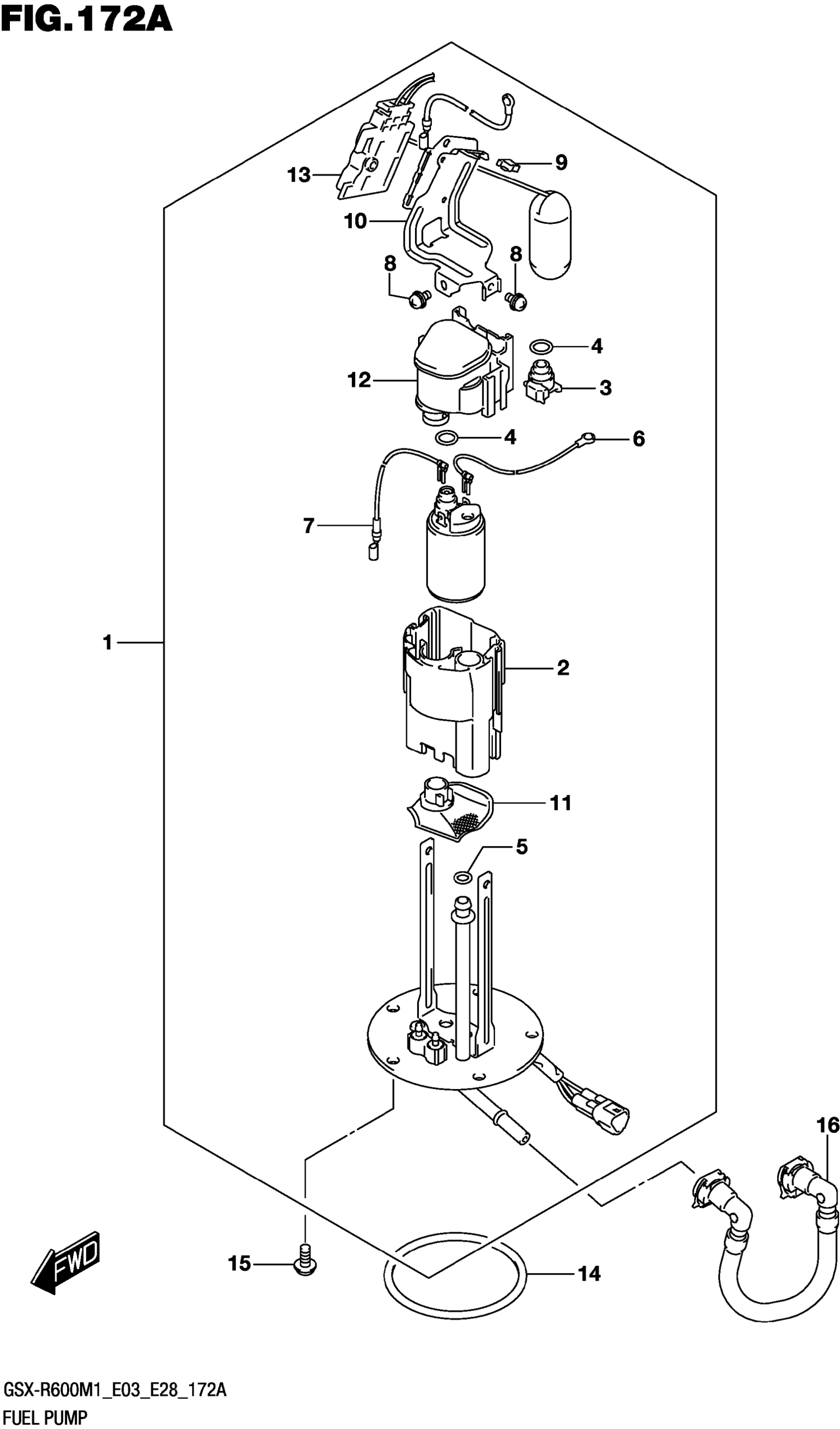

Suzuki GSX-R600M1 (2021) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-14J01

$507.47

2

.CUP

15111-27G00

$47.88

3

.JOINT

15112-05H00

$31.73

4

.O-RING

15113-05H00

$19.66

5

.O-RING

15113-35F00

$8.52

6

.WIRE,EARTH

15114-14J00

Unavailable

7

.WIRE,LEAD

15115-14J00

Unavailable

8

.SCREW

15116-10F00

$6.30

9

.SADDLE,EDGE

15119-23H00

Unavailable

10

.BRACKET,FUEL GAUGE

15181-14J00

Unavailable

11

.STRAINER

15420-05H00

$39.38

12

.REGULATOR,FUEL

15610-14J00

$166.17

13

.GAUGE ASSY,FUEL LEVEL

34810-14J00

Unavailable

14

O-RING

15201-35F00

$26.41

15

BOLT

07120-0612A

$2.57

16

HOSE,FUEL

15810-14J01

$69.02
