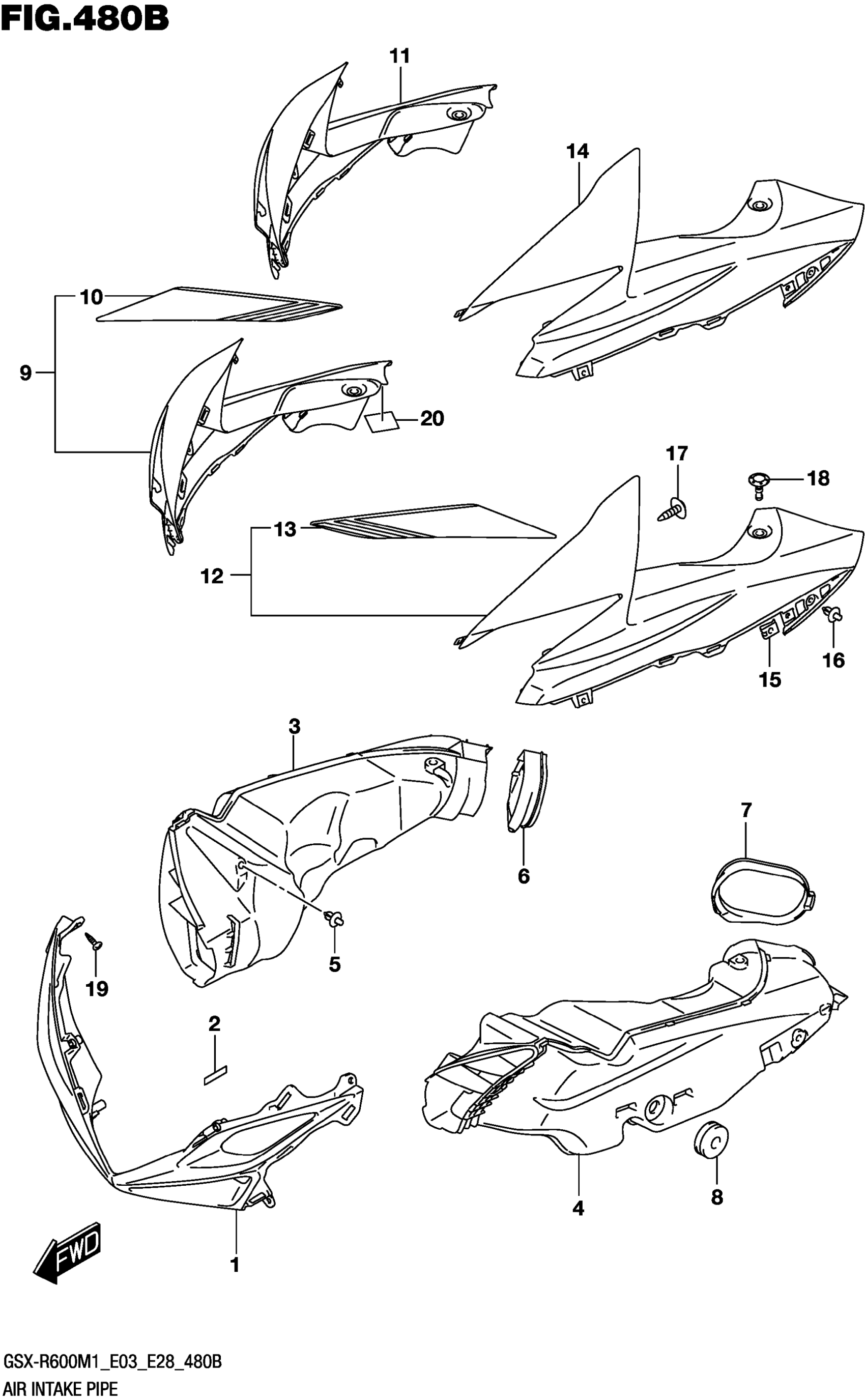

Suzuki GSX-R600M1 (2021) AIR INTAKE PIPE (GSX-R600) Diagram

#

Description
Price

1-1

COVER, INTAKE FRONT (BLACK) | BODY COLOR:YKV

94671-14J10-YKV

$251.25

1-2

COVER,INTAKE (BLACK) | BODY COLOR:YUH

94671-14J10-YVB

$164.15

2

TAPE (6X25X0.13) | 5X0.13)

94443-06G00

$2.97

3

PIPE,AIR INTAKE RH

94420-14J00

$107.97

4

PIPE,AIR INTAKE LH

94430-14J00

$108.98

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.13

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.13

8

CUSHION (8X26X7)

09320-08514

$2.68

9

COVER,INTAKE,R (WHITE) | BODY COLOR:YUH

94670-14J40-6KX

$155.63

10

.TAPE,INTAKE COVER,R | BODY COLOR:YUH

68275-14J30-B1F

Unavailable

11

COVER,INTAKE,R (BLACK) | BODY COLOR:YKV

94672-14J01-YKV

$145.53

12

COVER,INTAKE,L (WHITE) | BODY COLOR:YUH

94680-14J40-6KX

$164.37

13

.TAPE,INTAKE COVER,L | BODY COLOR:YUH

68285-14J30-B1F

Unavailable

14

COVER,INTAKE,L (BLACK) | BODY COLOR:YKV

94682-14J01-YKV

$148.30

15

NUT (M5)

09148-05052

$3.04

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

17

SCREW (5X12)

09132-05050

$1.89

18

CLIP

94479-35F00

$5.14

19

SCREW

03541-0512A

$1.37

20

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.80
