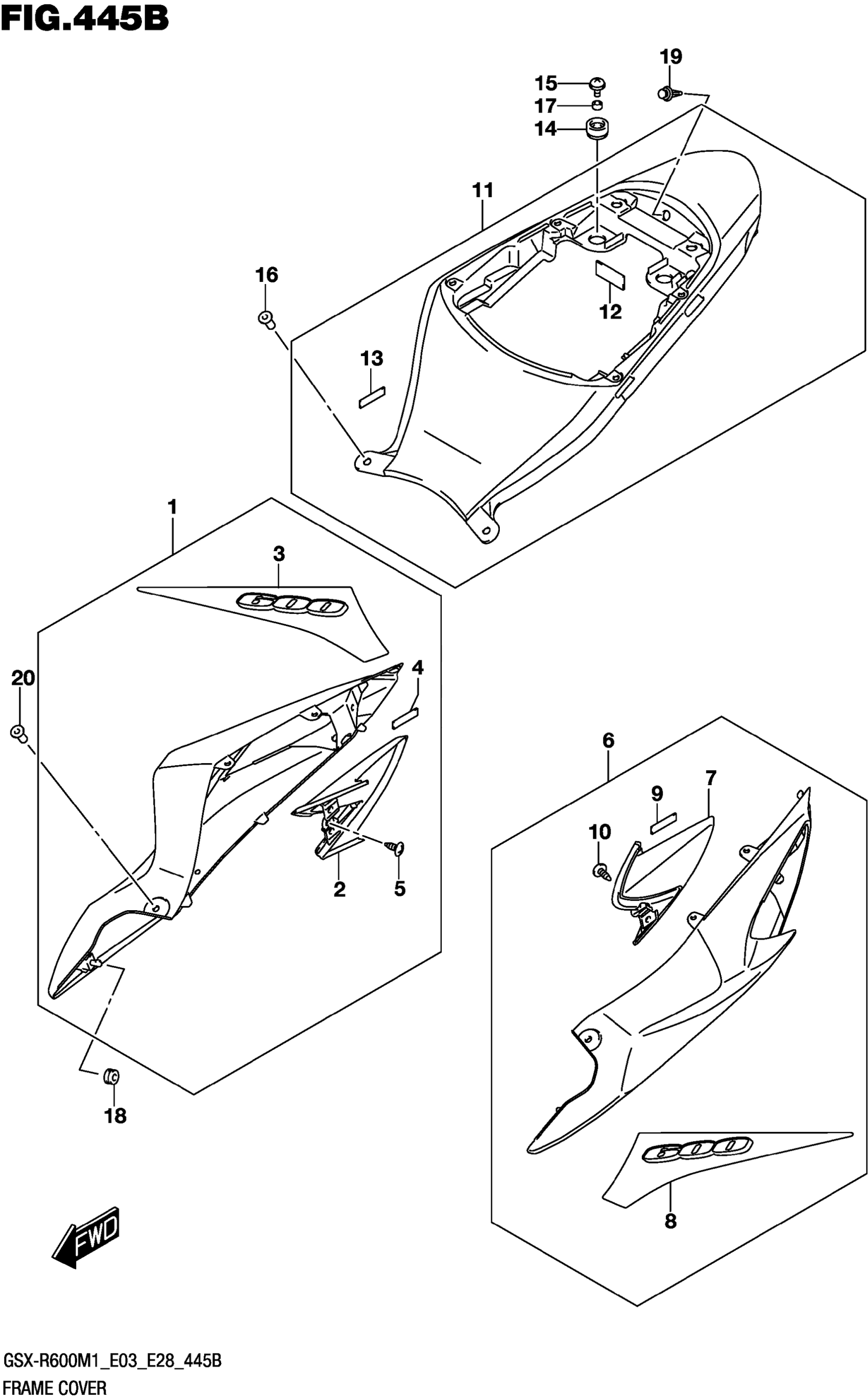

Suzuki GSX-R600M1 (2021) FRAME COVER (GSX-R600Z) Diagram

#

Description
Price

1

COVER ASSY,FRAME,R (SILVER)

47100-14J80-YMD

$114.40

2

COVER,FRAME RR,R

47611-14J00

$18.97

3

.TAPE,FRAME COVER,R (ORANGE,S

68135-14J70-BW8

Unavailable

4

TAPE (6X25X0.13) | 25X0.13)

94443-06G00

$3.25

5

SCREW

03541-0512A

$1.49

6

COVER ASSY,FRAME,L (SILVER)

47200-14J80-YMD

$134.23

7

COVER,FRAME RR,L

47621-14J00

$19.07

8

.TAPE,FRAME COVER,L (ORANGE,S

68145-14J70-BW8

Unavailable

9

TAPE (6X25X0.13) | 25X0.13)

94443-06G00

$3.25

10

SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J01.

47300-14J10

$97.78

12

CUSHION (10X24X1)

48128-14FA0

$6.47

13

TAPE (6X25X0.13) | 25X0.13)

94443-06G00

$3.25

14

CUSHION (10X24X13)

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT (M5)

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION (6X18X6)

09320-06504

$4.96

19

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28
