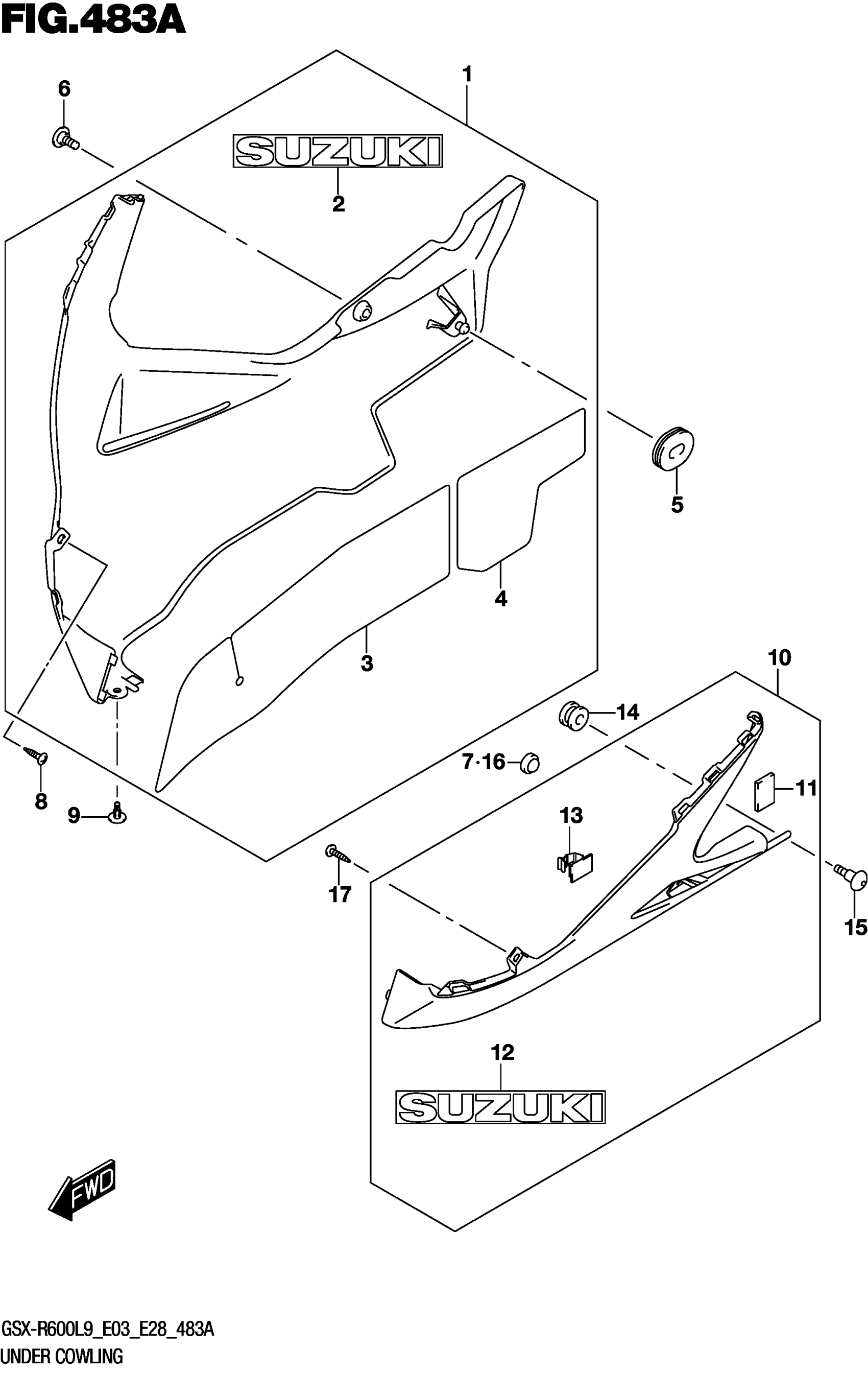

Suzuki GSX-R600L9 (2019) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING,UNDER RH (BLACK) | FOR YVB

94470-14J00-ATX

$315.62

1-2

COWLING, UNDER RH (WHITE) | FOR YWW

94470-14J00-BAX

$317.17

2-1

.EMBLEM,SUZUKI (WHITE) | FOR ATX

68181-33C20-YWW

$32.42

2-2

.EMBLEM (WHITE) | FOR BAX

68181-33C20-30H

$28.55

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION

94478-14J00

$5.42

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.11

7

CUSHION

09321-10018

$4.19

8

SCREW

03541-0512A

$1.37

9

CLIP

94479-35F00

$5.14

10-1

COWLING,UNDER,L (BLACK) | FOR YVB This part replaces 94480-14J00-ATX.

94480-14J01-ATX

$301.70

10-2

COWLING,UNDER,L | FOR YWW This part replaces 94480-14J00-BAX.

94480-14J01-BAX

$301.70

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$5.43

12-1

.EMBLEM,SUZUKI (WHITE) | FOR ATX

68181-33C20-YWW

$32.42

12-2

.EMBLEM (WHITE) | FOR BAX

68181-33C20-30H

$28.55

13

.CLAMP

09403-14311

$4.88

14

CUSHION (9X18X9.5) | LH

09320-09016

$1.97

15

SCREW (6X20) | LH

09139-06190

$3.77

16

CUSHION

09321-10018

$4.19

17

SCREW

03541-0512A

$1.37
