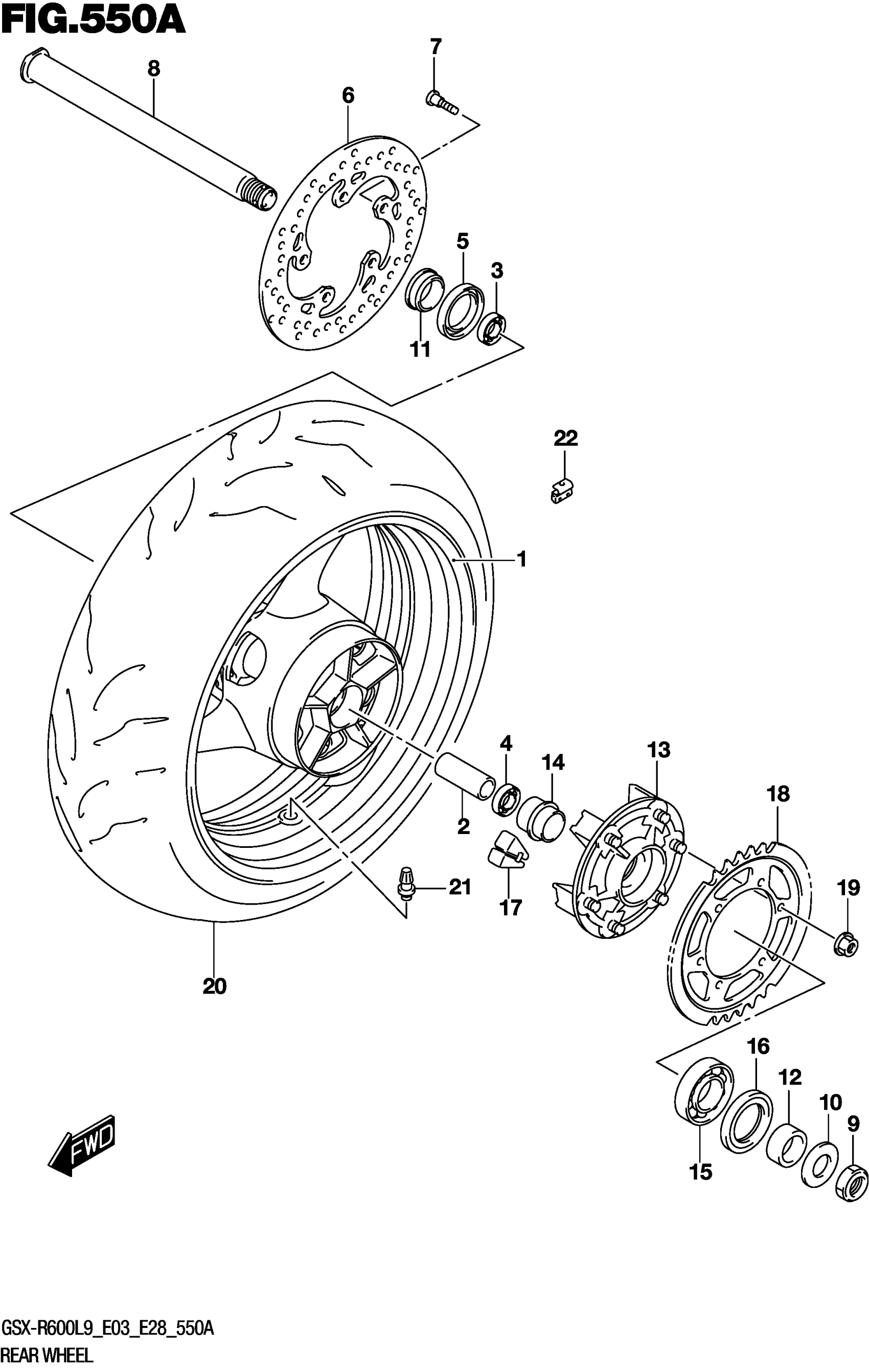

Suzuki GSX-R600L9 (2019) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT5.50) (WHITE)

64111-14J00-28W

Unavailable

1

WHEEL, REAR (17M/CXMT5.50) (WHITE)

64111-14J00-28W

Unavailable

2

SPACER,RR WHEEL BEARING

64731-14J00

$32.09

3

BEARING (25X52X15) | RH

09262-25061

$29.88

4

BEARING | LH

08123-60057

$31.52

5

.SEAL,OIL (32X52X7) | RH

09285-32004

$7.20

6

DISC,RR BRAKE

69211-18G00

$355.08

7

BOLT (8X21)

09106-08160

$3.22

8

AXLE,RR

64711-14J00

$89.25

9

NUT

64721-13K00

$11.54

10

WASHER (22X35X2)

09160-22081

$2.80

11

SPACER,FR AXLE,R

54751-41G10

$17.99

12

SPACER,RR AXLE,L

64751-44G00

$39.70

13

DRUM,RR SPROCKET

64610-47H00

$349.18

14

RETAINER,RR SPROCKET DRUM

64733-44G00

$27.45

15

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$35.55

16

SEAL,OIL (39X65X7)

09285-39001

$9.58

17

ABSORBER,RR HUB SHOCK

64651-47H10

$28.80

18

SPROCKET,REAR (43T-525)

64511-14J00

$154.63

19

NUT

08319-3110A

$2.73

20

TIRE,REAR (180/55 ZR17M/C (73

65110-14J00

$784.48

20

TIRE,REAR (180/55 ZR17M/C (73

65110-14J00

$784.48

20

TIRE,REAR (180/55 ZR17M/C (73

65110-14J00

$784.48

21

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

22-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$9.70

22-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$11.37

22-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$12.93
