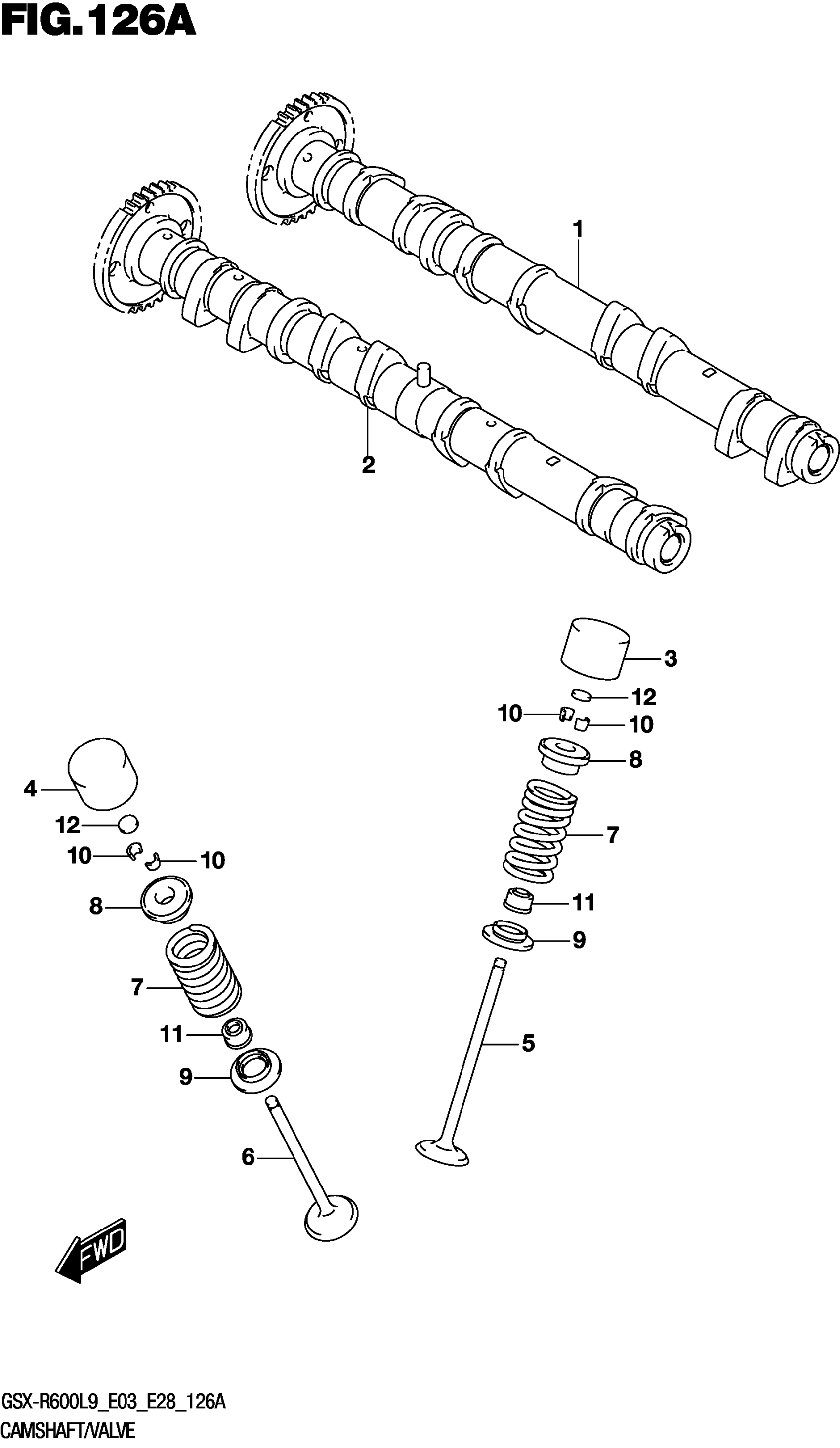

Suzuki GSX-R600L9 (2019) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE

12710-14J00

$456.48

2

CAMSHAFT,EXHAUST

12720-14J00

$445.33

3

TAPPET

12891-44G00

$77.92

4

TAPPET

12891-47H00

$68.43

5

VALVE,INTAKE

12911-37H00

$137.30

6

VALVE,EXHAUST

12912-14J00

$141.58

7

SPRING,VALVE

12921-37H00

$13.63

8

RETAINER,VALVE SPRING

12931-29G00

$15.16

9

SEAT,VALVE SPRING

12933-29G00

$7.07

10

COTTER,VALVE

12932-32C00

$2.03

11

SEAL,OIL (4.5X10X8)

09289-04002

$6.49

12-1

SHIM,TAPPET (T:1.20)

12892-05C00-120

$11.60

12-2

SHIM,TAPPET (T:1.25)

12892-05C00-125

$11.83

12-3

SHIM,TAPPET (T:1.30)

12892-05C00-130

$10.06

12-4

SHIM,TAPPET (T:1.35)

12892-05C00-135

$10.06

12-5

SHIM,TAPPET (T:1.40)

12892-05C00-140

$11.83

12-6

SHIM,TAPPET (T:1.45)

12892-05C00-145

$9.87

12-7

SHIM,TAPPET (T:1.50)

12892-05C00-150

$11.83

12-8

SHIM,TAPPET (T:1.55)

12892-05C00-155

$9.69

12-9

SHIM,TAPPET (T:1.60)

12892-05C00-160

$9.69

12-10

SHIM,TAPPET (T:1.65)

12892-05C00-165

$9.69

12-11

SHIM,TAPPET (T:1.70)

12892-05C00-170

$11.60

12-12

SHIM,TAPPET (T:1.75)

12892-05C00-175

$9.87

12-13

SHIM,TAPPET (T:1.80)

12892-05C00-180

$11.38

12-14

SHIM,TAPPET (T:1.85)

12892-05C00-185

$11.83

12-15

SHIM,TAPPET (T:1.90)

12892-05C00-190

$11.83

12-16

SHIM,TAPPET (T:1.95)

12892-05C00-195

$11.83

12-17

SHIM,TAPPET (T:2.00)

12892-05C00-200

$11.60

12-18

SHIM,TAPPET (T:2.05)

12892-05C00-205

$11.83

12-19

SHIM,TAPPET (T:2.10)

12892-05C00-210

$11.83

12-20

SHIM,TAPPET (T:2.15)

12892-05C00-215

$11.83

12-21

SHIM,TAPPET (T:2.20)

12892-05C00-220

$11.83

13

SHIM SET,TAPPET (5PCS.EACH) | OPT

12800-05830

$1,211.58

13

SHIM SET,TAPPET (5PCS.EACH) | NOT ILLUSTRATED

12800-05830

$1,211.58

13

SHIM SET,TAPPET (5PCS.EACH)

12800-05830

$1,211.58

14

.CASE,TAPPET SHIM | OPT

99000-69491

Unavailable

14

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69491

Unavailable
