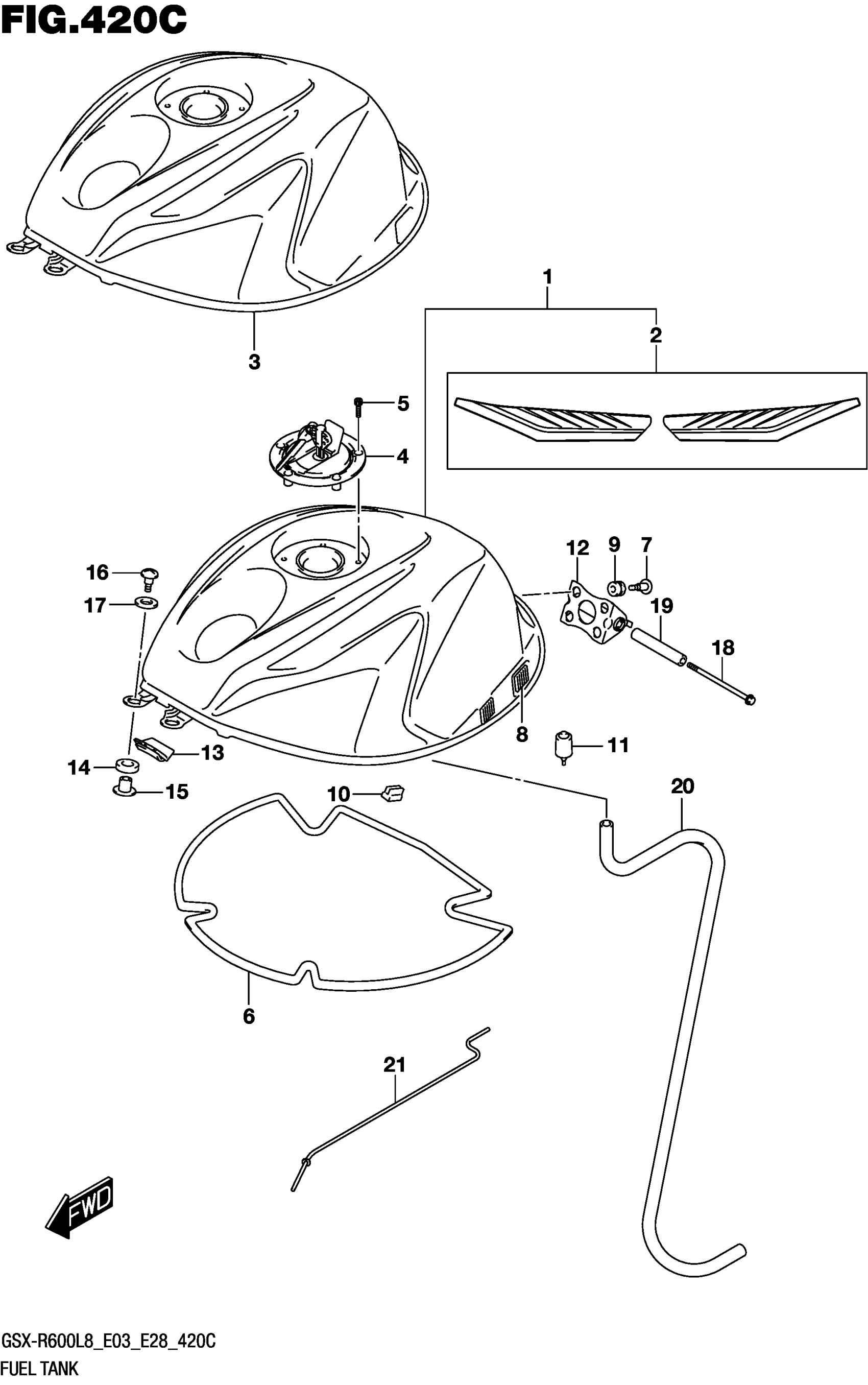

Suzuki GSX-R600L8 (2018) FUEL TANK (GSX-R600L8 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE)

44100-14JE0-YSF

Unavailable

2

.TAPE SET, FUEL TANK | FOR YSF

68110-14J10-BDH

$80.52

2

(BLUE/WHITE)

68110-14J10-BDH

$80.52

3-1

TANK ASSY (GRAY) | FOR QEB

44100-14J52-QEB

$1,010.72

3-2

TANK ASSY, FUEL (SILVER) | FOR BNE

44100-14J52-YMD

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

5

BOLT

44244-11J00

$4.00

6

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

7

SCREW

44543-14J00

$7.05

8

FASTENER, COVER

44572-13G00

$11.07

9

CUSHION

09320-08071

$3.25

10

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

11

CUSHION,FUEL TANK RR

44542-41G00

$7.69

12

BRACKET,FUEL TANK

44530-41G01

$40.55

13

RUBBER,FUEL TANK FR

44546-44H00

$13.35

14

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

15

SPACER, TANK FRONT

44512-16G00

$7.44

16

SCREW (6X25)

09139-06192

$3.23

17

WASHER This part replaces 09160-06012.

09160-06054

$1.62

18

BOLT (6X110)

09106-06119

$5.76

19

SPACER, TANK REAR

44561-18G00

$16.96

20

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$20.78

21

STAY, FUEL TANK | OPT

44574-35F00

$15.16

22

COLOR :

SPECIAL NOTE

Unavailable

22

BNE=YMD(SILVER),YWW(WHITE)

SPECIAL NOTE

Unavailable
