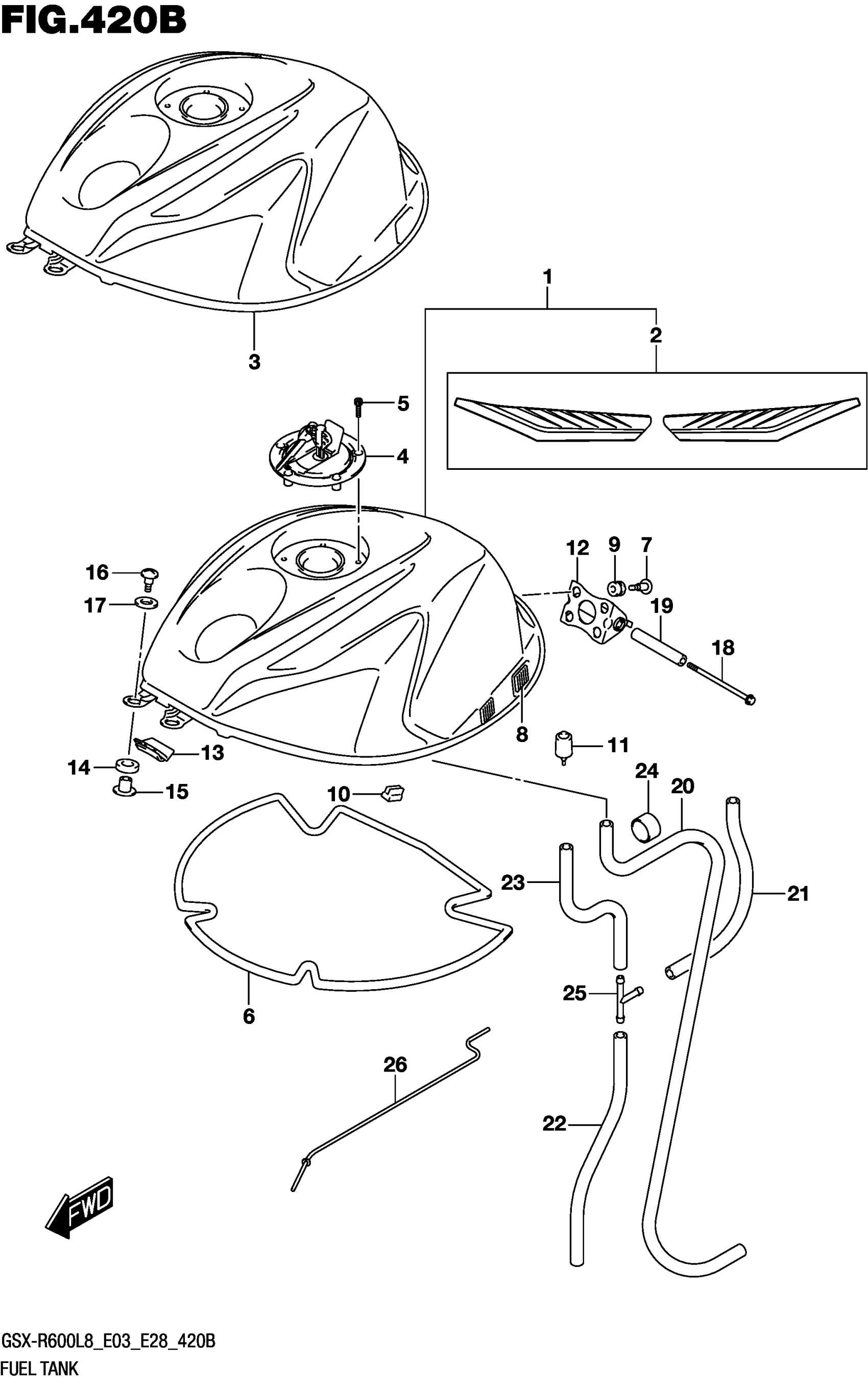

Suzuki GSX-R600L8 (2018) FUEL TANK (GSX-R600L8 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE)

44100-14JC0-YSF

$1,013.93

2

.TAPE SET, FUEL TANK | FOR YSF

68110-14J10-BDH

$80.52

2

(BLUE/WHITE)

68110-14J10-BDH

$80.52

3-1

TANK ASSY (GRAY) | FOR QEB

44100-14J32-QEB

$1,031.35

3-2

NO DESCRIPTION AVAILABLE | FOR BNE

44100-14J32YMD

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

5

BOLT

44244-11J00

$4.00

6

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

7

SCREW

44543-14J00

$7.05

8

FASTENER, COVER

44572-13G00

$11.07

9

CUSHION

09320-08071

$3.25

10

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

11

CUSHION,FUEL TANK RR

44542-41G00

$7.69

12

BRACKET,FUEL TANK

44530-41G01

$40.55

13

RUBBER,FUEL TANK FR

44546-44H00

$13.35

14

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

15

SPACER, TANK FRONT

44512-16G00

$7.44

16

SCREW (6X25)

09139-06192

$3.23

17

WASHER This part replaces 09160-06012.

09160-06054

$1.62

18

BOLT (6X110)

09106-06119

$5.76

19

SPACER, TANK REAR

44561-18G00

$16.96

20

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$20.78

21

HOSE,FUEL TANK BRTHR NO.1 This part replaces 44424-14J00.

44424-14J01

$9.62

22

HOSE,FUEL TANK BRTHR NO.2 This part replaces 44424-14J10.

44424-14J11

$8.88

23

HOSE,VACUUM | CUT AS REQUIRED This part replaces 44425-09E00.

44425-09E01

$11.28

24

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

25

3 WAY

09367-06007

$3.46

26

STAY, FUEL TANK | OPT

44574-35F00

$15.16

27

COLOR :

SPECIAL NOTE

Unavailable

27

BNE=YMD(SILVER),YWW(WHITE)

SPECIAL NOTE

Unavailable
