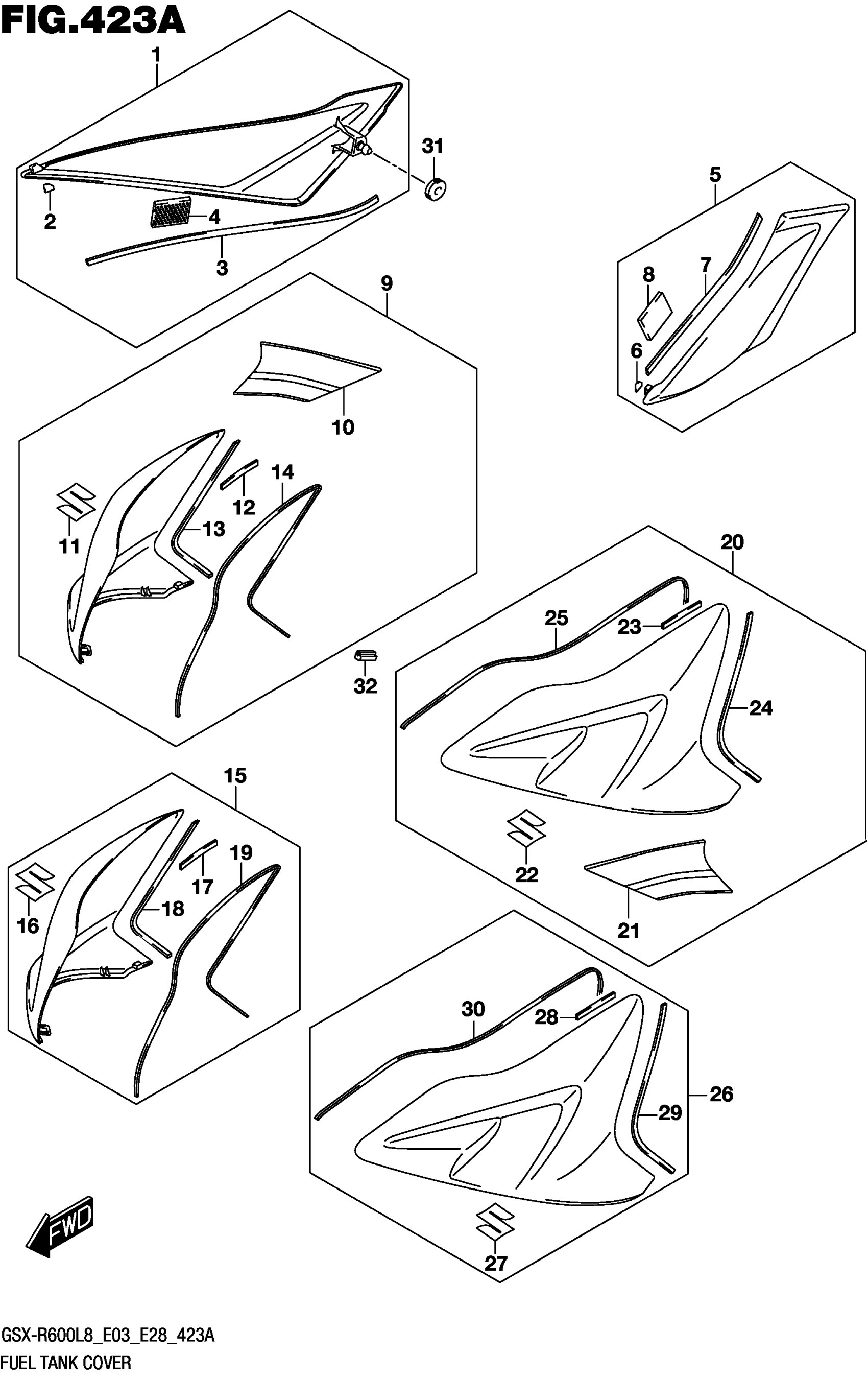

Suzuki GSX-R600L8 (2018) FUEL TANK COVER Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE,R

44170-14J00

$37.39

2

.CUSHION, FUEL TANK COVER

44172-14J00

$10.42

3

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

4

.FASTENER, COVER

44572-02F01

$10.13

5

COVER,FUEL TANK SIDE,L

44180-14J00

$37.39

6

.CUSHION, FUEL TANK COVER

44172-14J00

$10.42

7

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

8

.FASTENER, COVER

44572-02F01

$10.13

9

COVER, TANK FRONT RH (BLUE)

44270-14J60-YSF

$157.60

10

.TAPE SET, FUEL TANK COVER RH | FOR YSF

68125-14J10-BDH

$25.22

10

(BLUE/WHITE)

68125-14J10-BDH

$25.22

11

.EMBLEM, "S"

68111-47HA0

$37.02

12

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

13

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$17.16

14

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

15-1

COVER, TANK FRONT RH (GRAY) | FOR QEB

44270-14J20-QEB

$165.47

15-2

COVER, TANK FRONT RH (SILVER) | FOR BNE

44270-14J20-YMD

$165.47

16

.EMBLEM, "S"

68111-47HA0

$37.02

17

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

18

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$17.16

19

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

20

COVER, TANK FRONT LH (BLUE)

44280-14J60-YSF

$154.70

21

.TAPE SET, FUEL TANK COVER LH | FOR YSF

68126-14J10-BDH

$25.22

21

(BLUE/WHITE)

68126-14J10-BDH

$25.22

22

.EMBLEM, "S"

68111-47HA0

$37.02

23

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

24

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$17.16

25

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

26-1

COVER, TANK FRONT LH (GRAY) | FOR QEB

44280-14J20-QEB

$168.83

26-2

COVER, TANK FRONT LH (SILVER) | FOR BNE

44280-14J20-YMD

$168.83

27

.EMBLEM, "S"

68111-47HA0

$37.02

28

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$13.52

29

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$17.16

30

.CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

31

CUSHION, SIDE

44173-14J00

$3.92

32

CUSHION,FUEL TANK COVER FR This part replaces 44177-14J01.

44177-14J02

$2.80

33

COLOR :

SPECIAL NOTE

Unavailable

33

BNE=YMD(SILVER),YWW(WHITE)

SPECIAL NOTE

Unavailable
