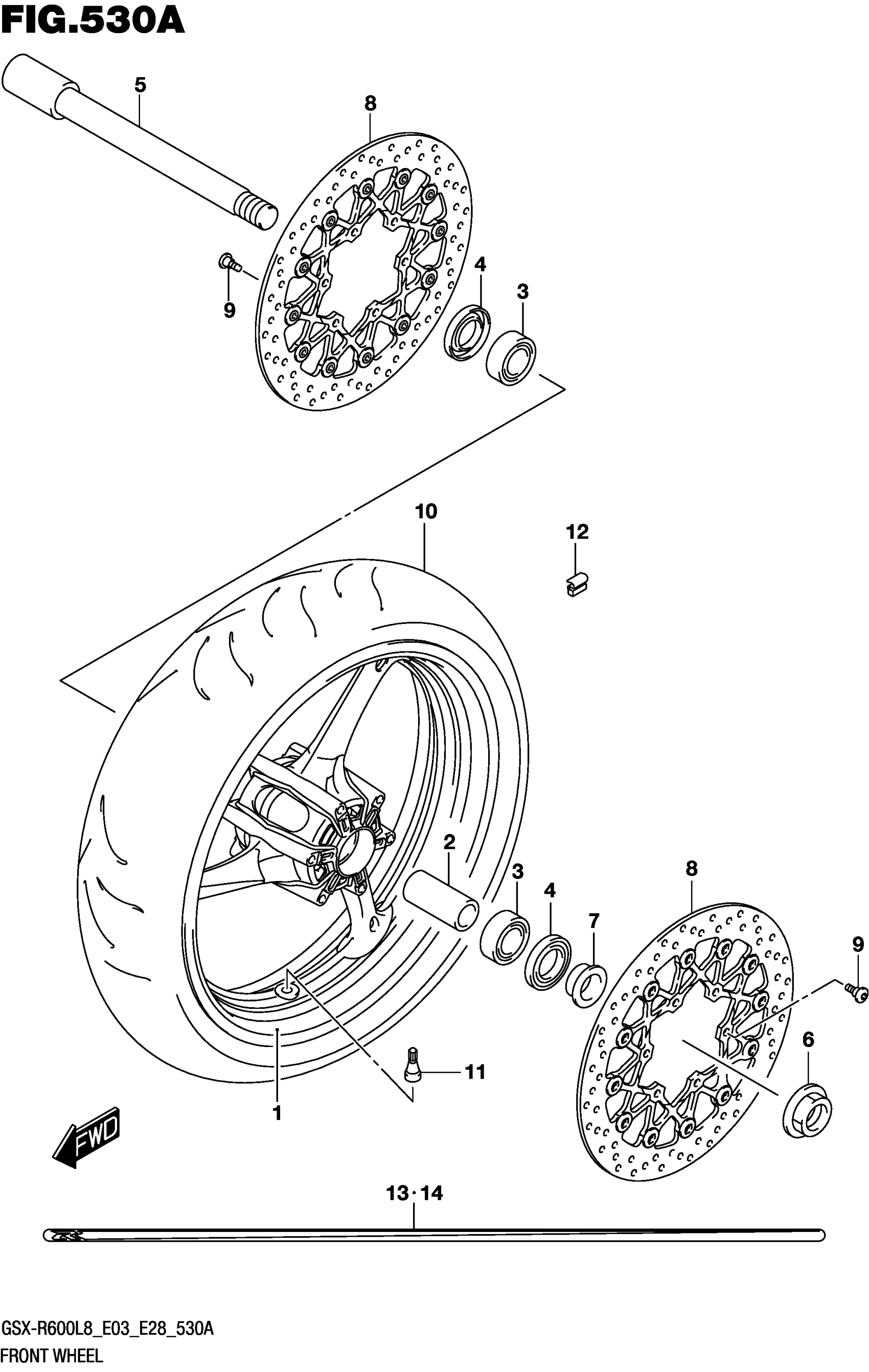

Suzuki GSX-R600L8 (2018) FRONT WHEEL Diagram

#

Description
Price

1-1

WHEEL, FRONT (17M/CXMT3.50) | FOR YSF

54111-14J00-019

$978.60

1-1

(BLACK)

54111-14J00-019

$978.60

1-2

WHEEL,FR (17M/CXMT3.50,RED) | FOR QEB

54111-14J00-QGY

$745.98

1-2

WHEEL,FR (17M/CXMT3.50,RED)

54111-14J00-QGY

$745.98

1-3

WHEEL, FRONT (17M/CXMT3.50) | FOR BNE

54111-14J00-12Z

$771.97

1-3

(SILVER)

54111-14J00-12Z

$771.97

2

SPACER, HUB BEARING

54731-14J00

$21.58

3

BEARING This part replaces 09262-22035.

09262-22049

$43.81

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$9.13

5

AXLE,FR

54711-14J00

$143.18

6

NUT, AXLE

62994-47H00

$42.02

7

SPACER,FR AXLE,L

54751-14J00

$18.33

8

DISC,FR BRAKE

59210-37H01

$477.18

9

BOLT (6X21)

09106-06124

$3.42

10

TIRE, FRONT

55110-14J00

$509.50

10

(120/70 ZR17M/C(58W) BATTLAX

55110-14J00

$509.50

10

BT016F BRIDGESTONE)

55110-14J00

$509.50

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

12-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

12-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

13

TAPE, RH (BLACK/ORANGE) | FOR YSF

68251-17K00-A29

$60.98

14

TAPE, LH (BLACK/ORANGE) | FOR YSF

68252-17K00-A29

$60.98

15

COLOR :

SPECIAL NOTE

Unavailable

15

BNE=YMD(SILVER),YWW(WHITE)

SPECIAL NOTE

Unavailable
