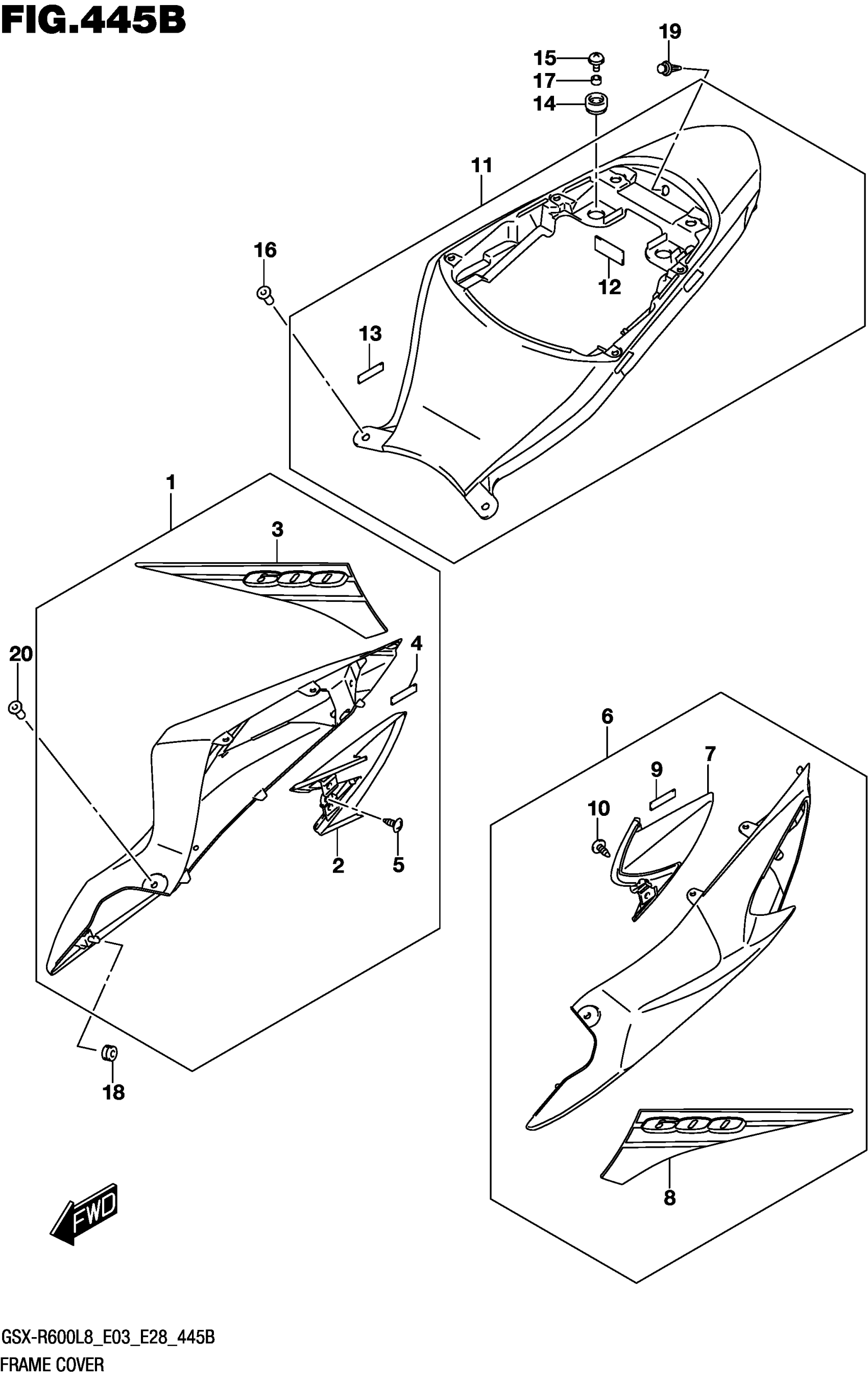

Suzuki GSX-R600L8 (2018) FRAME COVER (QEB,BNE) Diagram

#

Description
Price

1-1

COVER, FRAME RH (GRAY) | FOR QEB

47100-14J10-QEB

$124.78

1-2

COVER, FRAME RH (SILVER) | FOR BNE

47100-14J10-YMD

$124.78

2

COVER,FRAME RR,R

47611-14J00

$18.97

3-1

.EMBLEM, "600" (GRAY/BLACK) | FOR QEB

68131-14J00-BNS

$11.72

3-2

.EMBLEM, "600" (YELLOW/BLACK) | FOR BNE

68131-14J00-G7Z

Unavailable

4

.TAPE

94443-06G00

$3.25

5

.SCREW

03541-0512A

$1.49

6-1

COVER, FRAME LH (GRAY) | FOR QEB

47200-14J10-QEB

$124.97

6-2

COVER, FRAME LH (SILVER) | FOR BNE

47200-14J10-YMD

$124.78

7

COVER,FRAME RR,L

47621-14J00

$19.07

8-1

.EMBLEM, "600" (GRAY/BLACK) | FOR QEB

68131-14J00-BNS

$11.72

8-2

.EMBLEM, "600" (YELLOW/BLACK) | FOR BNE

68131-14J00-G7Z

Unavailable

9

.TAPE

94443-06G00

$3.25

10

.SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$97.78

12

.CUSHION

48128-14FA0

$6.47

13

.TAPE

94443-06G00

$3.25

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION

09320-06504

$4.96

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28

21

COLOR :

SPECIAL NOTE

Unavailable

21

BNE=YMD(SILVER),YWW(WHITE)

SPECIAL NOTE

Unavailable
