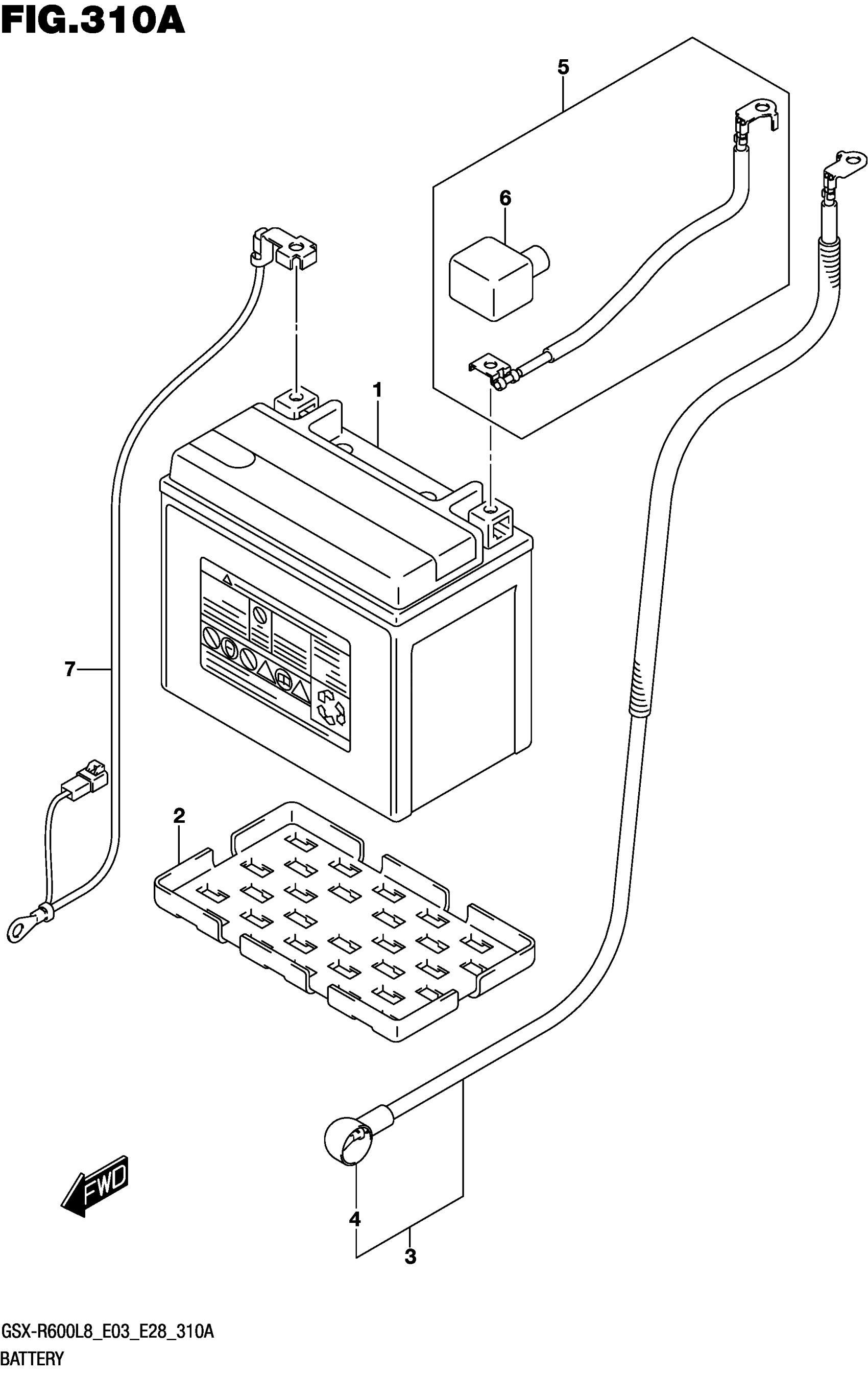

Suzuki GSX-R600L8 (2018) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33630-33E00.

33610-33E20

Unavailable

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

WIRE,STARTER MOTOR LEAD This part replaces 33810-14J00.

33810-14J01

$38.45

4

.CAP, STARTER MOTOR TERMINAL

33624-18H10

$9.90

5

WIRE,BATTERY PLUS LEAD This part replaces 33820-14J00.

33820-14J01

$21.92

6

.CAP, BATTERY PLUS

33624-16G00

$5.78

7

WIRE,BATTERY MINUS This part replaces 33860-14J00.

33860-14J01

$36.53
