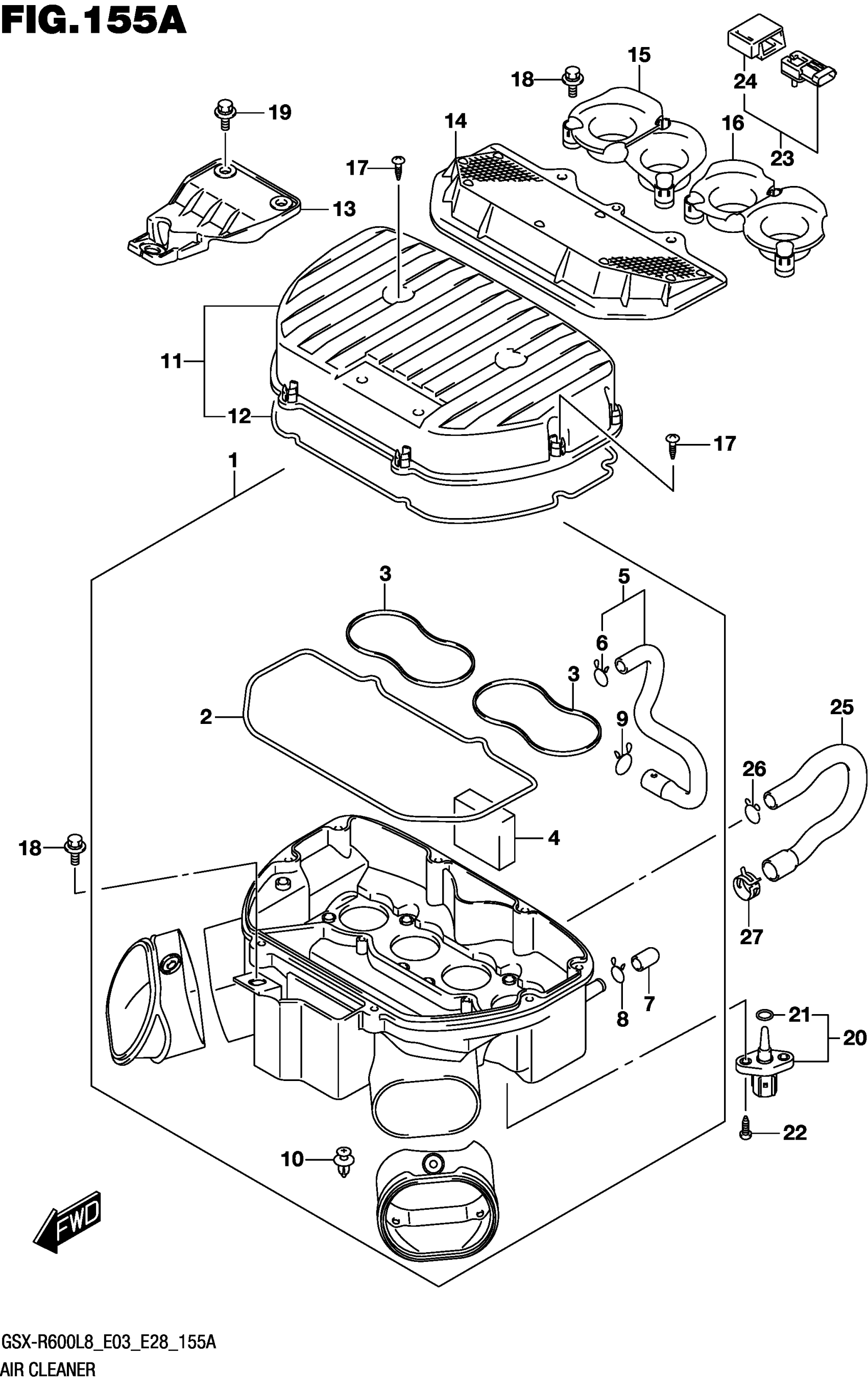

Suzuki GSX-R600L8 (2018) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANER This part replaces 13720-14J00.

13720-14J01

$246.67

2

.GASKET, CASE

13756-14J00

$6.83

3

.GASKET, CASE

13757-14J00

$6.01

4

.FILTER BREATHER

13788-14J00

$7.77

5

.TUBE,BREATHER This part replaces 13850-14J00.

13850-14J01

$31.85

6

..CLIP

09401-15101

$2.28

7

.PLUG This part replaces 13878-10G00.

13878-10G01

$6.53

8

.CLIP

09401-14301

$2.17

9

.CLIP

09401-17201

$3.42

10

.CLIP (BLACK)

09409-07305-5PK

$2.30

11

CAP, AIR CLEANER

13740-14J00

$84.55

12

.GASKET, CAP

13746-14J00

$14.55

13

HOLDER,AIR CLEANER

13760-14J00

$21.23

14

FILTER ASSY

13780-14J00

$38.02

15

.FUNNEL,OUTLET RH

13881-14J00

$43.50

16

FUNNEL,OUTLET LH

13882-14J00

$43.50

17

SCREW

03541-0520A

$1.81

18

BOLT, AIR CLEANER CASE

13831-47H00

$7.73

19

BOLT (6X16)

09111-06089

$2.61

20

SENSOR, AIR TEMPERATURE

13650-14G10

$47.66

21

.O RING

13655-14G10

$11.18

22

SCREW

03511-0516A

$1.88

23

SENSOR, AIR PRESSURE

15630-29G10

$304.30

24

.COVER

15625-29G00

$14.00

25

HOSE, ISC VALVE

13697-14J00

$23.17

26

CLIP

09401-15101

$2.28

27

CLIP

09401-17401

$1.01
