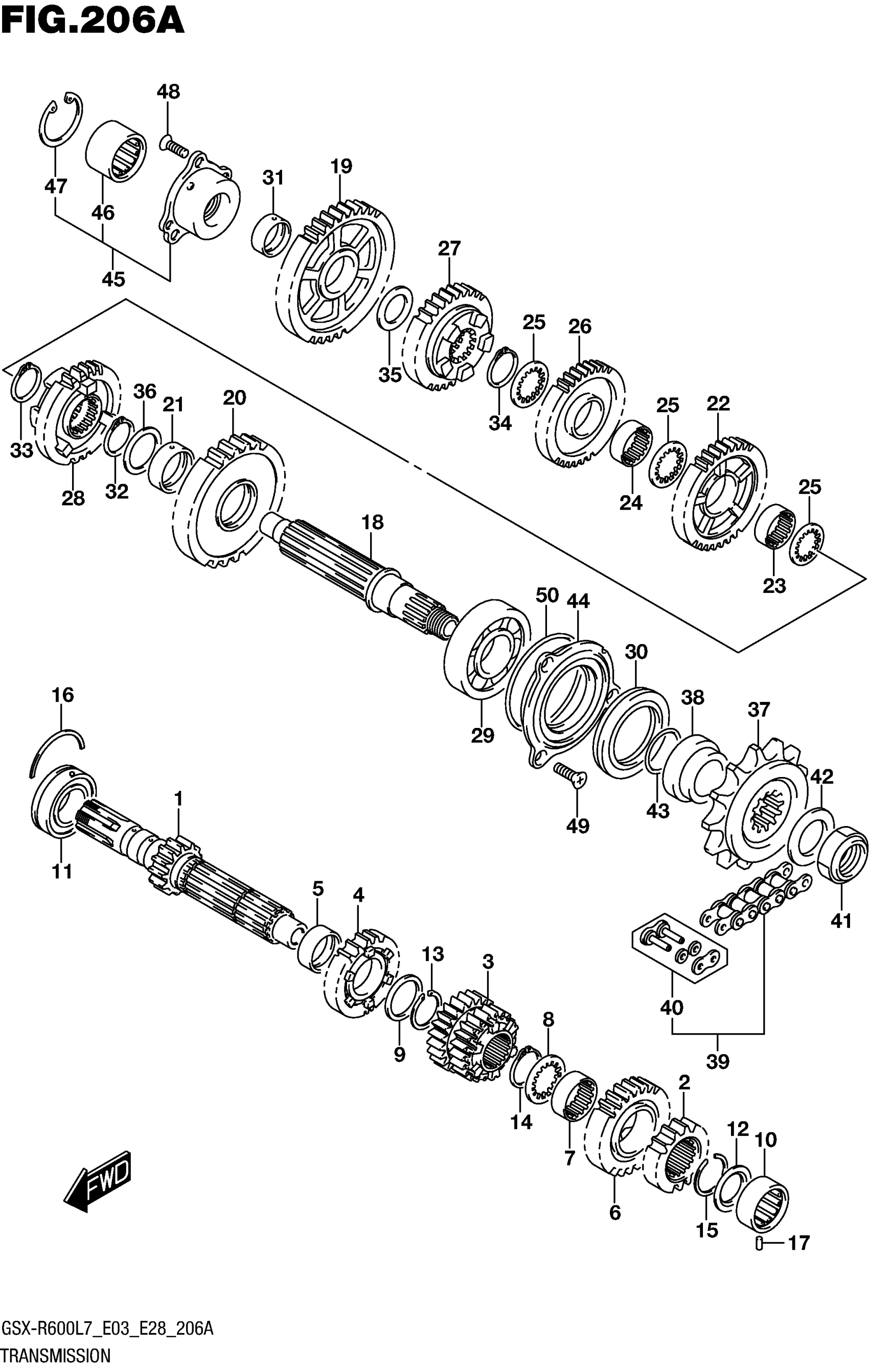

Suzuki GSX-R600L7 (2017) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:16)

24120-14J00

$330.40

2

GEAR, 2ND DRIVE (NT:19)

24221-14J00

Unavailable

3

GEAR, 3RD & 4TH (NT:21/23)

24231-14J00

$211.72

4

GEAR, 5TH DRIVE (NT:23)

24251-01H00

$168.55

5

BUSH 5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR, 6TH DRIVE (NT:26)

24261-14J00

Unavailable

7

BUSH, 6TH DRIVE GEAR

24262-35F10

$28.70

8

LOCK WASHER

09167-27001

$3.63

9

WASHER (27X36X1)

09160-27008

$3.68

10

BEARING (20X34X13.5) | LH

09263-20087

$42.65

11

BEARING (25X62X17) | RH

09262-25150

$82.62

12

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP

09380-27006

$2.73

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27004

$3.70

16

C RING

09390-62012

$7.31

17

PIN (6X10) | LH

09261-06003

$1.49

18

SHAFT,DRIVE

24131-14J00

$326.27

19

GEAR, 1ST DRIVEN (NT:43)

24311-14J00

$166.88

20

GEAR, 2ND DRIVEN (NT40)

24321-14J00

$166.88

21

BUSH, 2ND DRIVEN

24322-35F00

$20.63

22

GEAR, 3RD DRIVEN (NT:37)

24331-14J00

$171.00

23

BUSH,3RD DRIVEN GEAR

24332-46H00

$38.95

24

BUSH,3RD DRIVEN GEAR

24332-46H00

$38.95

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$4.99

26

GEAR, 4TH DRIVEN (NT:35)

24341-14J00

$175.18

27

GEAR, 5TH DRIVEN (NT:31)

24351-01H01

Unavailable

28

GEAR, 6TH DRIVEN (NT:32)

24361-14J00

$161.23

29

BEARING (28X68X18) | LH

09262-28045

$104.23

30

OIL SEAL (42X62X7)

09283-42018

$36.39

31

BUSH (22X26X9)

09300-22008

$14.82

32

CIRCLIP

09380-27006

$2.73

33

CIRCLIP

09380-27006

$2.73

34

CIRCLIP

09380-27006

$2.73

35

SHIM (22X34X1) | LH

09181-22223

$3.12

36

WASHER (27X36X1)

09160-27008

$3.68

37

SPROCKET, ENGINE (NT:16)

27510-20A10

$72.72

38

SPACER,ENGINE SPROCKET

27531-14J00

$41.45

39

CHAIN ASSY (RK525SM0Z8)

27600-06G40-114

$201.02

40

.JOINT SET,DRIVE CHAIN

27620-06G40

$21.10

41

NUT

09159-20004

$15.67

42

WASHER (25X41X3)

09160-25009

$5.36

43

O RING (D:2.4,ID:23.7)

09280-24010

$5.64

44

RETAINER,DRIVE SHAFT BEARING,

24751-14J00

$119.18

45

HOUSING, DRIVE SHAFT SET

24771-01810

$166.88

46

.BEARING (20X34X17.5)

09263-20069

$52.12

47

.CIRCLIP

08331-41349

$2.73

48

SCREW (6X20)

09139-06159

$4.10

49

SCREW (6X20)

09139-06159

$4.10

50

O RING (D:1.8,ID:67.5)

09280-68010

$14.18
