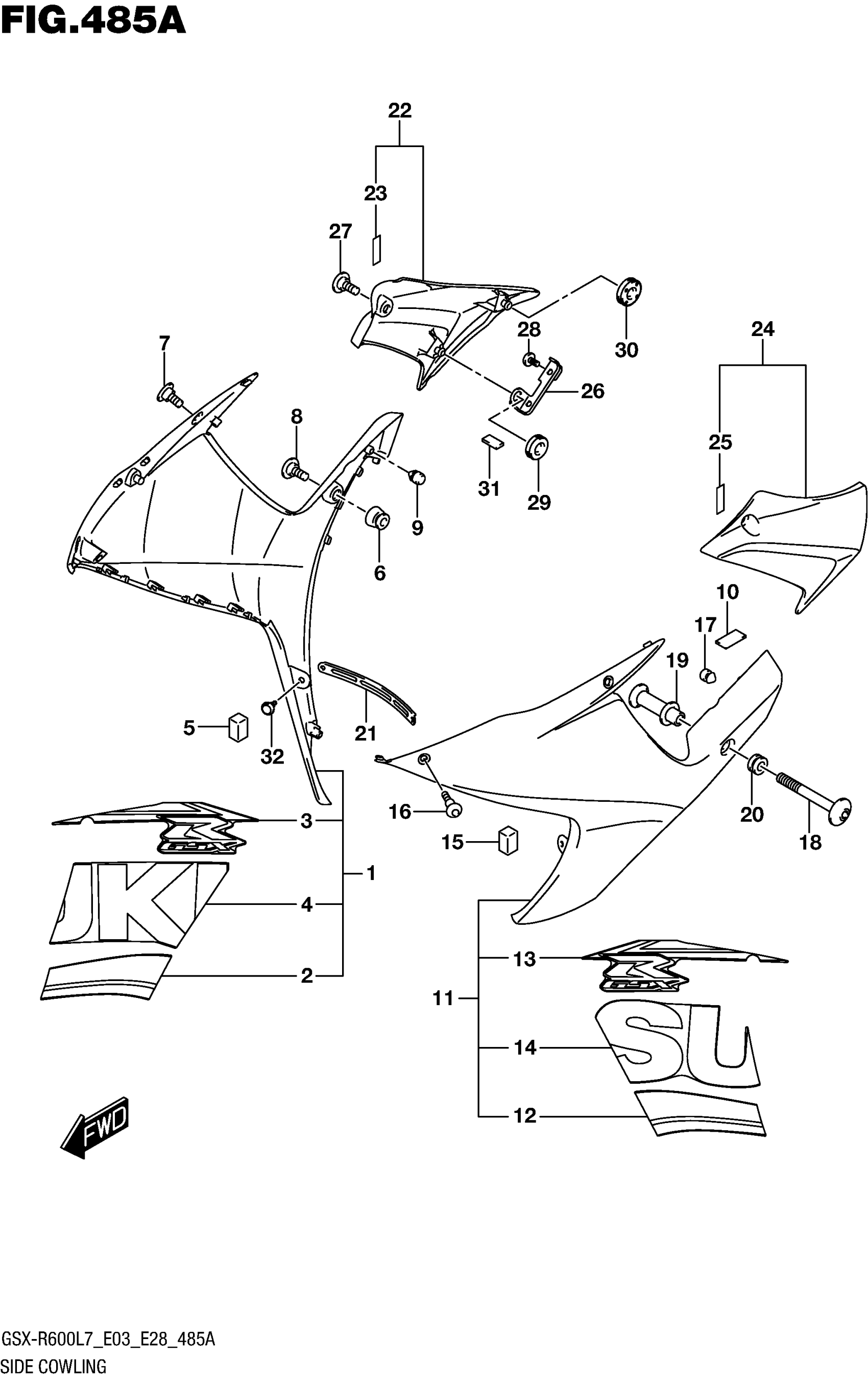

Suzuki GSX-R600L7 (2017) SIDE COWLING (YSF) Diagram

#

Description
Price

1

COWLING, SIDE RH (BLUE)

94450-14J90-YSF

$465.13

2

.TAPE, SIDE COWLING LOWER RH | FOR YSF

68685-14JA0-BDH

$32.90

2

(BLUE/WHITE)

68685-14JA0-BDH

$32.90

3

.TAPE, SIDE COWLING UPPER RH | FOR YSF

68685-14J80-BDJ

$42.98

3

(BLUE/WHITE)

68685-14J80-BDJ

$42.98

4

.TAPE SIDE COWLING | FOR YSF

68685-14J90-AGQ

$37.67

4

(BLUE/WHITE)

68685-14J90-AGQ

$37.67

5

CUSHION,SIDE COWL FR

94477-14J01

$12.91

6

CUSHION, SIDE COWLING

94479-15H00

$4.48

7

SCREW (5X13)

09139-05064

$2.57

8

BOLT (6X20)

09139-06190

$4.17

9

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

10

PROTECTOR, SIDE COWLING LH | CUT AS REQUIRED

44543-10G00

$5.56

11

COWLING, SIDE LH (BLUE)

94460-14J90-YSF

$465.13

12

.TAPE, SIDE COWLING LOWER LH | FOR YSF

68695-14JA0-BDH

$32.90

12

(BLUE/WHITE)

68695-14JA0-BDH

$32.90

13

.TAPE, SIDE COWLING UPPER LH | FOR YSF

68695-14J80-BDJ

$42.98

13

(BLUE/WHITE)

68695-14J80-BDJ

$42.98

14

.TAPE SIDE COWLING | FOR YSF

68695-14J90-AGQ

$37.67

14

(BLUE/WHITE)

68695-14J90-AGQ

$37.67

15

CUSHION,SIDE COWL FR

94477-14J01

$12.91

16

SCREW (5X13)

09139-05064

$2.57

17

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

18

SCREW,SIDE COWL,L

94488-14J00

$3.70

19

SPACER,SIDE COWL,L

94489-14J00

$11.37

20

CUSHION

09320-09016

$1.97

21

PLATE,UNDER COWL CTR

94498-14J00

$17.80

22

COVER,SIDE COWLING,R

94570-14J00

$18.88

23

.TAPE (6X25X0.13)

94443-06G00

$3.25

24

COVER,SIDE COWLING,L

94580-14J00

$18.88

25

.TAPE (6X25X0.13)

94443-06G00

$3.25

26

BRACKET,COVER SIDE,R

94491-14J00

$10.00

27

SCREW (5X13)

09139-05064

$2.57

28

SCREW (6X12)

09139-06062

$3.03

29

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

30

CUSHION

09320-08028

$3.04

31

CUSHION, BRACKET COVER RH

94612-31F00

$4.98

32

CLIP, UNDER CTR

94479-35F00

$5.62
