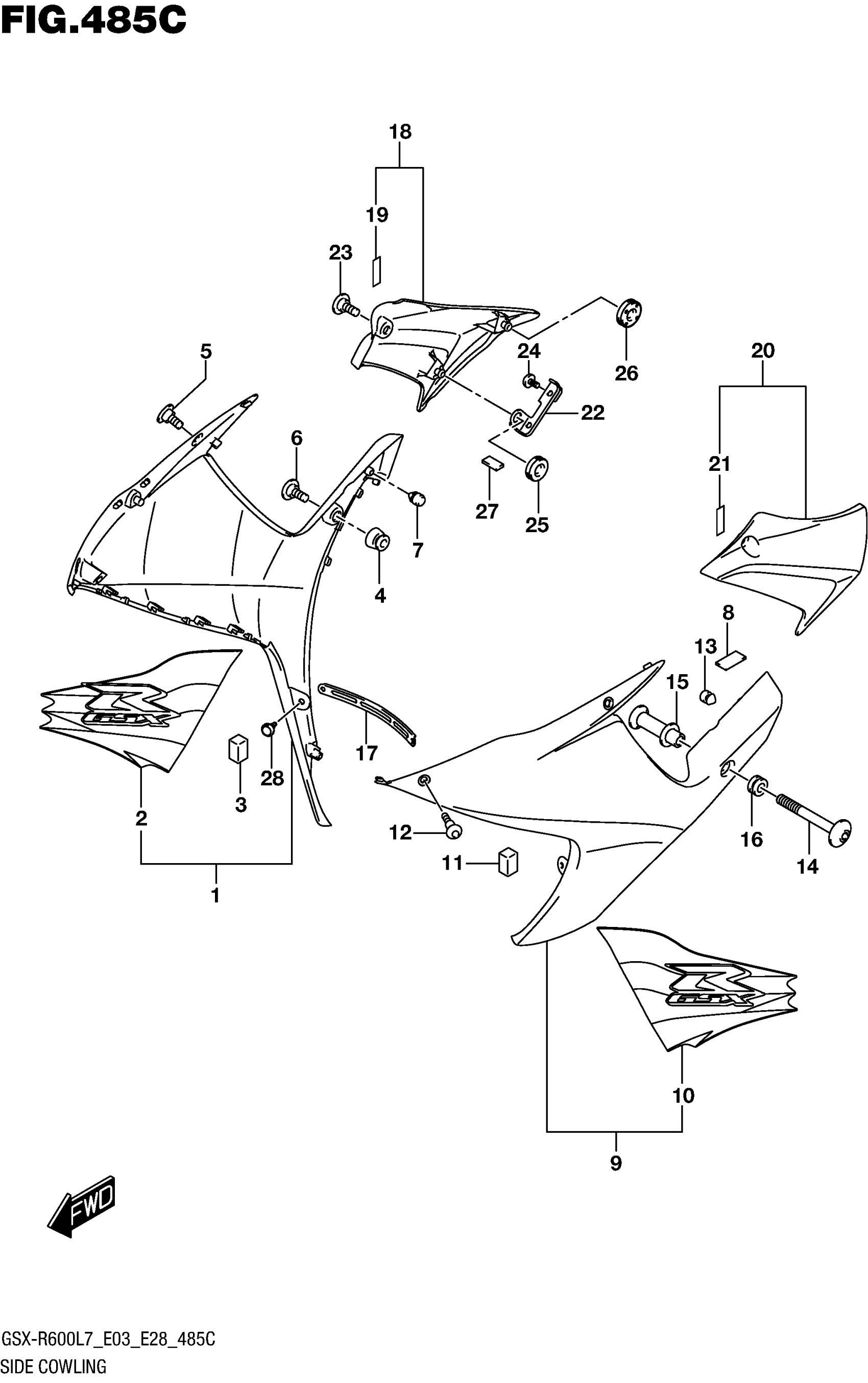

Suzuki GSX-R600L7 (2017) SIDE COWLING (KGK) Diagram

#

Description
Price

1

COWLING, SIDE RH (BLACK) | FOR KGK

94450-15J50-YVB

$501.60

2

.TAPE SET, SIDE COWLING RH | FOR YVB

68685-14J70-BE6

$52.85

2

(GRAY/WHITE)

68685-14J70-BE6

$52.85

3

CUSHION,SIDE COWL FR

94477-14J01

$12.91

4

CUSHION, SIDE COWLING

94479-15H00

$4.48

5

SCREW (5X13)

09139-05064

$2.57

6

BOLT (6X20)

09139-06190

$4.17

7

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

8

PROTECTOR, SIDE COWLING LH | CUT AS REQUIRED

44543-10G00

$5.56

9

COWLING, SIDE LH (BLACK) | FOR KGK

94460-15J50-YVB

$501.60

10

.TAPE SET, SIDE COWLING LH | FOR YVB

68695-14J70-BE6

$52.85

10

(GRAY/WHITE)

68695-14J70-BE6

$52.85

11

CUSHION,SIDE COWL FR

94477-14J01

$12.91

12

SCREW (5X13)

09139-05064

$2.57

13

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

14

SCREW,SIDE COWL,L

94488-14J00

$3.70

15

SPACER,SIDE COWL,L

94489-14J00

$11.37

16

CUSHION

09320-09016

$1.97

17

PLATE,UNDER COWL CTR

94498-14J00

$17.80

18

COVER,SIDE COWLING,R

94570-14J00

$18.88

19

.TAPE (6X25X0.13)

94443-06G00

$3.25

20

COVER,SIDE COWLING,L

94580-14J00

$18.88

21

.TAPE (6X25X0.13)

94443-06G00

$3.25

22

BRACKET,COVER SIDE,R

94491-14J00

$10.00

23

SCREW (5X13)

09139-05064

$2.57

24

SCREW (6X12)

09139-06062

$3.03

25

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

26

CUSHION

09320-08028

$3.04

27

CUSHION, BRACKET COVER RH

94612-31F00

$4.98

28

CLIP, UNDER CTR

94479-35F00

$5.62

29

COLOR :

SPECIAL NOTE

Unavailable

29

KGK=YMF(YELLOW),YVB(BLACK)

SPECIAL NOTE

Unavailable
