2017 Suzuki GSX-R600L7 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2017 Suzuki GSX-R600L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

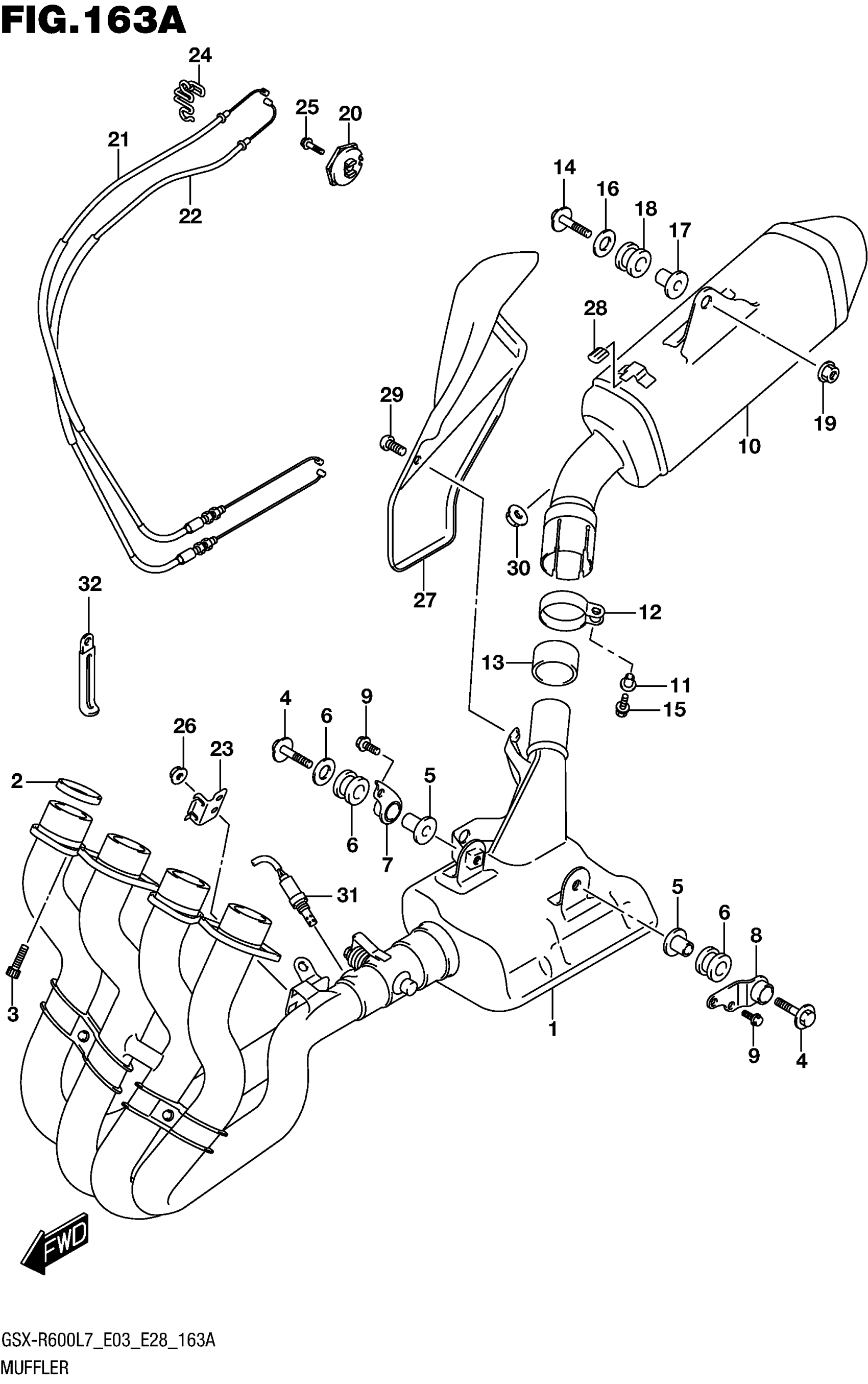

2017 Suzuki GSX-R600L7 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST

14100-14J00

1
Out of stock

2

GASKET, EXHAUST PIPE

14181-46E10

4
Out of stock

3

BOLT

07130-0825A

8
Out of stock

4

BOLT (8X45)

09118-08152-A05

2
Out of stock

5

SPACER (8.6X12X24.2)

09180-08152

2
Out of stock

6

CUSHION

09320-12077

2
Out of stock

7

BRACKET,CHAMBER SPRT,R

14770-14J00

1
Out of stock

8

BRACKET,CHAMBER SPRT,L

14773-14J00

1
Out of stock

9

BOLT (8X16)

01550-0816A

3
Out of stock

10

BODY,MUFFLER

14310-14J00-H01

1
Out of stock

11

SPACER,MUF CLAMP

14458-14J00

1
Out of stock

12

CLAMP,MUF CONN

14459-21H40

1
Out of stock

13

CONNECTOR, MUFFLER

14771-42F10

1
Out of stock

14

BOLT (8X45)

09103-08358

1
Out of stock

15

BOLT (8X40)

09103-08392

1
Out of stock

16

WASHER (8.5X28X1.5)

09160-08142

1
Out of stock

17

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

18

CUSHION

09320-12048

1
Out of stock

19

NUT

08361-2508A

1

$2.10

In stock

20

PULLEY, CONTROLLER

11269-18G01

1

$32.50

In stock

21

CABLE,EXH VALVE NO.1

11276-14J00

1
Out of stock

22

CABLE,EXH VALVE NO.2

11277-14J00

1
Out of stock

23

BRACKET, EXH VALVE CABLE

14250-21H00

1
Out of stock

24

GUIDE, EXH VALVE CABLE

14252-14J00

1
Out of stock

25

BOLT

01547-0516A

1
Out of stock

26

NUT

08316-1006A

1
Out of stock

27

COVER,MUFFLER FR

14780-14J00

1
Out of stock

28

GROMMET

14795-10FA0

1
Out of stock

29

SCREW (6X10)

09139-06172

1
Out of stock

30

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

31

SENSOR, OXYGEN

18213-23H01

1
Out of stock

32

CLAMP (L:45)

09404-06429

1
Out of stock
