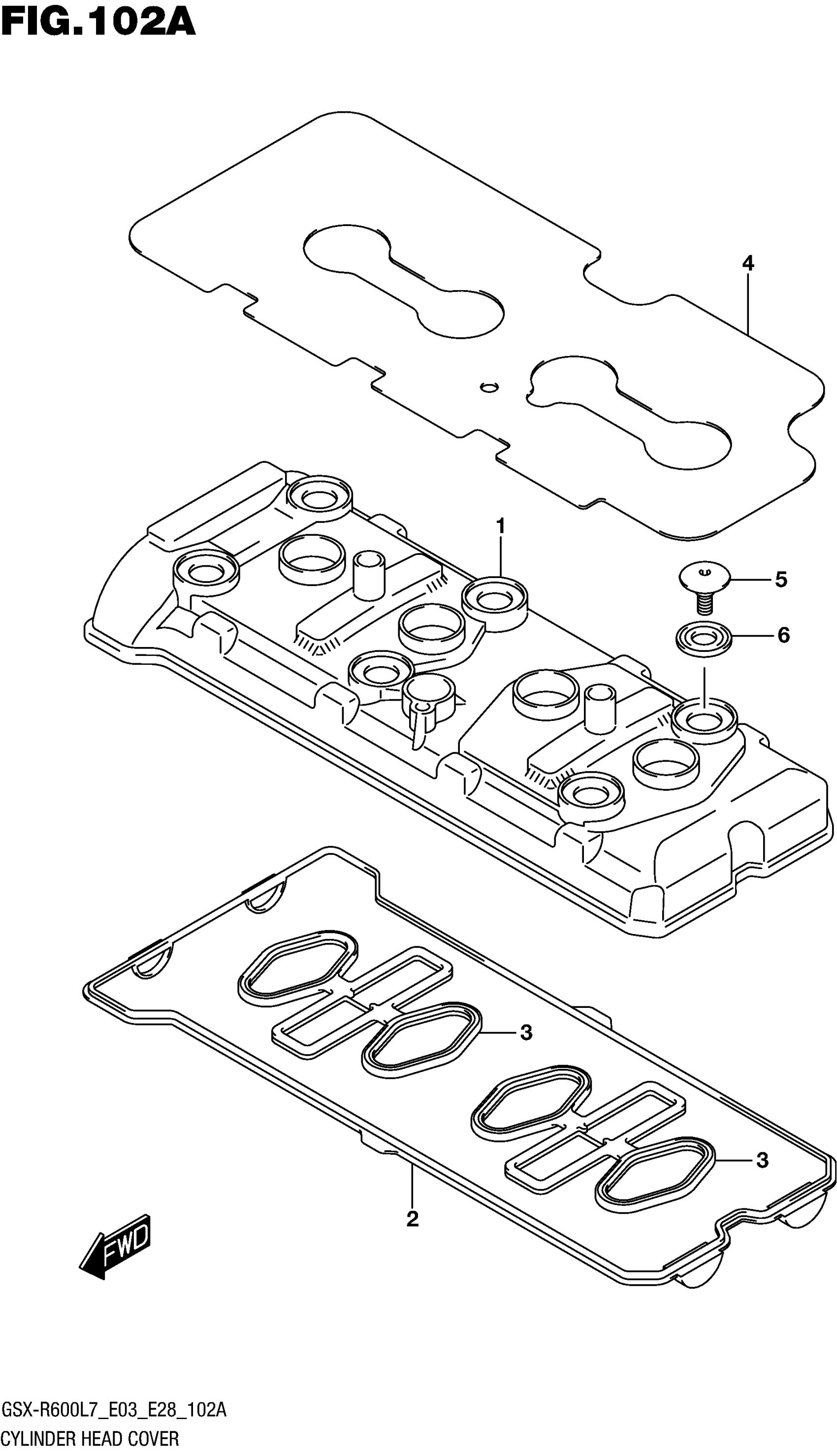

Suzuki GSX-R600L7 (2017) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER,CYLINDER HEAD

11171-01H00

$500.10

2

GASKET, CYL HEAD COVER NO.1

11173-01H00

$40.74

3

GASKET, CYL HEAD COVER NO.2

11178-01H00

$7.56

4

SHIELD, CYLINDER HEAD COVER

11179-37H00

$34.37

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.07

6

WASHER

11191-27E00

$3.72
