2017 Suzuki GSX-R600L7 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2017 Suzuki GSX-R600L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

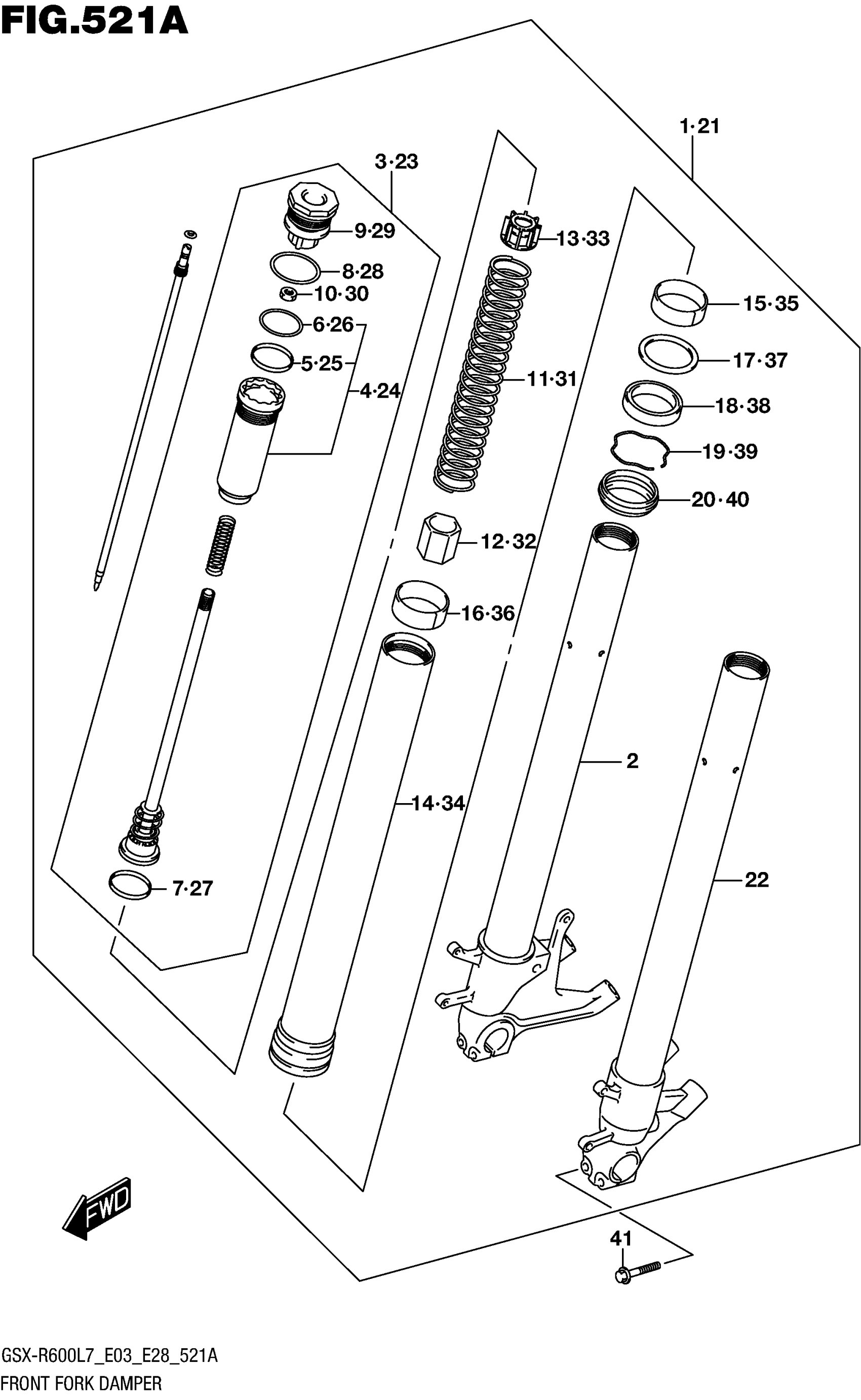

2017 Suzuki GSX-R600L7 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER FRONT,RH This part replaces 51103-14J10.

51103-14J11

1
Out of stock

2

.TUBE,INNER,R

51110-14J00

1
Out of stock

3

.ROD, PISTON

52110-14J00

1
Out of stock

4

..CASE, ROD GUIDE

51174-14J00

1
Out of stock

5

...PISTON RING

51118-14J10

1
Out of stock

6

...O-RING

51187-14J00

1
Out of stock

7

..RING, PISTON

51118-14J00

1
Out of stock

8

..O-RING,FORK BOLT

51187-01H00

1
Out of stock

9

..BOLT

51189-14J00

1
Out of stock

10

..NUT

51827-29G00

1
Out of stock

11

.SPRING

51171-14J10

1
Out of stock

12

.COLLAR, SPRING

51176-14J10

1
Out of stock

13

.COLLAR, SPRING

51175-14J00

1
Out of stock

14

.TUBE, OUTER

51131-14J00

1
Out of stock

15

.BUSH, GUIDE

51152-01H10

1
Out of stock

16

.BUSH, SLIDE

51152-14J00

1
Out of stock

17

.SPACER, SEAL

51168-38B00

1
Out of stock

18

.OIL SEAL

51153-01H10

1
Out of stock

19

.RING, STOPPER

51556-38B00

1
Out of stock

20

.DUST SEAL

51173-01H00

1
Out of stock

21

DAMPER FRONT,LH This part replaces 51104-14J10.

51104-14J11

1
Out of stock

22

.TUBE,INNER,L

51120-14J00

1
Out of stock

23

.ROD, PISTON

52110-14J00

1
Out of stock

24

..CASE, ROD GUIDE

51174-14J00

1
Out of stock

25

...PISTON RING

51118-14J10

1
Out of stock

26

...O-RING

51187-14J00

1
Out of stock

27

..RING, PISTON

51118-14J00

1
Out of stock

28

..O-RING,FORK BOLT

51187-01H00

1
Out of stock

29

..BOLT

51189-14J00

1
Out of stock

30

..NUT

51827-29G00

1
Out of stock

31

.SPRING

51171-14J10

1
Out of stock

32

.COLLAR, SPRING

51176-14J10

1
Out of stock

33

.COLLAR, SPRING

51175-14J00

1
Out of stock

34

.TUBE, OUTER

51131-14J00

1
Out of stock

35

.BUSH, GUIDE

51152-01H10

1
Out of stock

36

.BUSH, SLIDE

51152-14J00

1
Out of stock

37

.SPACER, SEAL

51168-38B00

1
Out of stock

38

.OIL SEAL

51153-01H10

1
Out of stock

39

.RING, STOPPER

51556-38B00

1
Out of stock

40

.DUST SEAL

51173-01H00

1
Out of stock

41

BOLT

51321-36F00

4
Out of stock
