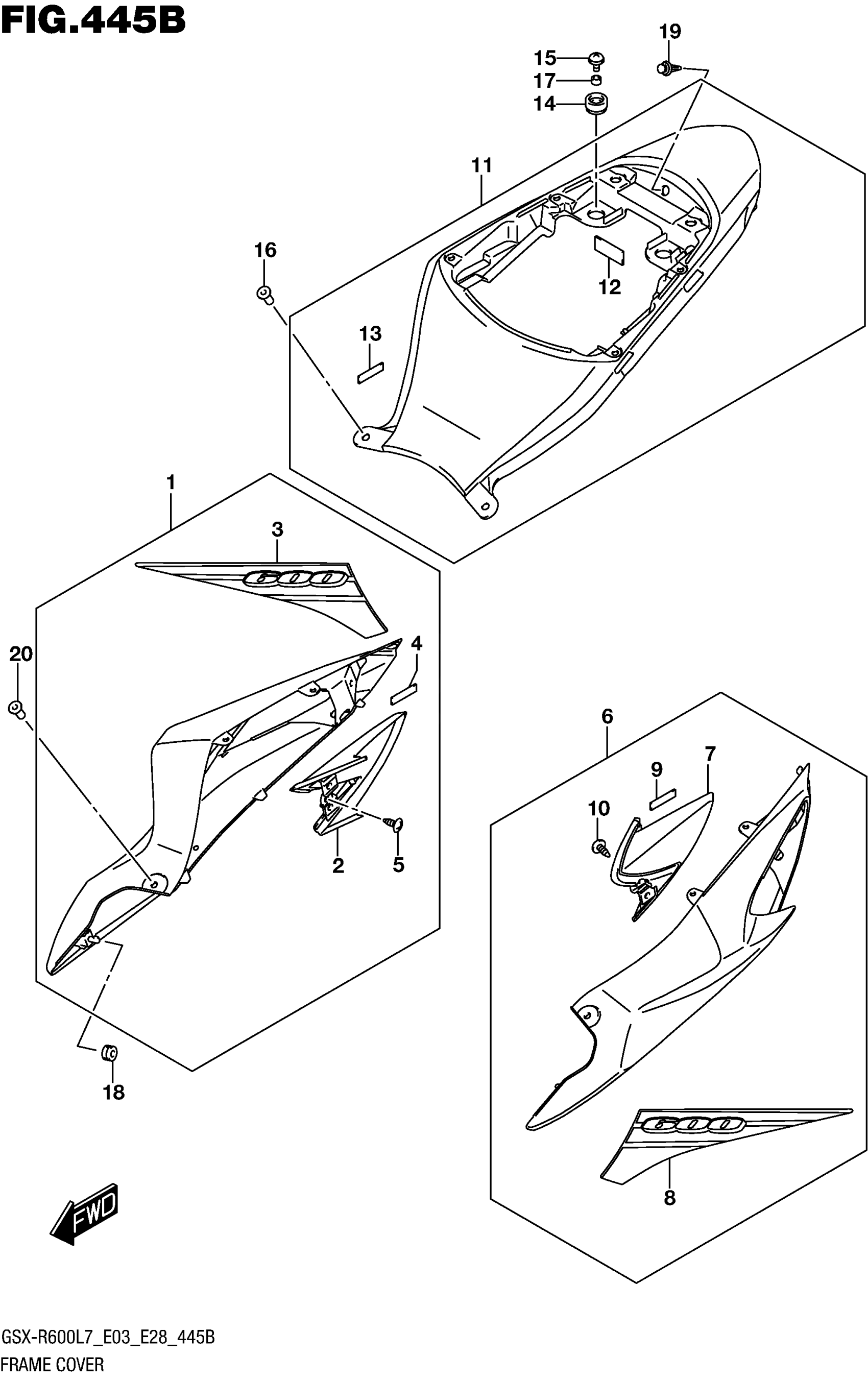

Suzuki GSX-R600L7 (2017) FRAME COVER (YKV,KGK) Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK) | FOR YKV

47100-14J10-YKV

$118.87

1-2

COVER, FRAME RH (YELLOW) | FOR KGK

47100-14J10-YMF

$121.10

2

COVER,FRAME RR,R

47611-14J00

$18.97

3-1

.EMBLEM, "600" (RED/BLACK) | FOR YKV

68131-14J00-A82

$11.60

3-2

.EMBLEM, "600" (GRAY/BLACK) | FOR YMF

68131-14J00-AA3

$11.60

4

.TAPE

94443-06G00

$3.25

5

.SCREW

03541-0512A

$1.49

6-1

COVER, FRAME LH (BLACK) | FOR YKV

47200-14J10-YKV

$116.65

6-2

COVER, FRAME LH (YELLOW) | FOR KGK

47200-14J10-YMF

$118.87

7

COVER,FRAME RR,L

47621-14J00

$19.07

8-1

.EMBLEM, "600" (RED/BLACK) | FOR YKV

68131-14J00-A82

$11.60

8-2

.EMBLEM, "600" (GRAY/BLACK) | FOR KGK

68131-14J00-AA3

$11.60

9

.TAPE

94443-06G00

$3.25

10

.SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$97.78

12

.CUSHION

48128-14FA0

$6.47

13

.TAPE

94443-06G00

$3.25

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION

09320-06504

$4.96

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28

21

COLOR :

SPECIAL NOTE

Unavailable

21

KGK=YMF(YELLOW),YVB(BLACK)

SPECIAL NOTE

Unavailable
