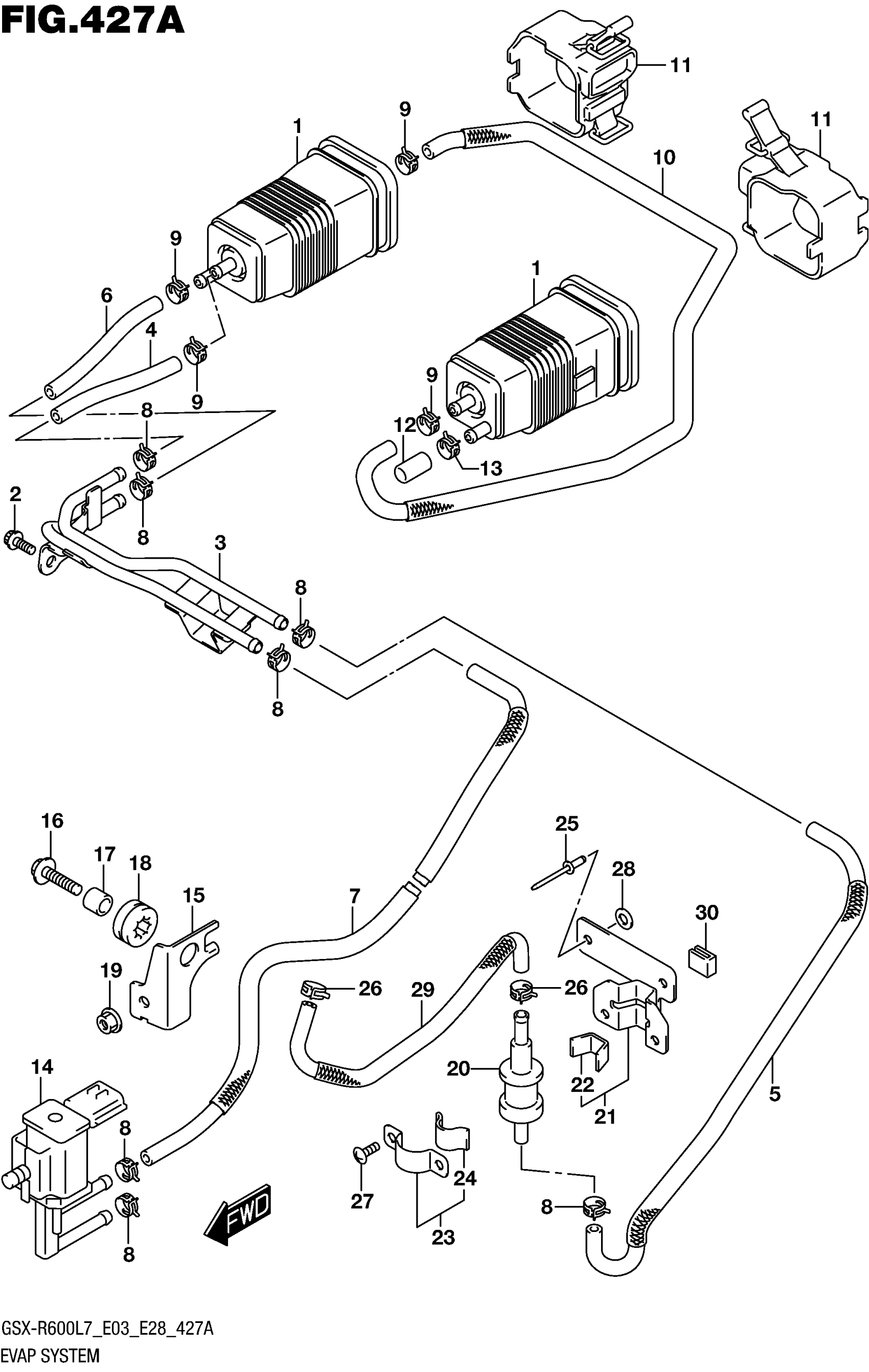

Suzuki GSX-R600L7 (2017) EVAP SYSTEM (GSX-R600L7 E33) Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL

18560-14J00

$220.03

2

BOLT

07120-0612A

$2.50

3

PIPE,EVAP

18340-14J00

Unavailable

4

HOSE,SURGE NO.1

18561-14J00

Unavailable

5

HOSE,SURGE NO.2

18562-14J00

Unavailable

6

HOSE,PURGE NO.1

18563-14J00

Unavailable

7

HOSE,PURGE NO.2

18564-14J00

Unavailable

8

CLIP (ID:10.5,H:8)

09401-10409

$2.26

9

CLIP

09401-12404

$2.34

10

HOSE,CANISTER JOINT

18565-14J00

Unavailable

11

CUSHION,CANISTER

18572-14J00

$23.95

12

CAP

09251-07003

$2.53

13

CLIP

09401-11413

$2.26

14

VALVE,CANISTER PURGE

18117-52G00

$149.32

15

BRACKET,PURGE VALVE

18571-14J00

Unavailable

16

BOLT (6X30)

09116-06203

$3.14

17

SPACER (6.5X10X11.6)

09180-06319

$3.85

18

CUSHION

09320-10055

$4.50

19

NUT

08316-1006A

$2.19

20

VALVE,FUEL TANK BRTHR

44240-38A00

$61.15

21

PLATE COMP,BRTHR VALVE

44890-47H00

Unavailable

22

CUSHION (10X30X2)

44894-24A00

$1.72

23

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

24

CUSHION (10X30X2)

44894-24A00

$1.72

25

RIVET

09229-04038

$1.49

26

CLIP

09401-11413

$2.26

27

SCREW

02142-0408A

$1.55

28

WASHER

08322-0104A

$1.91

29

HOSE, TANK & BREATHER VALVE

44434-37H00

Unavailable

30

CUSHION (10X30X2)

44894-24A00

$1.72
