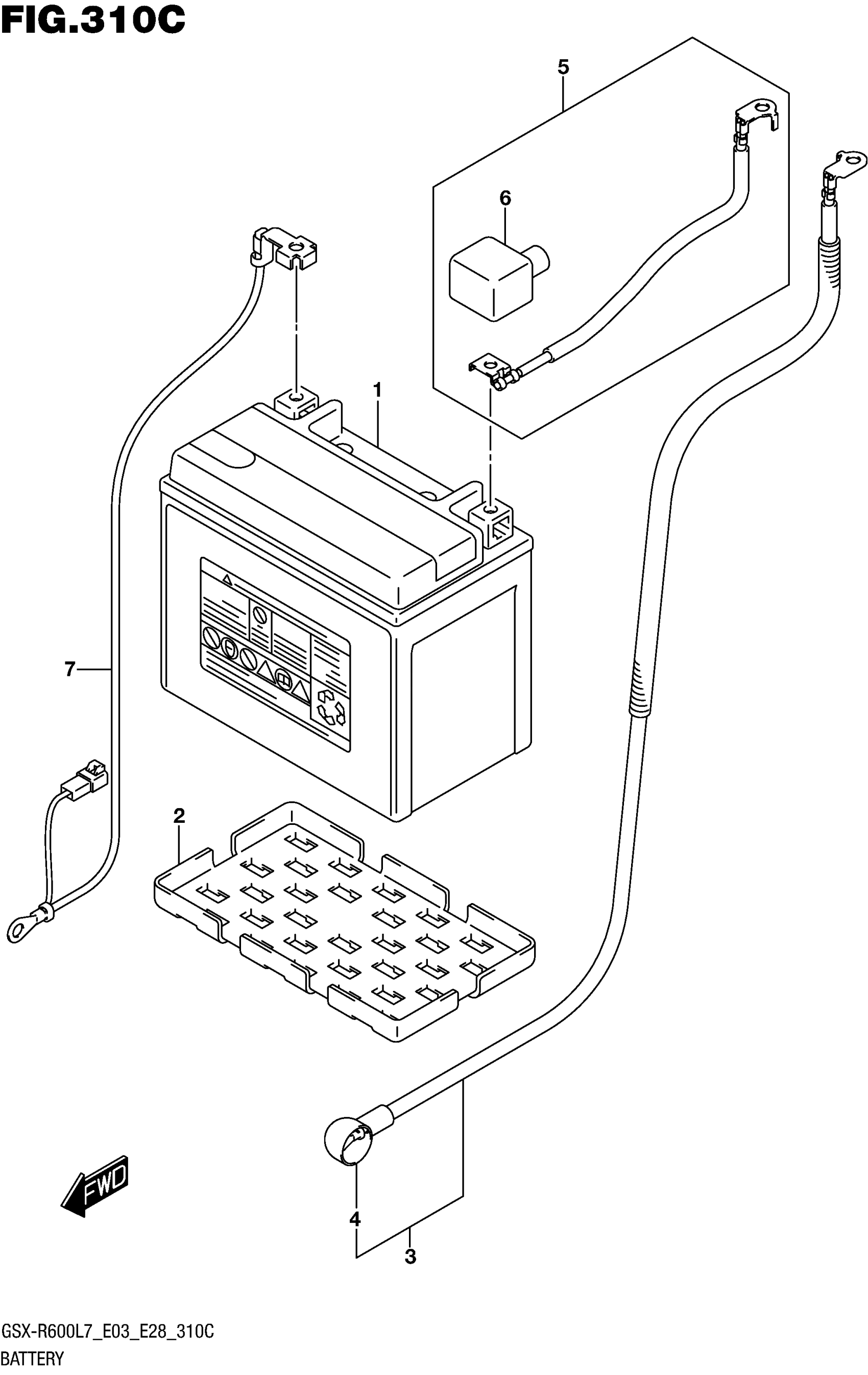

Suzuki GSX-R600L7 (2017) BATTERY (GSX-R600L7 E33) Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33610-33E21.

33610-33E20

$143.93

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

WIRE,STARTER MOTOR LEAD This part replaces 33810-14J00.

33810-14J01

$43.40

4

.CAP, STARTER MOTOR TERMINAL

33624-18H10

$11.18

5

WIRE,BATTERY PLUS LEAD This part replaces 33820-14J00.

33820-14J01

$24.73

6

.CAP, BATTERY PLUS

33624-16G00

$5.44

7

WIRE,BATTERY MINUS This part replaces 33860-14J00.

33860-14J01

$41.23
