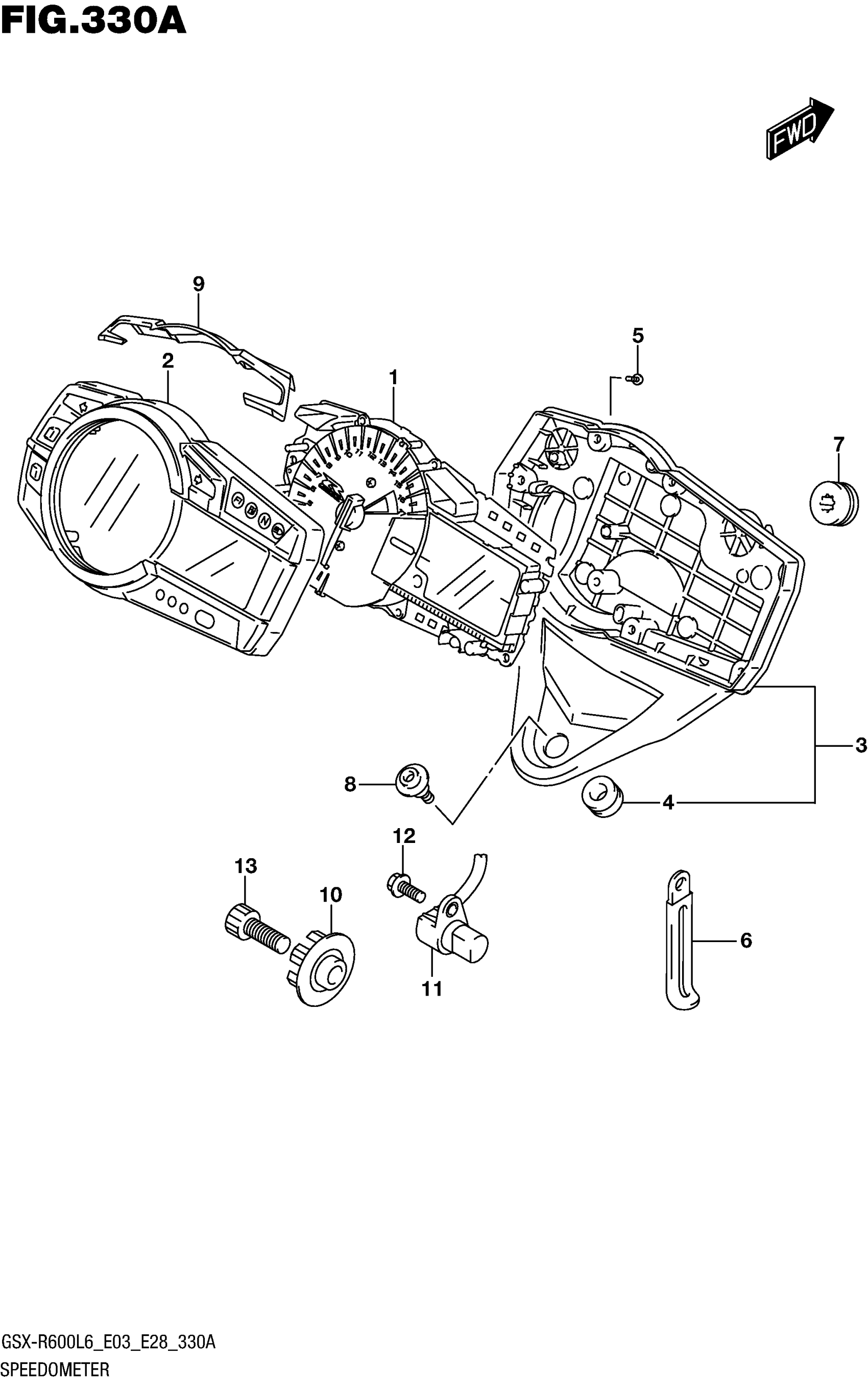

Suzuki GSX-R600L6 (2016) SPEEDOMETER (GSX-R600L6 E03) Diagram

#

Description
Price

1

SPEEDOMETER

34120-14J10

$1,207.22

2

CASE ASSY,UPR

34150-47H00

$189.55

3

LWR CASE ASSY

34111-14J00

$101.20

4

.CUSHION

34955-33E00

$3.41

5

SCREW (3X16)

09132-03008

$1.61

6

CLAMP (L:45)

09404-06429

$1.88

7

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

8

SCREW

34149-18G00

$2.71

9

PLATE

34157-47H00

$33.32

10

ROTOR,SPEED

34981-38G01

$17.14

11

SENSOR, SPEED

34990-35F00

$125.06

12

BOLT

07120-0512A

$2.38

13

BOLT

07130-0825A

$2.82
