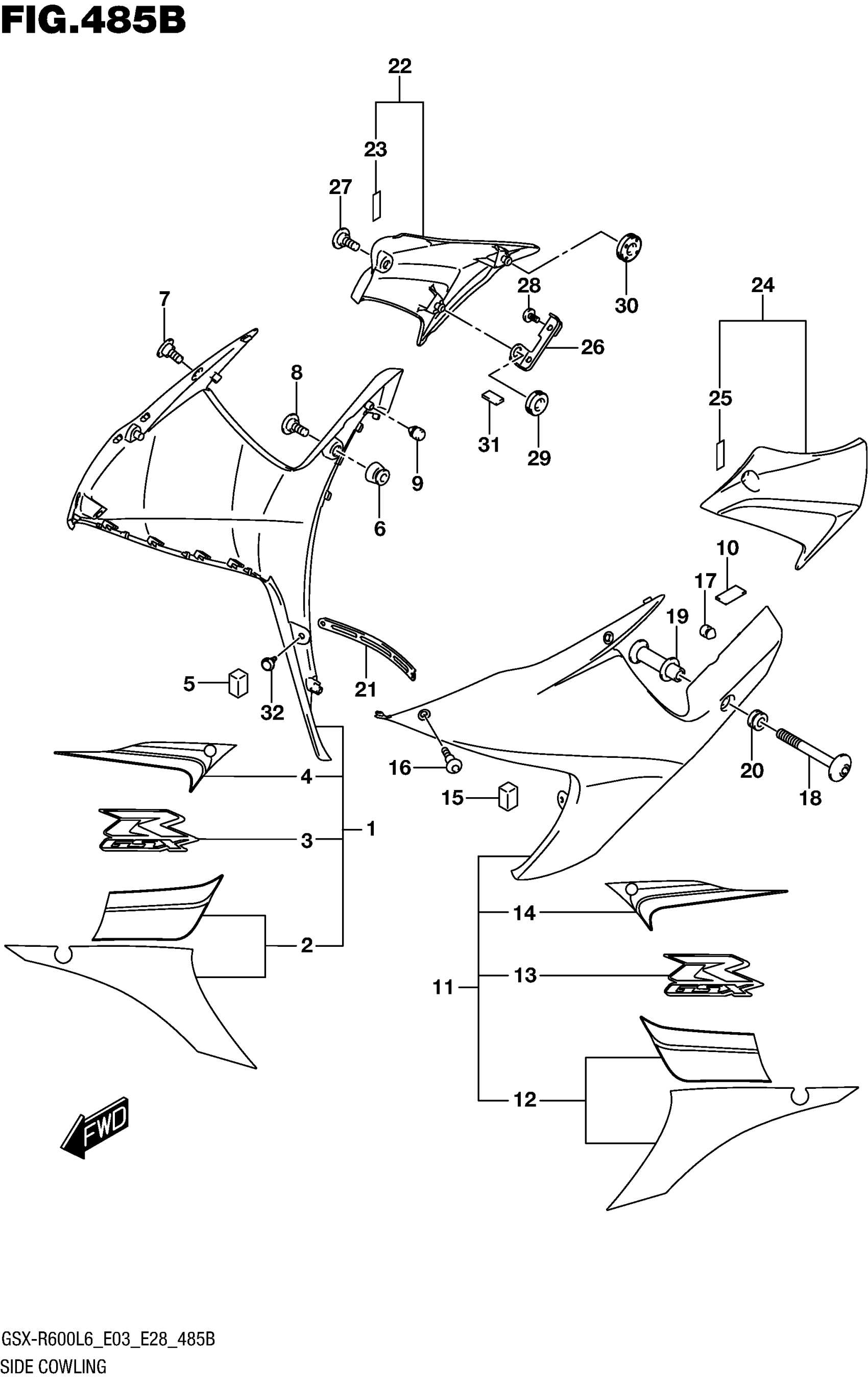

Suzuki GSX-R600L6 (2016) SIDE COWLING (AJP) Diagram

#

Description
Price

1

COWLING, SIDE RH (WHITE) | FOR AJP

94450-14J70-YWW

Unavailable

2

.TAPE SET, RH | FOR YWW

68680-14J20-BAG

Unavailable

3

.EMBLEM, "GSXR" RH | FOR YWW

68681-15J10-AG9

$34.93

4

.TAPE SIDE COWLING | FOR YWW

68685-14J50-BAG

Unavailable

5

CUSHION,SIDE COWL FR

94477-14J01

$12.35

6

CUSHION, SIDE COWLING

94479-15H00

$4.41

7

SCREW (5X13)

09139-05064

$2.64

8

BOLT (6X20)

09139-06190

$3.89

9

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

10

PROTECTOR, SIDE COWLING LH | CUT AS REQUIRED

44543-10G00

$5.47

11

COWLING, SIDE LH (WHITE) | FOR AJP

94460-14J70-YWW

Unavailable

12

.TAPE SET, LH | FOR YWW

68690-14J20-BAG

$64.05

13

.EMBLEM, "GSXR" LH | FOR YWW

68691-15J10-AG9

$34.93

14

.TAPE SIDE COWLING | FOR YWW

68695-14J50-BAG

$31.38

15

CUSHION,SIDE COWL FR

94477-14J01

$12.35

16

SCREW (5X13)

09139-05064

$2.64

17

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

18

SCREW,SIDE COWL,L

94488-14J00

$3.53

19

SPACER,SIDE COWL,L

94489-14J00

$10.72

20

CUSHION

09320-09016

$2.01

21

PLATE,UNDER COWL CTR

94498-14J00

$16.79

22

COVER,SIDE COWLING,R

94570-14J00

$18.06

23

.TAPE (6X25X0.13)

94443-06G00

$3.11

24

COVER,SIDE COWLING,L

94580-14J00

$18.06

25

.TAPE (6X25X0.13)

94443-06G00

$3.11

26

BRACKET,COVER SIDE,R

94491-14J00

$11.28

27

SCREW (5X13)

09139-05064

$2.64

28

SCREW (6X12)

09139-06062

$3.30

29

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.98

30

CUSHION

09320-08028

$2.82

31

CUSHION, BRACKET COVER RH

94612-31F00

$5.62

32

CLIP, UNDER CTR

94479-35F00

$5.38

33

COLOR :

SPECIAL NOTE

Unavailable

33

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

33

:

SPECIAL NOTE

Unavailable

33

ARB=YVZ(RED),YKV(BLACK)

SPECIAL NOTE

Unavailable
