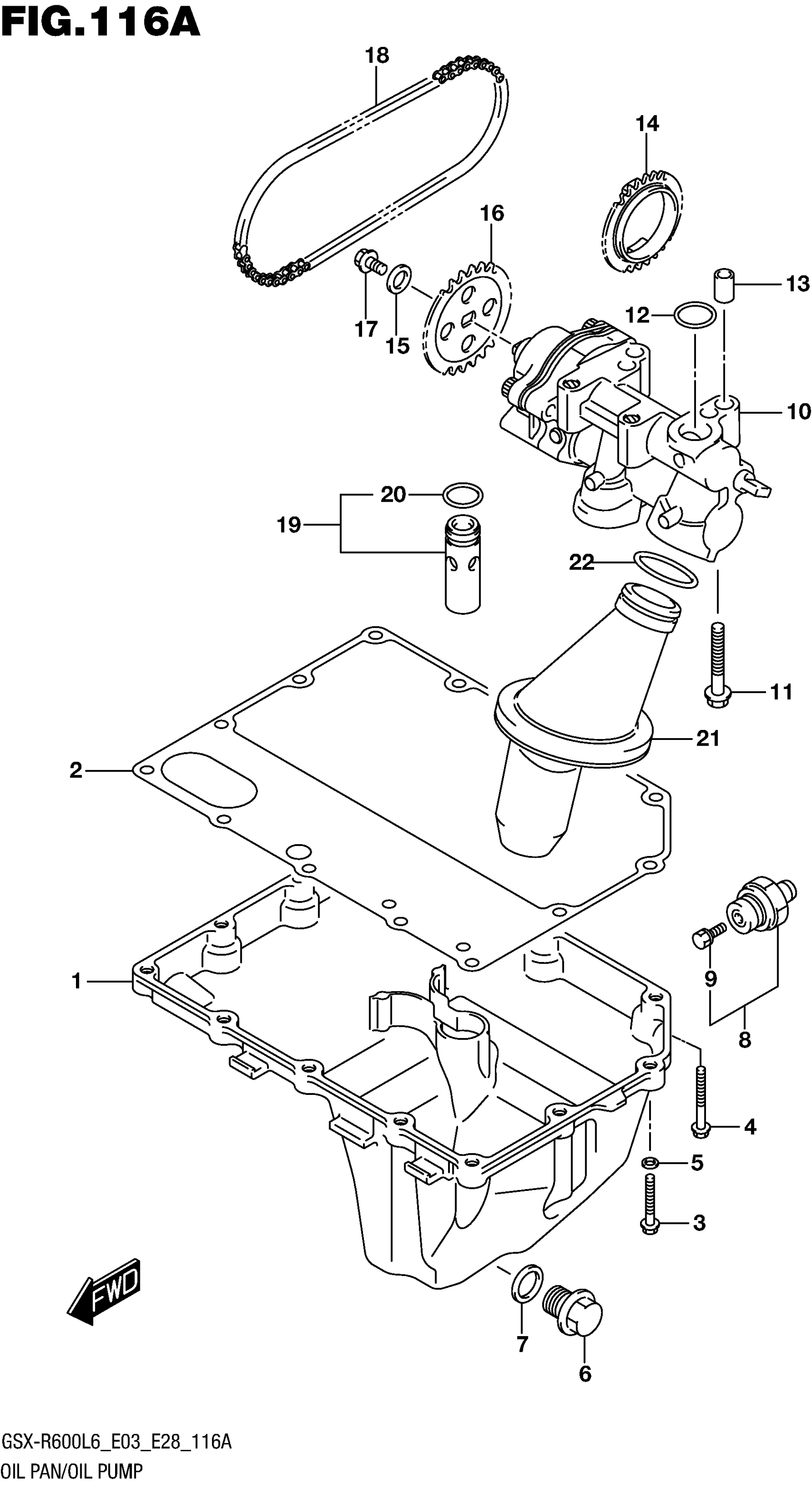

Suzuki GSX-R600L6 (2016) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN,OIL

11511-01H00

$205.29

2

GASKET

11489-01H01

$14.75

3

BOLT

01547-0625A

$2.09

4

BOLT (6X30)

09103-06204

$2.80

5

GASKET (5.8X13X1.2)

09168-06023

$2.09

6

PLUG (14X20) | OIL DRAIN

09247-14036

$5.74

7

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

8

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$27.58

9

.BOLT

37822-33D00

$4.92

10

PUMP ASSY, ENG OIL

16400-01H00

$209.25

11

BOLT

01547-0635A

$2.38

12

O-RING (D:2.4,ID:15.8)

09280-15007

$1.76

13

PIN

04211-09149

$1.70

14

SPROCKET, DRIVE (NT:27)

16321-01H00

$86.77

15

SHIM (10X18X0.5)

09181-10158

$2.03

16

SPROCKET, DRIVEN (NT:28)

16331-01H00

$28.17

17

BOLT (6X12)

09103-06285

$2.02

18

CHAIN ASSY,OIL PUMP DRIVE

16310-01H00

$27.13

19

VALVE ASSY, OIL RELIEF

16440-24F00

$47.86

20

.O RING (D:1.9,ID:13)

09280-13004

$2.25

21

STRAINER, ENGINE OIL NO.1

16520-01H01

$28.46

22

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.09
