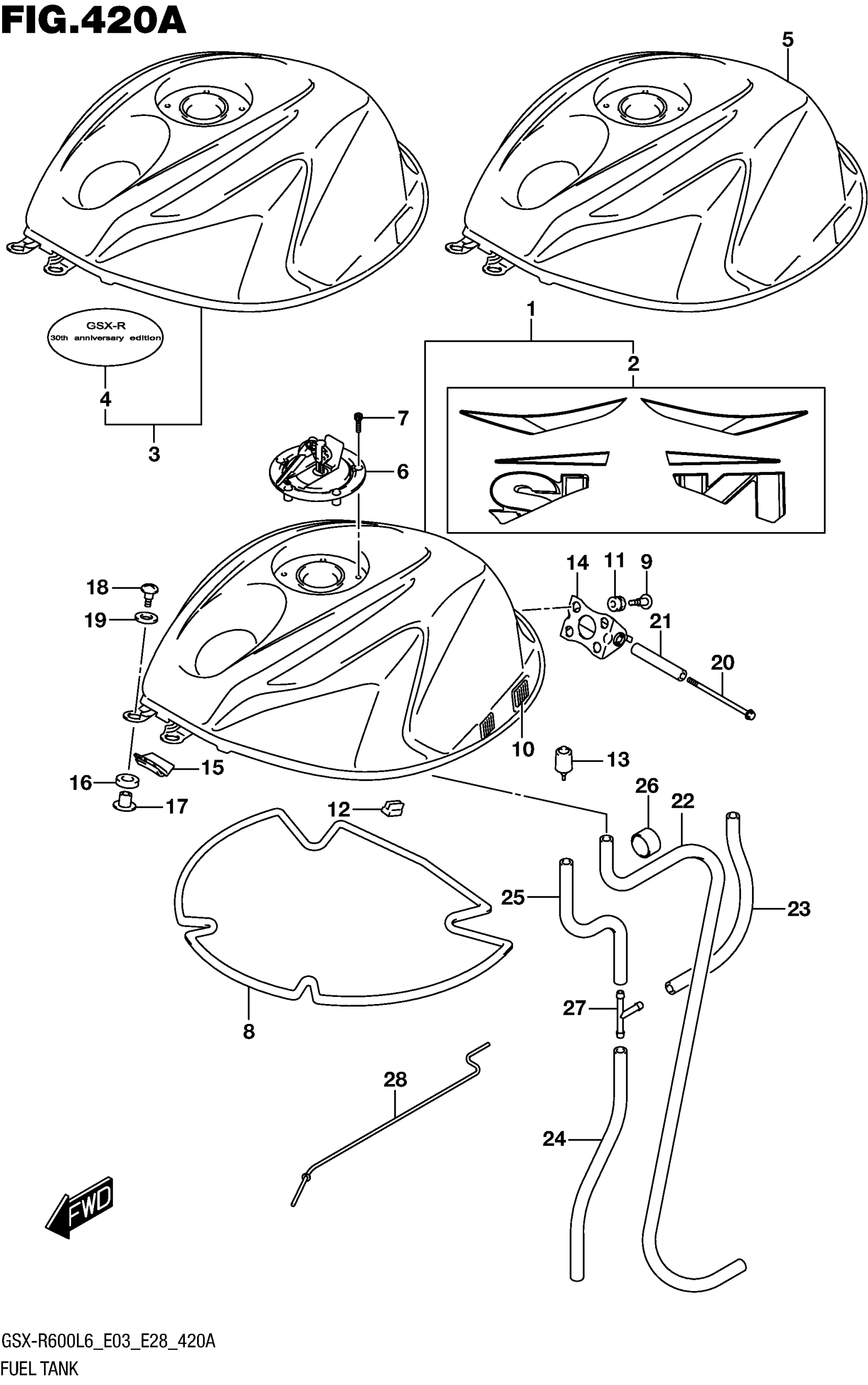

Suzuki GSX-R600L6 (2016) FUEL TANK (GSX-R600L6 E03) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE)

44100-14J60-YSF

$1,341.12

2

.TAPE SET, FUEL TANK | FOR YSF

68110-14J00-A3E

$198.53

2

(WHITE/BLUE)

68110-14J00-A3E

$198.53

3

TANK ASSY (BLUE) | FOR AJP

44100-14J90-YKY

Unavailable

4

.EMBLEM, FUEL TANK COVER | FOR YKY

68121-47H10-QES

Unavailable

5

TANK ASSY, FUEL (RED) | FOR ARB

44100-14J32-YVZ

$1,637.35

6

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$112.54

7

BOLT

44244-11J00

$3.93

8

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

9

SCREW

44543-14J00

$7.95

10

FASTENER, COVER

44572-13G00

$10.59

11

CUSHION

09320-08071

$3.16

12

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.71

13

CUSHION,FUEL TANK RR

44542-41G00

$7.36

14

BRACKET,FUEL TANK

44530-41G01

$45.77

15

RUBBER,FUEL TANK FR

44546-44H00

$15.07

16

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.94

17

SPACER, TANK FRONT

44512-16G00

$7.11

18

SCREW (6X25)

09139-06192

$3.01

19

WASHER This part replaces 09160-06012.

09160-06054

$1.66

20

BOLT (6X110)

09106-06119

$5.36

21

SPACER, TANK REAR

44561-18G00

$16.22

22

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$23.47

23

HOSE,FUEL TANK BRTHR NO.1 This part replaces 44424-14J00.

44424-14J01

$10.87

24

HOSE,FUEL TANK BRTHR NO.2 This part replaces 44424-14J10.

44424-14J11

$10.02

25

HOSE,VACUUM | CUT AS REQUIRED This part replaces 44425-09E00.

44425-09E01

$12.73

26

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

27

3 WAY

09367-06007

$3.29

28

STAY, FUEL TANK | OPT

44574-35F00

$14.51

29

COLOR :

SPECIAL NOTE

Unavailable

29

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

29

:

SPECIAL NOTE

Unavailable

29

ARB=YVZ(RED),YKV(BLACK)

SPECIAL NOTE

Unavailable
