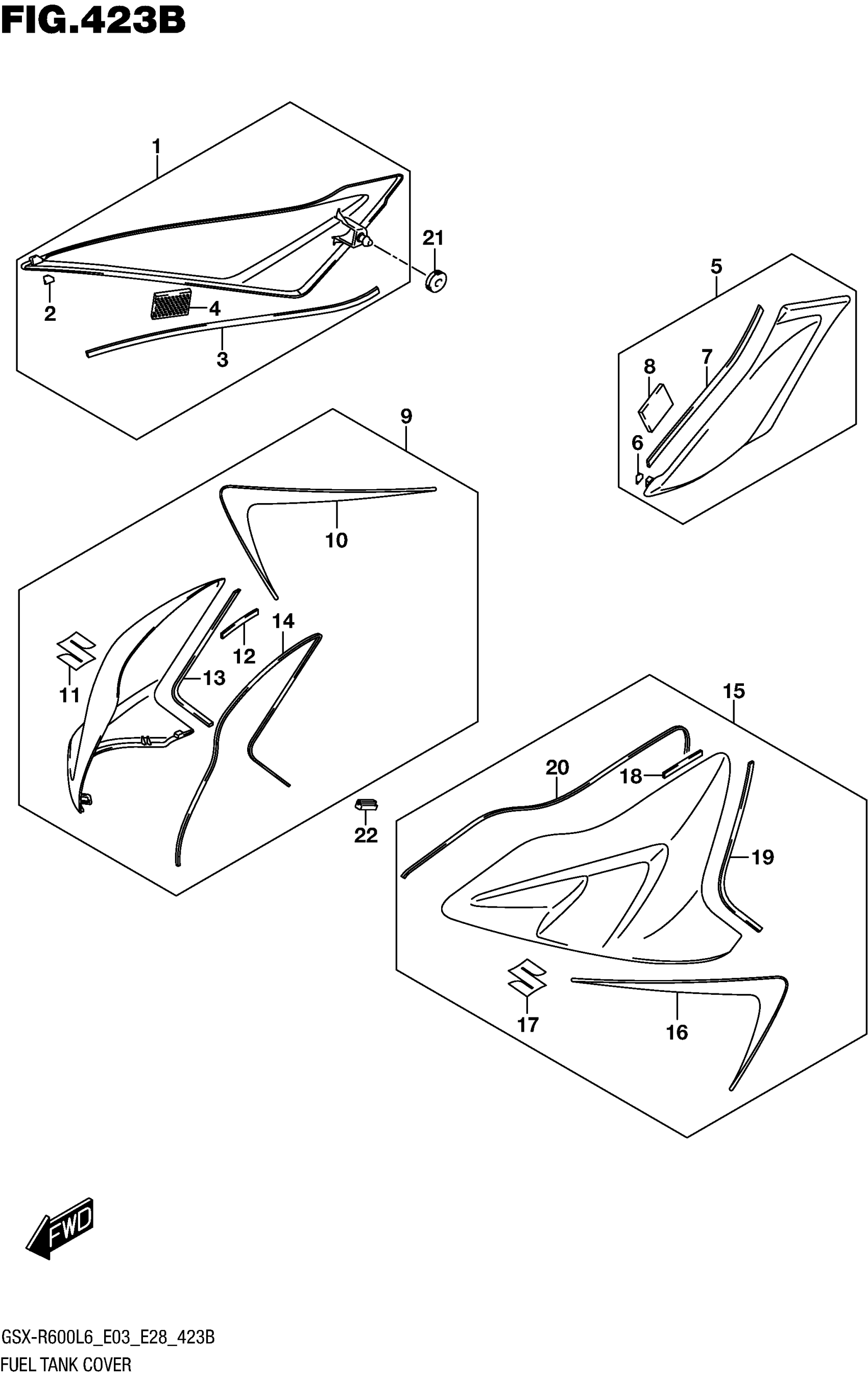

Suzuki GSX-R600L6 (2016) FUEL TANK COVER (ARB) Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE,R

44170-14J00

$39.07

2

.CUSHION, FUEL TANK COVER

44172-14J00

$10.42

3

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

4

.FASTENER, COVER

44572-02F01

$10.59

5

COVER,FUEL TANK SIDE,L

44180-14J00

$39.07

6

.CUSHION, FUEL TANK COVER

44172-14J00

$10.42

7

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

8

.FASTENER, COVER

44572-02F01

$10.59

9

COVER, TANK FRONT RH (BLACK) | FOR ARB

44270-14J50-YKV

$168.62

10

.TAPE, FUEL TANK COVER RH | FOR YKV

68115-14J00-ARB

Unavailable

10

(RED/BLACK)

68115-14J00-ARB

Unavailable

11

.EMBLEM, "S"

68111-47HA0

$38.68

12

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$14.13

13

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$17.93

14

.CUSHION, FUEL TANK COVER FR

44277-14J00

$5.14

15

COVER, TANK FRONT LH (BLUE) | FOR ARB

44280-14J50-YKV

Unavailable

16

.TAPE, FUEL TANK COVER LH | FOR YKV

68116-14J00-ARB

$29.30

16

(RED/BLACK)

68116-14J00-ARB

$29.30

17

.EMBLEM, "S"

68111-47HA0

$38.68

18

.CUSHION, FUEL TANK COVER NO.

44273-14J00

$14.13

19

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$17.93

20

.CUSHION, FUEL TANK COVER FR

44277-14J00

$5.14

21

CUSHION, SIDE

44173-14J00

$4.09

22

CUSHION,FUEL TANK COVER FR This part replaces 44177-14J01.

44177-14J02

$2.80

23

COLOR :

SPECIAL NOTE

Unavailable

23

ARB=YVZ(RED),YKV(BLACK)

SPECIAL NOTE

Unavailable
