Description

Price

1

COVER, FRAME RH (RED) | FOR ARB

47100-14J10-ASX

$124.07

2

COVER,FRAME RR,R

47611-14J00

$18.97

3

.EMBLEM, "600" (RED/BLACK) | FOR ASX

68131-14J00-ARB

$12.18

4

.TAPE

94443-06G00

$3.25

5

.SCREW

03541-0512A

$1.49

6

COVER, FRAME LH (RED) | FOR ARB

47200-14J10-ASX

$119.52

7

COVER,FRAME RR,L

47621-14J00

$19.07

8

EMBLEM,"600" | FOR ASX

68131-14J00-ARB

$12.18

9

.TAPE

94443-06G00

$3.25

10

.SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$97.78

12

.CUSHION

48128-14FA0

$6.47

13

.TAPE

94443-06G00

$3.25

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION

09320-06504

$4.96

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28

21

COLOR :

SPECIAL NOTE

Unavailable

21

ARB=YVZ(RED),YKV(BLACK)

SPECIAL NOTE

Unavailable

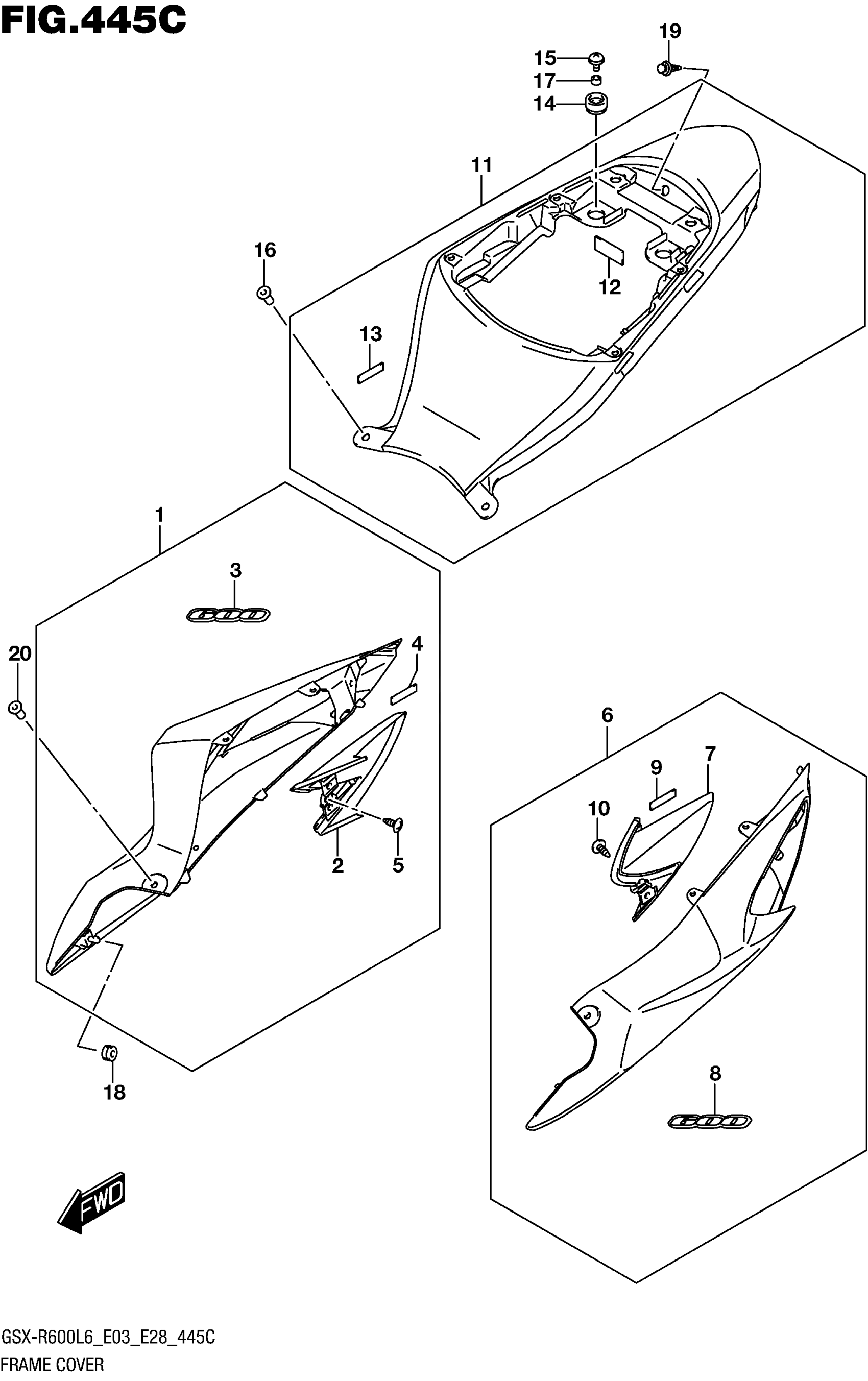

Suzuki GSX-R600L6 (2016) FRAME COVER (ARB) Diagram

COVER, FRAME RH (RED) | FOR ARB

COVER,FRAME RR,R

.EMBLEM, "600" (RED/BLACK) | FOR ASX

.TAPE

.SCREW

COVER, FRAME LH (RED) | FOR ARB

COVER,FRAME RR,L

EMBLEM,"600" | FOR ASX

.TAPE

.SCREW

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

.CUSHION

.TAPE

CUSHION (10X24X13) This part replaces 47312-37H00.

SCREW (6X16)

NUT

SPACER (6.5X10X7)

CUSHION

CLIP (BLACK)

SCREW

COLOR :

ARB=YVZ(RED),YKV(BLACK)
