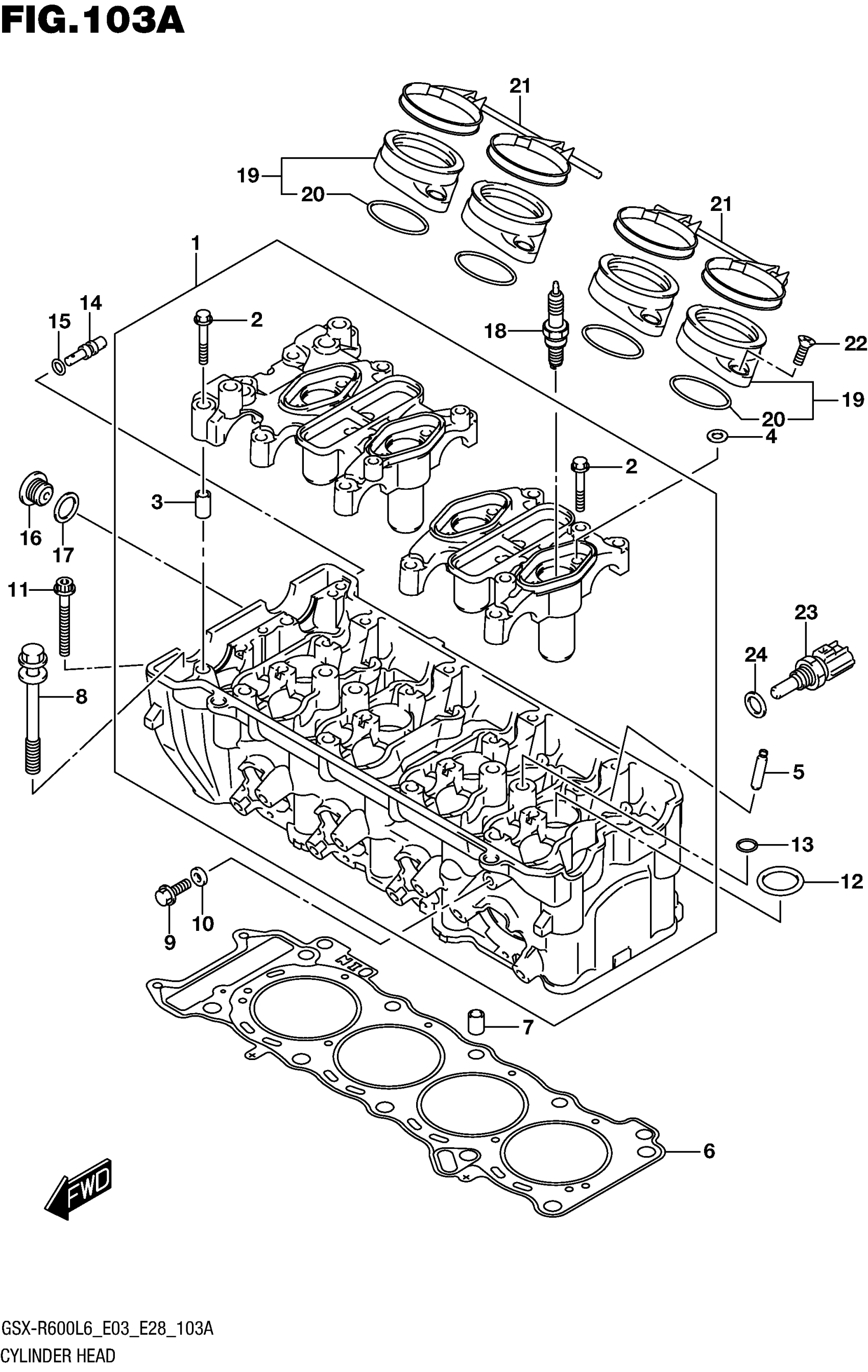

Suzuki GSX-R600L6 (2016) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-37H00

$2,769.05

2

.BOLT (6X40)

09103-06266

$2.19

3

.PIN (6.2X8X16)

09206-08007

$2.72

4

GASKET (6.2X13X1.2)

09168-06018

$1.76

5

GUIDE, VALVE (OS 0.3) | OPT

11115-29G70

$32.35

6

GASKET, CYLINDER HEAD

11141-37H00

$73.84

7

PIN

04211-11169

$1.82

8

BOLT (10X95)

11117-29G00

$8.55

9

BOLT

01550-0612A

$2.01

10

GASKET (5.8X13X1.2)

09168-06023

$2.09

11

BOLT

07120-0650A

$3.00

12

O-RING

11179-81402

$3.96

13

O RING (D:2.4,ID:10.8)

09280-11001

$2.06

14

JET, OIL GALLERY (8)

09493-80005

$17.57

15

O RING (D:1.2,ID:4)

09280-04004

$1.76

16

PLUG (16X8)

09248-16012

$4.32

17

GASKET (16X22X0.8)

09168-16009

$2.57

18-1

SPARK PLUG (NGK,CR9EIA-9)

09482-00558

$11.12

18-2

SPARK PLUG (DENSO,IU27D)

09482-00557

$15.78

18-3

SPARK PLUG (NGK,CR8EIA-9) | OPT

09482-00556

$9.94

18-4

SPARK PLUG (NGK,CR10EIA-9) | OPT

09482-00560

$10.31

18-5

SPARK PLUG (DENSO,IU24D) | OPT

09482-00555

$17.06

18-6

SPARK PLUG (DENSO,IU31D) | OPT

09482-00559

$21.92

19

PIPE ASSY,INTAKE This part replaces 13101-14J00.

13101-14J01

$38.62

20

.O RING (D:2.4,ID:41.7)

09280-42003

$8.04

21

CLAMP, INTAKE PIPE

13826-02H12

$25.08

22

BOLT (6X18.4)

09120-06007

$3.00

23

SENSOR, WATER TEMPERATURE

13650-49X00

$86.27

24

GASKET (12X17X1)

09168-12017

$2.01
