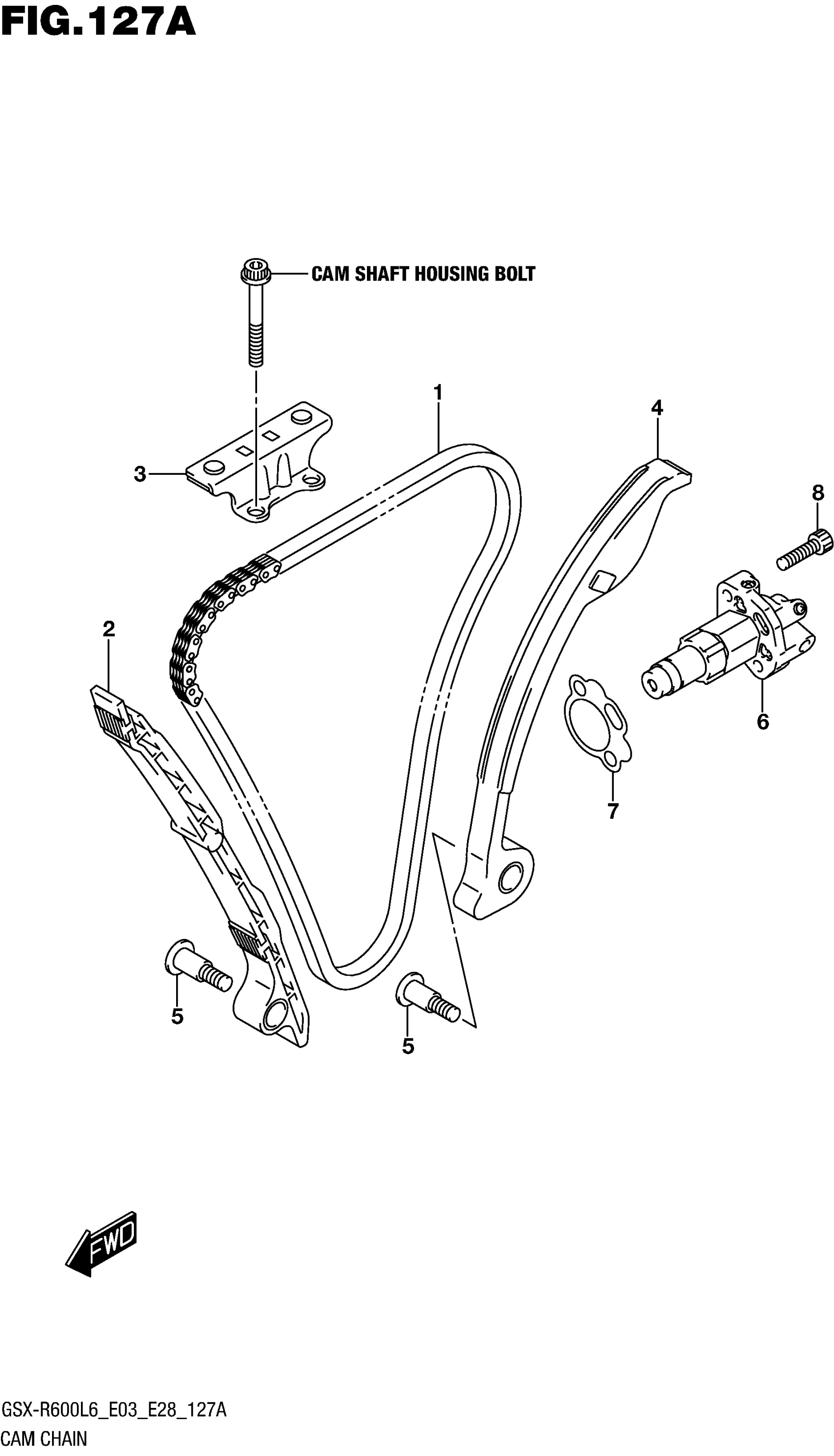

Suzuki GSX-R600L6 (2016) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAMSHAFT DRIVE

12760-39F00

$135.79

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-37H00.

12771-37H01

$25.41

3

GUIDE,CAM CHAIN NO.2

12782-29G00

$30.38

4

TENSIONER,CAM CHAIN This part replaces 12811-02H00.

12811-02H01

$48.60

5

BOLT

12812-31G00

$4.39

6

ADJUSTER ASSY,TENSIONER

12830-37H00

$249.84

7

GASKET, TENSIONER ADJUSTER

12837-02H00

$6.18

8

BOLT (6X25)

07130-0625A

$2.74
