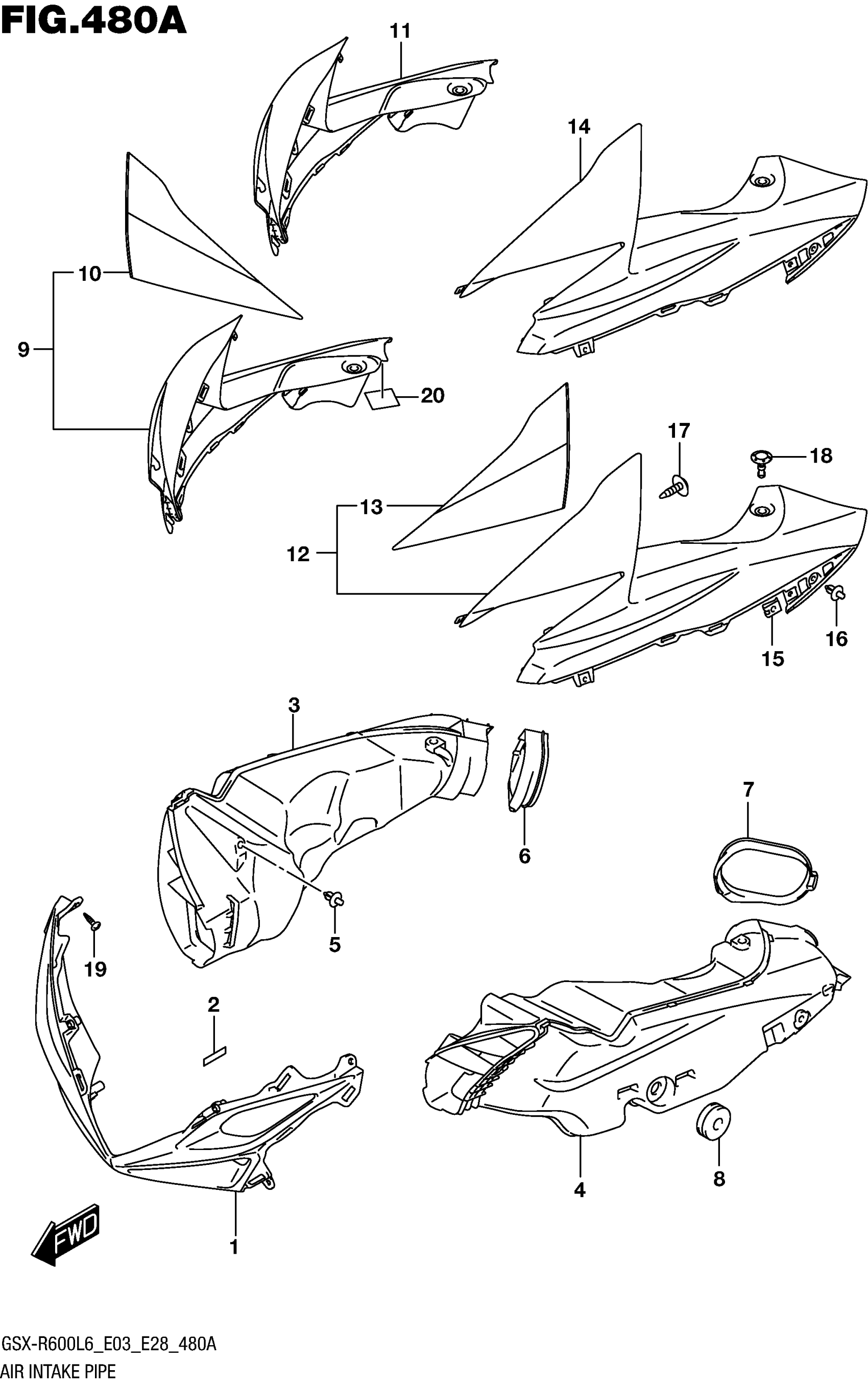

Suzuki GSX-R600L6 (2016) AIR INTAKE PIPE (YSF,ARB) Diagram

#

Description
Price

1-1

COVER, INTAKE FRONT (BLACK) | FOR YSF

94671-14J10-YKV

$223.68

1-2

COVER, INTAKE FRONT (RED) | FOR ARB

94671-14J10-YVZ

$180.87

2

TAPE

94443-06G00

$3.25

3

PIPE,AIR INTAKE RH

94420-14J00

$98.40

4

PIPE,AIR INTAKE LH

94430-14J00

$82.08

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

MOLDING,AIR INTAKE,R

94423-14J00

$14.34

7

MOLDING,AIR INTAKE,L

94433-14J00

$14.34

8

CUSHION

09320-08028

$3.04

9

COVER,INTAKE,R( | FOR YSF This part replaces 94670-14J00-YSF.

94670-14J01-YSF

$163.85

10

.TAPE, INTAKE PIPE RH | FOR YSF

68275-14J00-A3F

$37.48

10

(WHITE/BLUE)

68275-14J00-A3F

$37.48

11

COVER,INTAKE,R (BLACK) | FOR ARB This part replaces 94672-14J00-YKV.

94672-14J01-YKV

$133.27

12

COVER,INTAKE,L( | FOR YSF This part replaces 94680-14J00-YSF.

94680-14J01-YSF

$163.85

13

.TAPE, INTAKE PIPE LH | FOR YSF

68276-14J00-A3F

$37.48

13

(WHITE/BLUE)

68276-14J00-A3F

$37.48

14

COVER,INTAKE,L (BLACK) | FOR ARB This part replaces 94682-14J00-YKV.

94682-14J01-YKV

$133.27

15

NUT

09148-05052

$3.37

16

CLIP (BLACK)

09409-06314-5PK

$2.78

17

SCREW (5X12)

09132-05050

$1.92

18

CLIP, REAR

94479-35F00

$5.62

19

SCREW

03541-0512A

$1.49

20

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03

21

COLOR :

SPECIAL NOTE

Unavailable

21

ARB=YVZ(RED),YKV(BLACK)

SPECIAL NOTE

Unavailable
