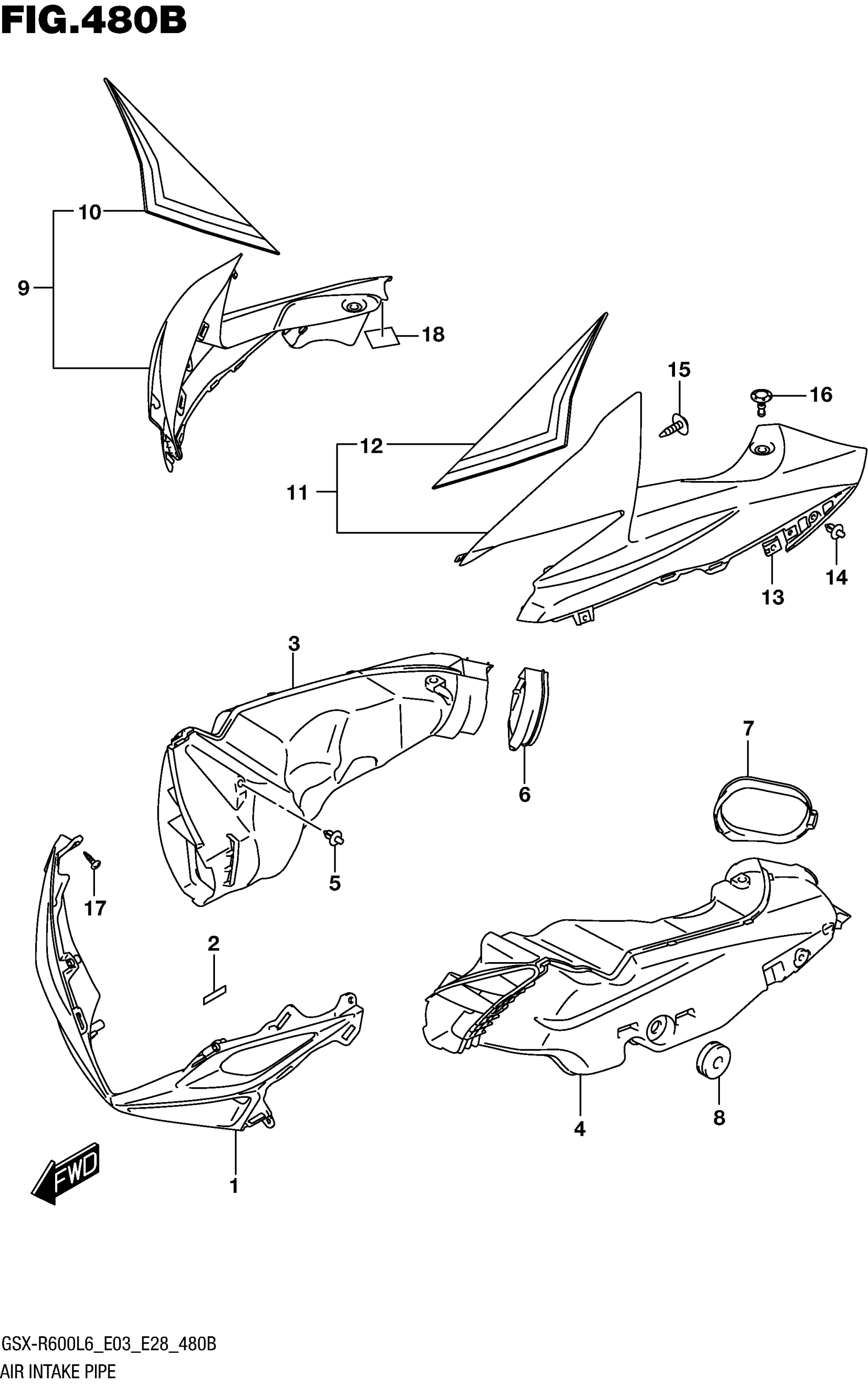

Suzuki GSX-R600L6 (2016) AIR INTAKE PIPE (AJP) Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLACK) | FOR AJP

94671-14J10-YKV

$223.68

2

TAPE

94443-06G00

$3.25

3

PIPE,AIR INTAKE RH

94420-14J00

$98.40

4

PIPE,AIR INTAKE LH

94430-14J00

$82.08

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

MOLDING,AIR INTAKE,R

94423-14J00

$14.34

7

MOLDING,AIR INTAKE,L

94433-14J00

$14.34

8

CUSHION

09320-08028

$3.04

9

COVER COMP,INTA | FOR AJP This part replaces 94670-14J10-YKY.

94670-14J11-YKY

$181.10

10

.TAPE, INTAKE PIPE RH | FOR YKY

68275-14J10-BAG

Unavailable

11

COVER COMP,INTA | FOR AJP This part replaces 94680-14J10-YKY.

94680-14J11-YKY

$180.32

12

.TAPE, INTAKE PIPE LH | FOR YKY

68276-14J10-BAG

Unavailable

13

NUT

09148-05052

$3.37

14

CLIP (BLACK)

09409-06314-5PK

$2.78

15

SCREW (5X12)

09132-05050

$1.92

16

CLIP, REAR

94479-35F00

$5.62

17

SCREW

03541-0512A

$1.49

18

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03

19

COLOR :

SPECIAL NOTE

Unavailable

19

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable
