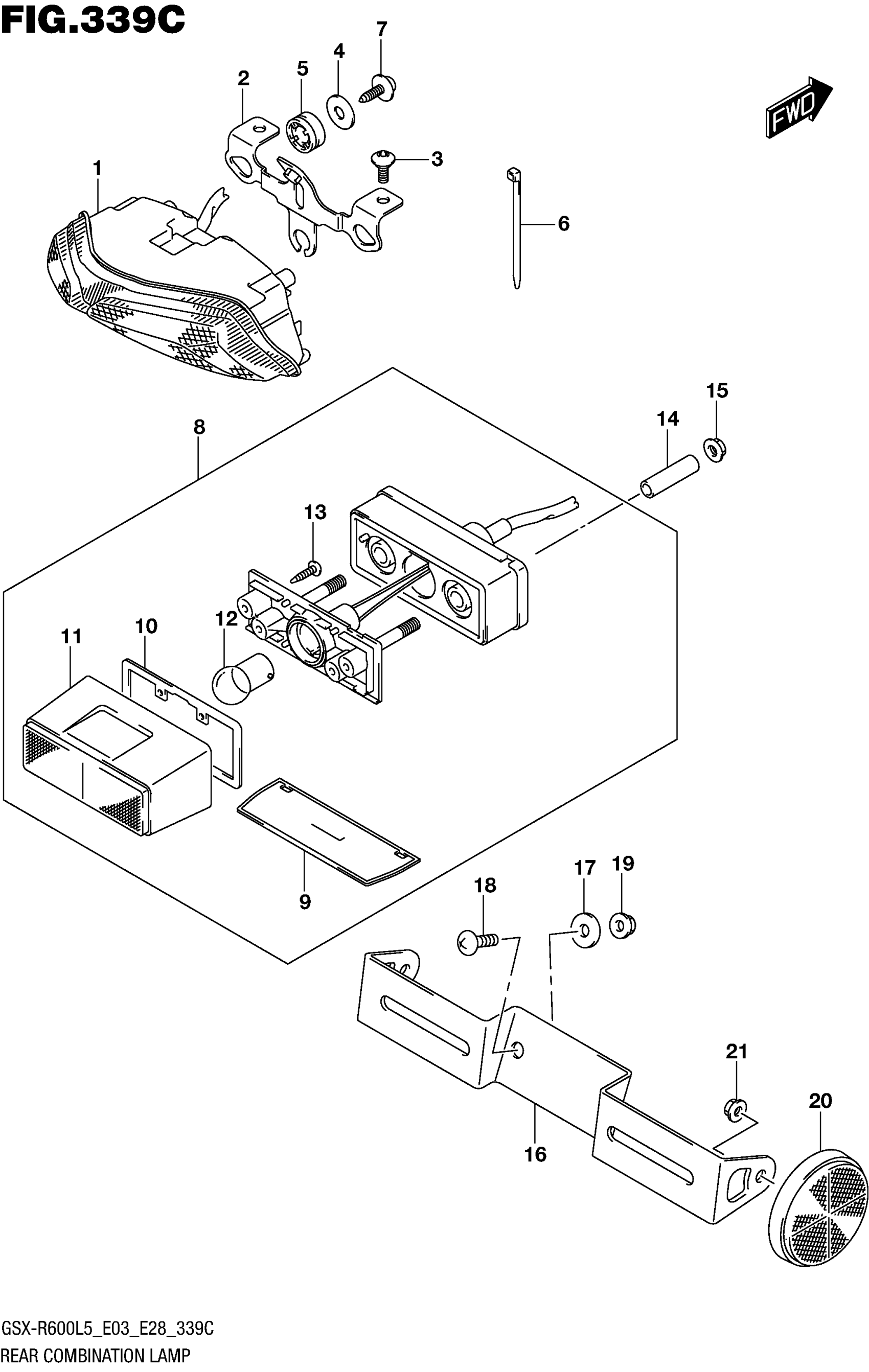

Suzuki GSX-R600L5 (2015) REAR COMBINATION LAMP (GSX-R600L5 E33) Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-14JA0.

35710-14JC0

$141.45

2

BRACKET, REAR COMBINATION LAMP

35726-14J00

$20.03

3

BOLT (5X13)

09139-05074

$2.58

4

WASHER (5.5X20X1.2)

09160-05501

$1.86

5

CUSHION

09320-10049

$2.38

6

CLAMP (L:100)

09407-10404

$2.71

7

SCREW

03541-0516A

$1.37

8

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

$99.83

9

LENS

35912-41G01

$14.98

10

GASKET

35913-41G00

$16.07

11

COVER

35917-41G00

$39.85

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

13

SCREW

03211-0416A

$1.43

14

SPACER (6.5X9X34)

09180-06356

$5.10

15

NUT

09159-06096

$3.42

16

BRACKET,LICENSE PLATE

35927-14J30

$17.72

17

WASHER (6.5X20X1.2)

09160-06077

$1.89

18

SCREW

02142-0616A

$1.37

19

NUT

08316-1006A

$2.19

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

21

NUT

08316-1005A

$2.19
