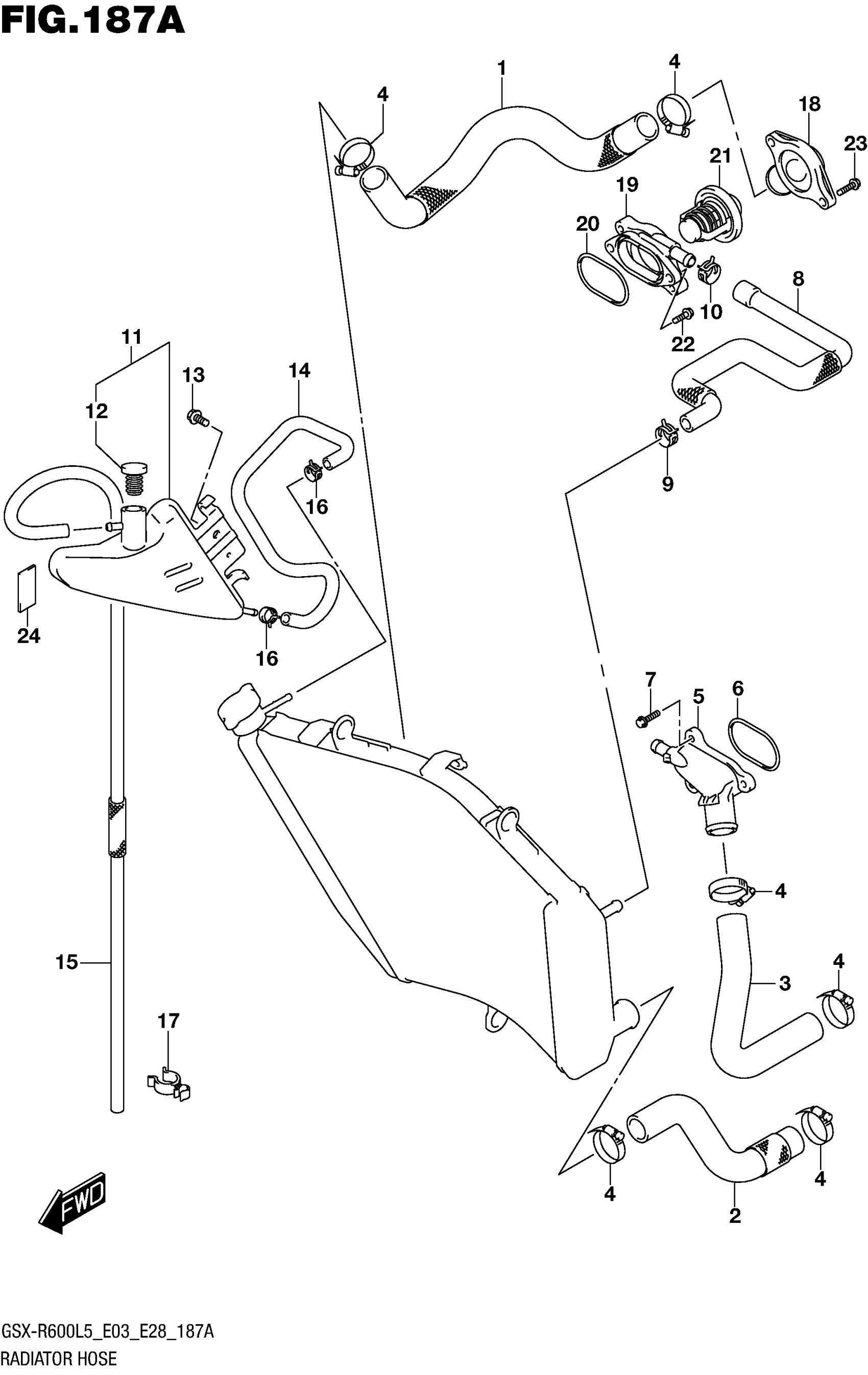

Suzuki GSX-R600L5 (2015) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE,RADIATOR INLET

17851-14J00

$62.78

2

HOSE,RADIATOR OUTLET

17852-14J00

$52.60

3

HOSE,CYLINDER INLET

17853-14J00

$29.04

4

CLAMP

09402-35501

$6.68

5

CONNECTOR,CYL WATER INLET

17861-01H00

$76.42

6

O-RING,CYL WATER CONNECTOR

17863-01H00

$6.45

7

BOLT

01547-0620A

$2.01

8

HOSE,WATER BYPASS

17854-14J00

$43.50

9

CLIP

09401-12414

$2.98

10

CLIP

09401-14403

$5.17

11

TANK ASSY,RESERVOIR

17910-14J00

$84.73

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

13

BOLT (6X12)

09111-06085

$4.16

14

HOSE, RESERVOIR TANK INLET

17981-18G00

$14.57

15

HOSE,RESERVOIR TANK OVFL

17982-37H00

$20.05

16

CLIP

09401-08411

$1.77

17

CLAMP (L:45)

09404-06429

$1.82

18

COVER,THERMOSTAT

17661-37H00

$41.02

19

CONNECTOR,THERMOSTAT

17662-01H00

$105.67

20

O-RING,THERMOSTAT CONNECTOR

17663-01H00

$6.45

21

THERMOSTAT,WTR (82<-C)

17670-76G00

$33.68

22

BOLT

01547-0620A

$2.01

23

BOLT

01550-0625A

$1.97

24

CUSHION,FR | CUT AS REQUIIRED

46312-31D11

$4.02
