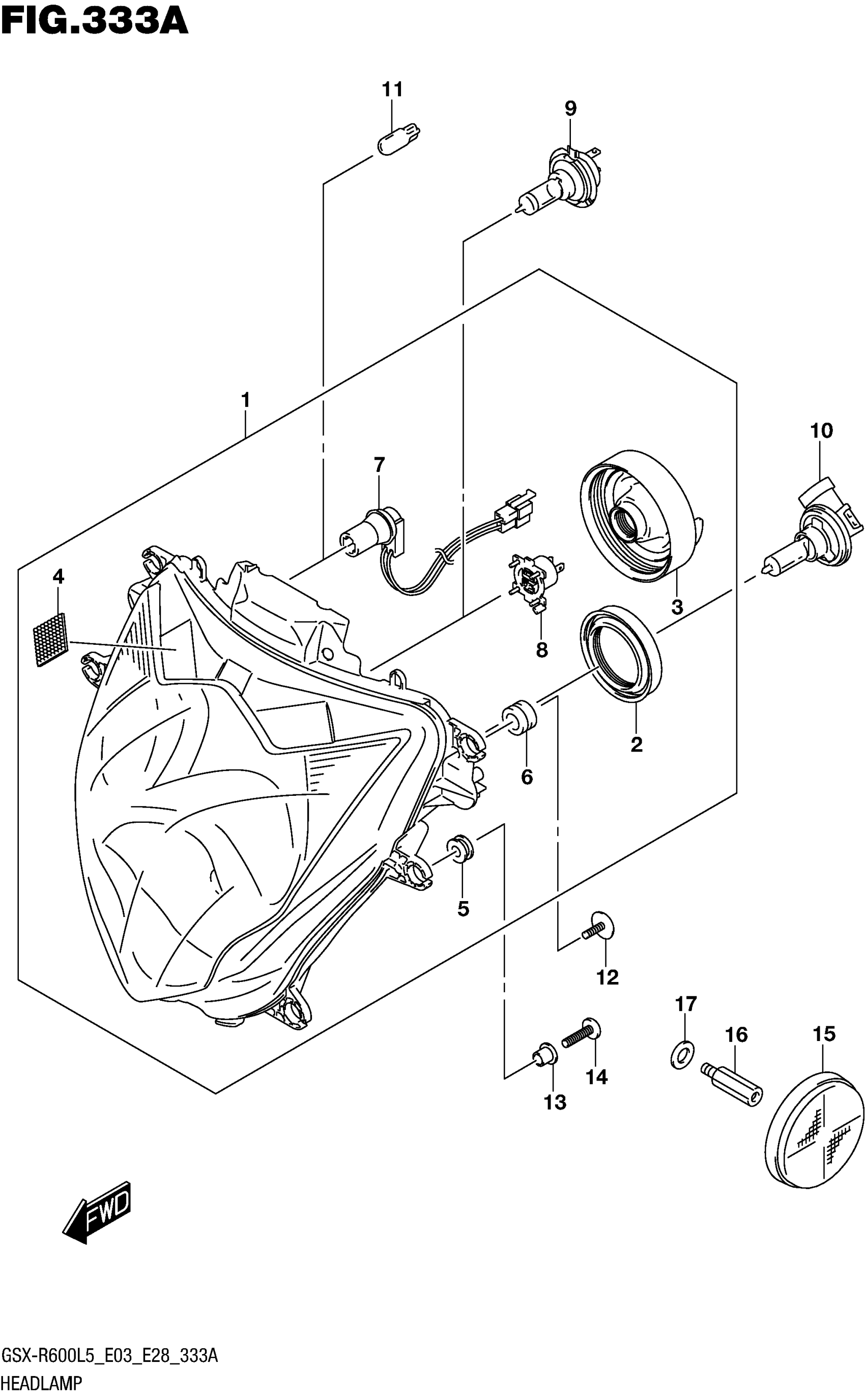

Suzuki GSX-R600L5 (2015) HEADLAMP (GSX-R600L5 E03) Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-14J31-999.

35100-14J32-999

$435.78

2

COVER, SOCKET

35179-01H00

$26.20

3

COVER, SOCKET

35179-58J00

$16.93

4

FASTENER

44572-02F01

$11.07

5

CUSHION

09320-07014

$3.89

6

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

7

CORD ASSY

36118-29G51

$18.88

8

ADAPTER ASSY

37175-14J00

$20.33

9

BULB (12V65W)

09471-12222

$83.53

10

BULB (12V55W H7)

09471-12188

$22.60

11

.BULB (12V5W)

09471-12216

$5.36

12

SCREW (5X15)

09136-05062

$2.19

13

WASHER

09169-05018

$2.82

14

SCREW

02142-0520B

$1.78

15

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

16

BOLT

09119-06109

$13.28

17

WASHER (8.5X18X1)

09160-08043

$1.83
