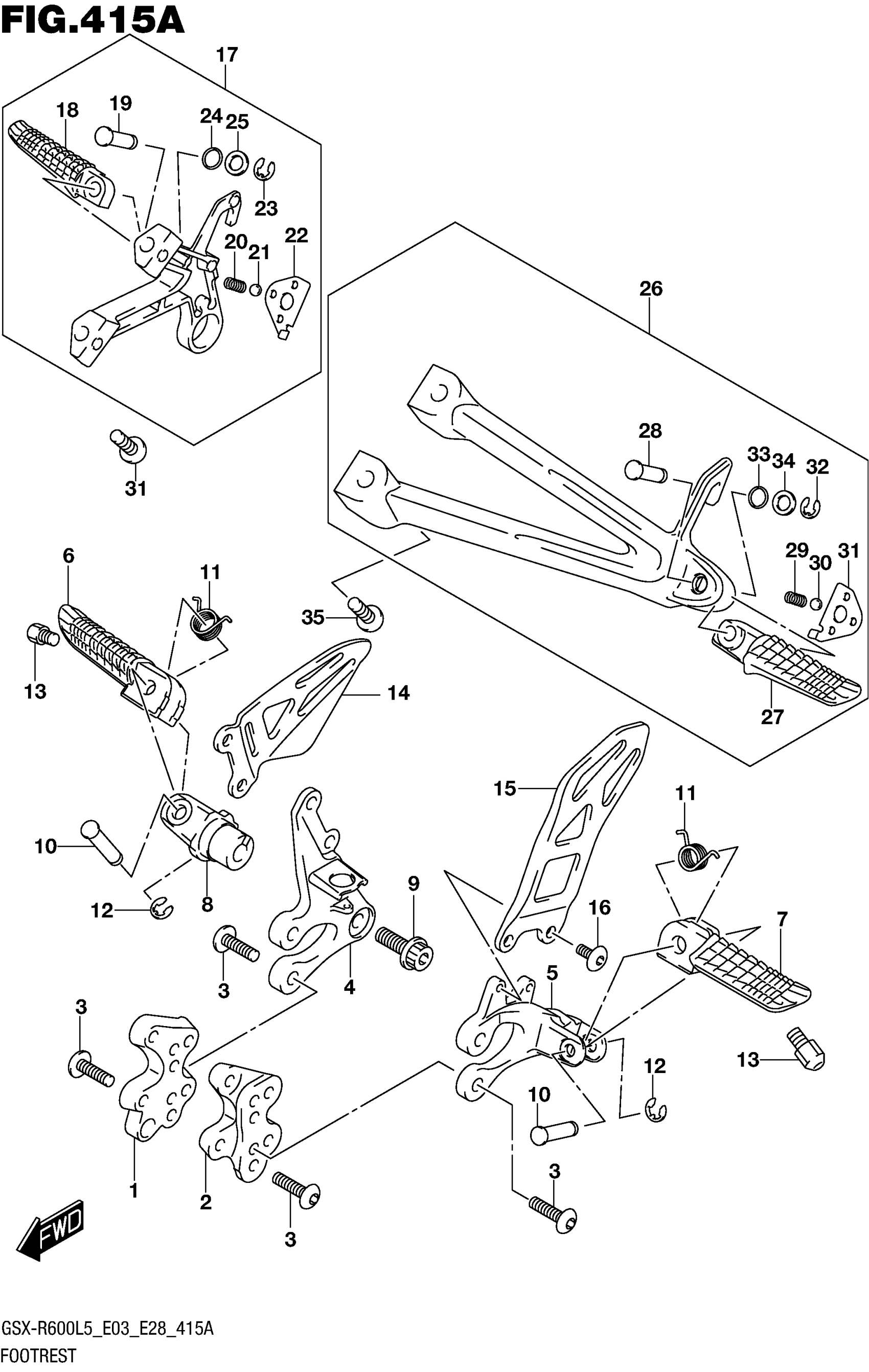

Suzuki GSX-R600L5 (2015) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST NO.1 RH

43541-14J00

$30.53

2

BRACKET, FOOTREST NO.1 LH

43551-14J00

$30.53

3

BOLT (8X23)

09106-08186

$3.42

4

BRACKET, FOOTREST NO.2 RH

43511-14J00

$117.62

5

BRACKET, FOOTREST NO.2 LH

43521-47H10

$137.68

6

BAR, FOOTREST RH

43516-37H00

$48.23

7

BAR, FOOTREST LH

43526-37H00

$39.68

8

HOLDER, FOOTREST

43531-41G10

$99.17

9

BOLT (10X28)

09106-10064

$4.90

10

PIN

09208-08018

$2.79

11

SPRING

09448-14037

$3.16

12

E RING

08332-1106A

$1.49

13

.BOLT,BANK SENSOR

43576-07D01

$8.85

14

GUARD, FOOTREST RH

43571-47H00

$80.03

15

GUARD, FOOTREST LH

43576-47H10

$78.55

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.98

17

FOOTREST, PILLION RH

43600-14J10

$268.22

18

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$44.65

19

PIN

09208-08020

$3.23

20

SPRING

09440-05003

$1.49

21

BALL

06111-07004

$1.49

22

.PLATE,PILLION FOOTREST,R

43816-47H00

$7.53

23

E RING

08332-1106A

$1.49

24

O RING (D:2.4,ID:6.9)

09280-08013

$2.38

25

WASHER This part replaces 09160-08091.

09160-08082

$1.61

26

FOOTREST, PILLION LH

43700-14J10

$258.38

27

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$43.18

28

PIN

09208-08020

$3.23

29

SPRING

09440-05003

$1.49

30

BALL

06111-07004

$1.49

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$7.27

32

E RING

08332-1106A

$1.49

33

O RING (D:2.4,ID:6.9)

09280-08013

$2.38

34

WASHER This part replaces 09160-08091.

09160-08082

$1.61

35

BOLT (8X23)

09106-08186

$3.42
