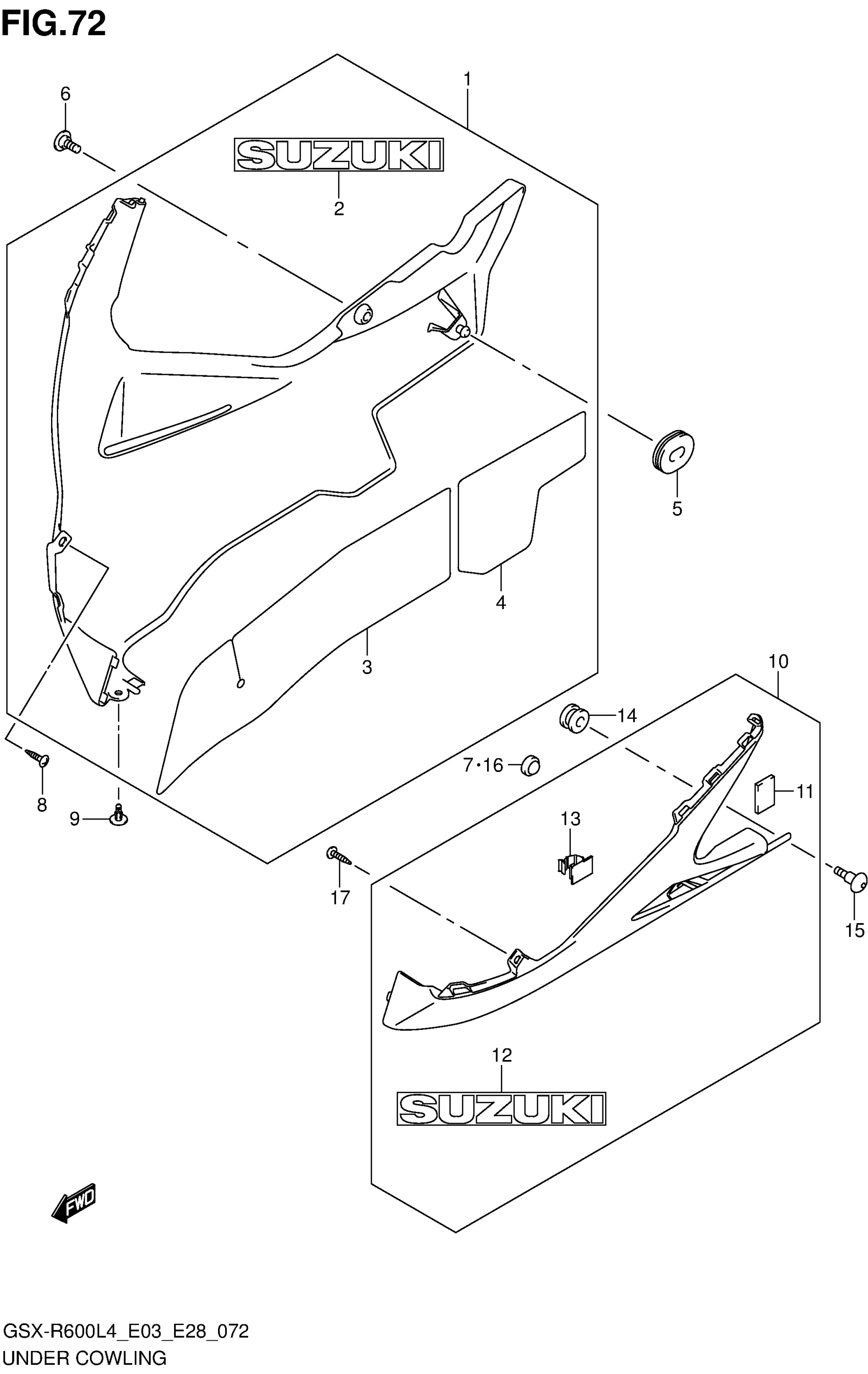

Suzuki GSX-R600L4 (2014) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH (WHITE) | FOR AGQ

94470-14J00-YWW

$756.36

1

COWLING, UNDER RH (RED) | FOR AR5

94470-14J00-RB5

$351.20

2

EMBLEM (BLACK)

68181-33C20-019

$24.48

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION

94478-14J00

$5.42

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.11

7

CUSHION

09321-10018

$4.19

8

SCREW

03541-0512A

$1.37

9

CLIP

94479-35F00

$5.14

10

COWLING,UNDER,L | FOR AGQ This part replaces 94480-14J00-YWW.

94480-14J01-YWW

$301.35

10

COWLING,UNDER,L | FOR AR5 This part replaces 94480-14J00-RB5.

94480-14J01-RB5

$280.17

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$5.43

12

EMBLEM (BLACK)

68181-33C20-019

$24.48

13

CLAMP

09403-14311

$4.88

14

CUSHION | LH

09320-09016

$1.97

15

BOLT (6X20) | LH

09139-06190

$3.77

16

CUSHION

09321-10018

$4.19

17

SCREW

03541-0512A

$1.37
