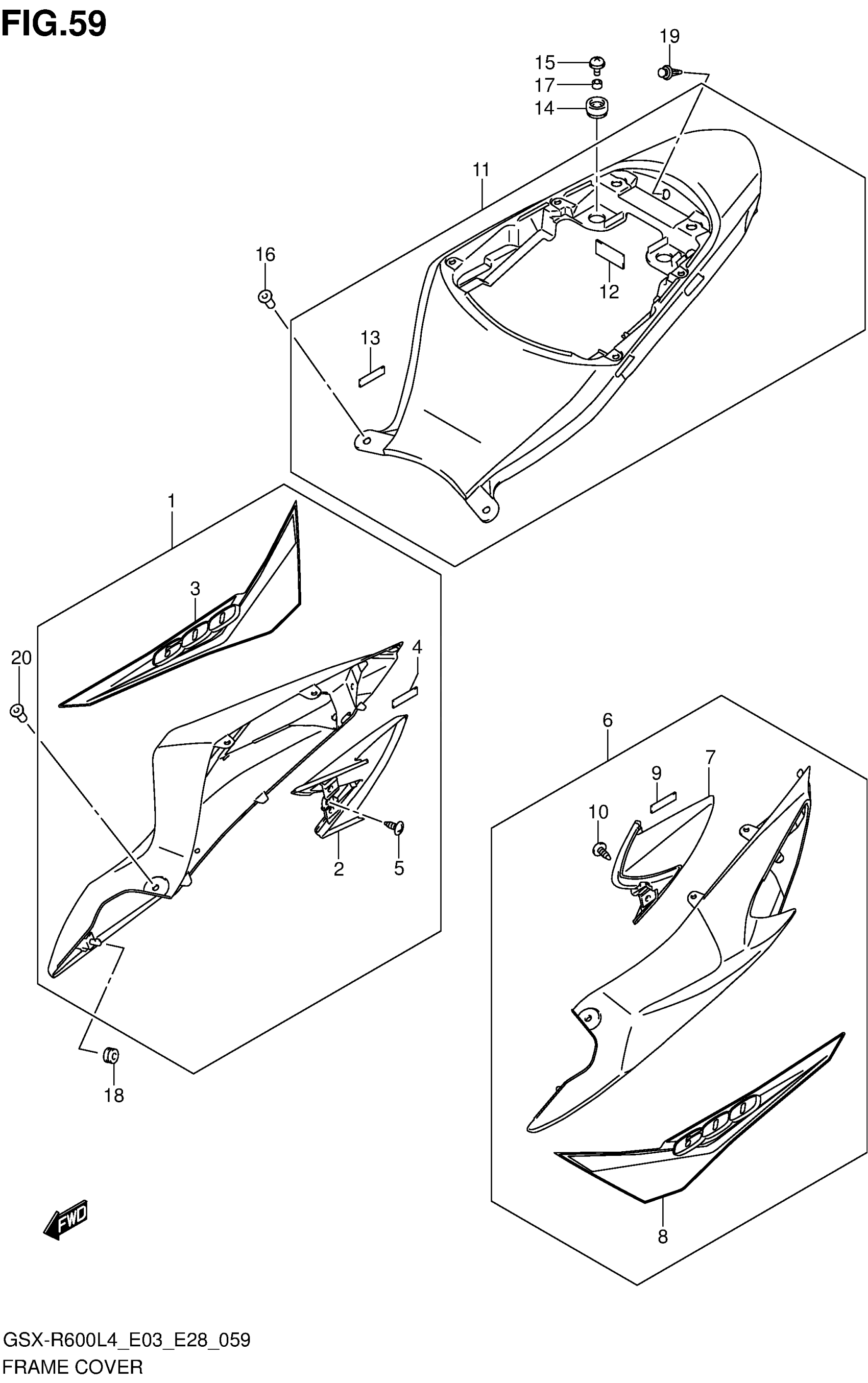

Suzuki GSX-R600L4 (2014) FRAME COVER (AGQ) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE) | FOR AGQ

47100-14J40-YSF

$198.21

2

COVER,FRAME RR,R

47611-14J00

$17.12

3

TAPE, FRAME COVER RH | FOR YSF

68135-14J30-ASN

Unavailable

4

TAPE

94443-06G00

$2.97

5

SCREW

03541-0512A

$1.37

6

COVER, FRAME LH (WHITE) | FOR AGQ

47200-14J40-YSF

$194.50

7

COVER,FRAME RR,L

47621-14J00

$17.20

8

TAPE, FRAME COVER LH | FOR YSF

68145-14J30-ASN

$48.73

9

TAPE

94443-06G00

$2.97

10

SCREW

03541-0512A

$1.37

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$88.23

12

CUSHION

48128-14FA0

$7.30

13

TAPE

94443-06G00

$2.97

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

15

SCREW (6X16)

09136-06056

$2.17

16

NUT

09159-05019

$6.44

17

SPACER (6.5X10X7)

09180-06283

$1.89

18

CUSHION

09320-06504

$4.47

19

CLIP (BLACK)

09409-06314-5PK

$2.80

20

SCREW

02142-1520B

$2.34
