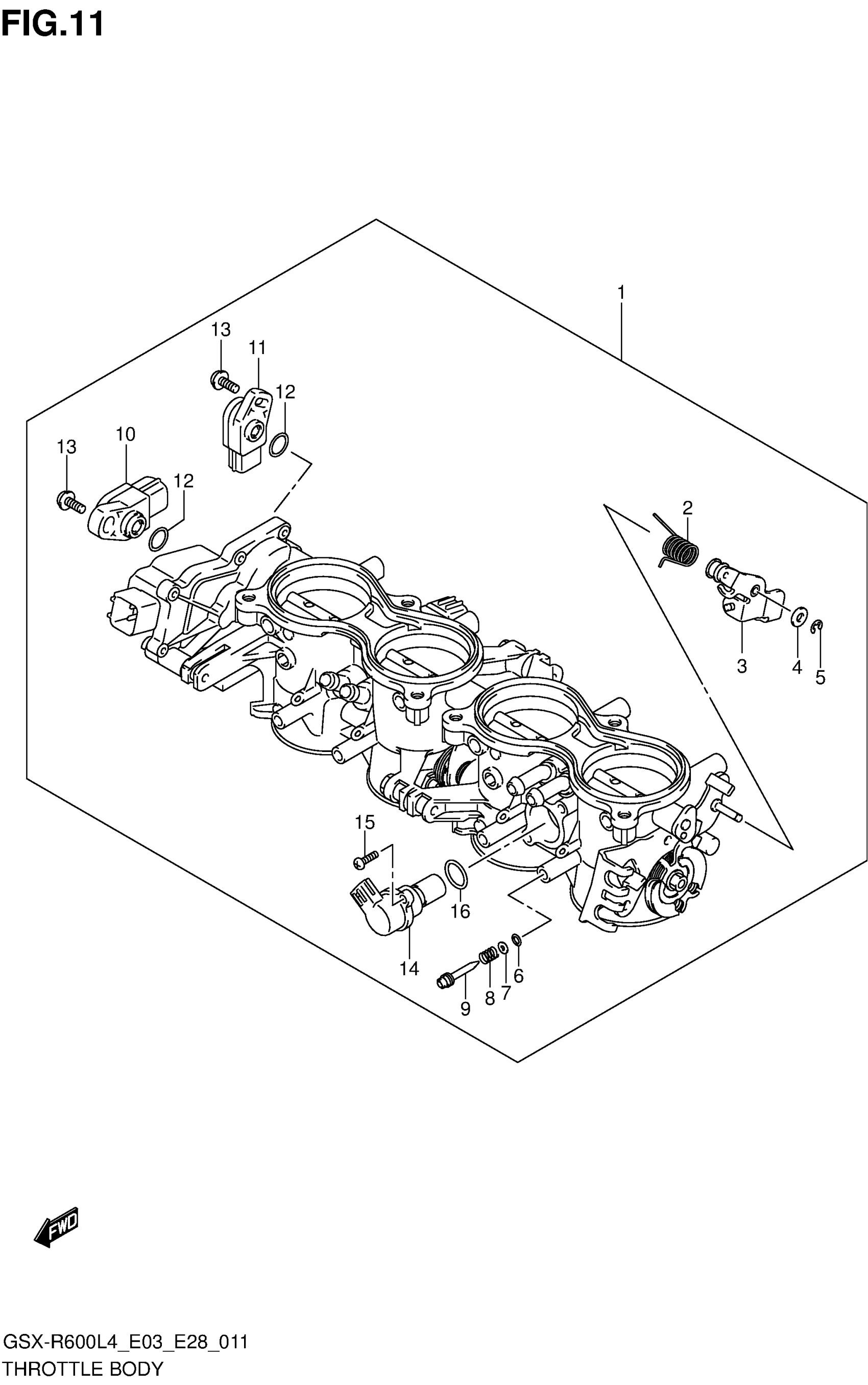

Suzuki GSX-R600L4 (2014) THROTTLE BODY (GSX-R600L4 E03) Diagram

Description

Price

BODY ASSY,THROTTLE This part replaces 13406-14J00.

13406-14J01

$2,418.73

SPRING, TORSION

13426-29G00

$6.05

LEVER ASSY

13420-37H00

Unavailable

PACKING

13427-29G00

$3.54

E RING

13424-29G00

$3.48

O-RING This part replaces 13295-29900.

13295-29901

$4.34

WASHER

13606-47A00

$3.28

SPRING,THROTTLE SCREW

13268-48700

$4.34

SCREW

13269-33E00

$11.10

SENSOR ASSY

13580-14J00

$151.08

SENSOR ASSY

13580-14J10

$170.23

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

SCREW

13605-02F00

$3.71

MOTOR ASSY

18117-14J01

$392.00

SCREW

13605-37H00

Unavailable

O RING

13679-37H00

$7.27
