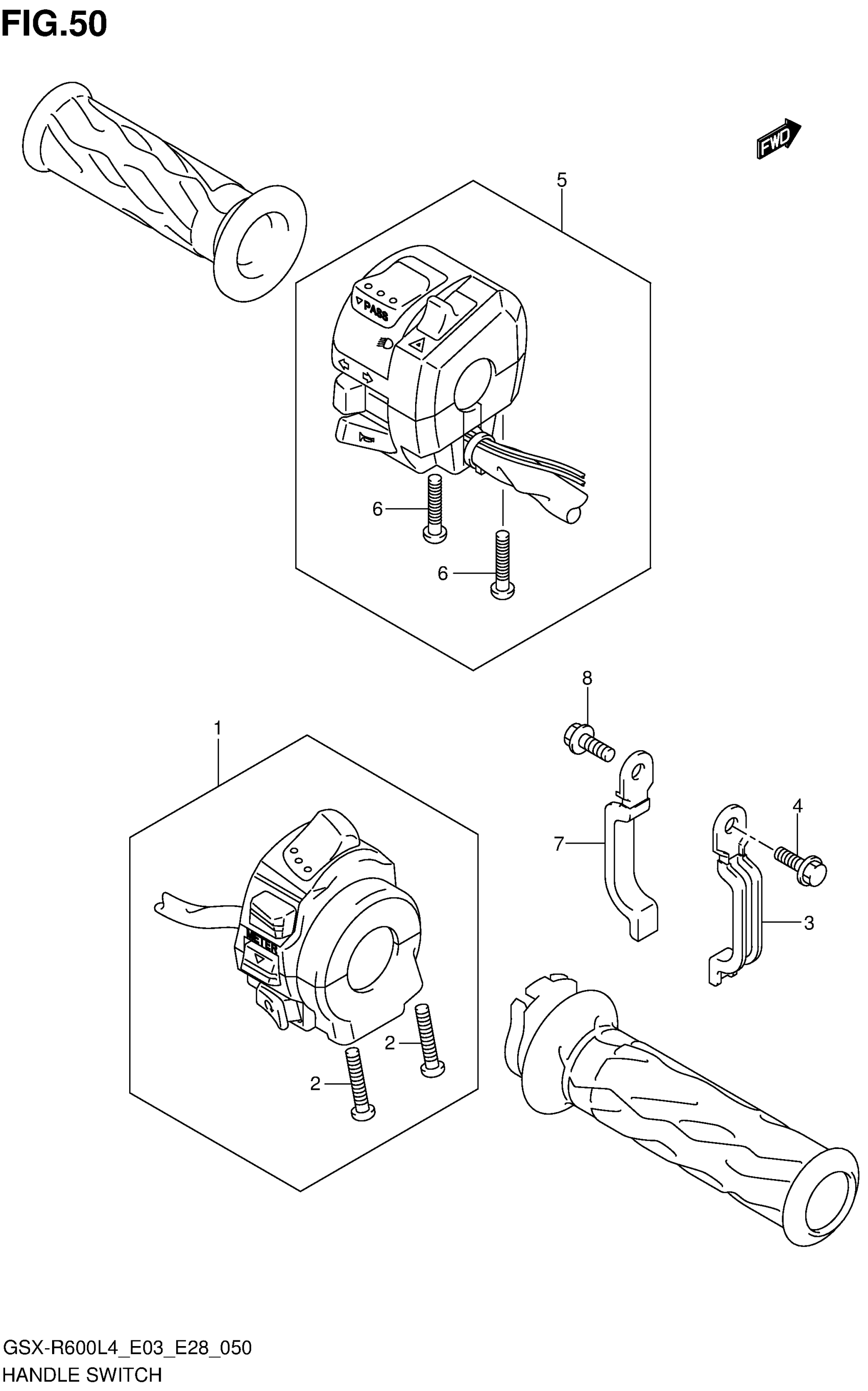

Suzuki GSX-R600L4 (2014) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HANDLE,R

37200-47H30

$212.40

2

SCREW

02112-0530B

$1.49

3

CLAMP

09403-06322

$5.20

4

BOLT

01547-0612A

$2.03

5

SWITCH ASSY,HANDLE,L

37400-14J00

$288.67

6

SCREW

02112-0535B

$2.23

7

CLAMP

09403-06322

$5.20

8

BOLT

01547-0612A

$2.03
