Description

Price

1

TANK ASSY, FUEL (BLUE) | FOR AGQ

44100-14J52-YSF

$1,637.35

1

TANK ASSY, FUEL (BLACK) | FOR AR5

44100-14J52-YVB

$1,637.35

2

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$172.96

3

BOLT (5X20)

09106-05017

$2.80

4

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

5

SCREW

44543-14J00

$7.95

6

FASTENER, COVER

44572-13G00

$10.13

7

CUSHION

09320-08071

$3.05

8

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.46

9

CUSHION,FUEL TANK RR

44542-41G00

$7.04

10

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$45.77

11

RUBBER,FUEL TANK FR

44546-44H00

$15.07

12

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

13

SPACER, TANK FRONT

44512-16G00

$6.80

14

SCREW (6X25)

09139-06192

$2.92

15

WASHER This part replaces 09160-06012.

09160-06054

$1.62

16

BOLT (6X110)

09106-06119

$5.21

17

SPACER, TANK REAR

44561-18G00

$15.52

18

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$23.47

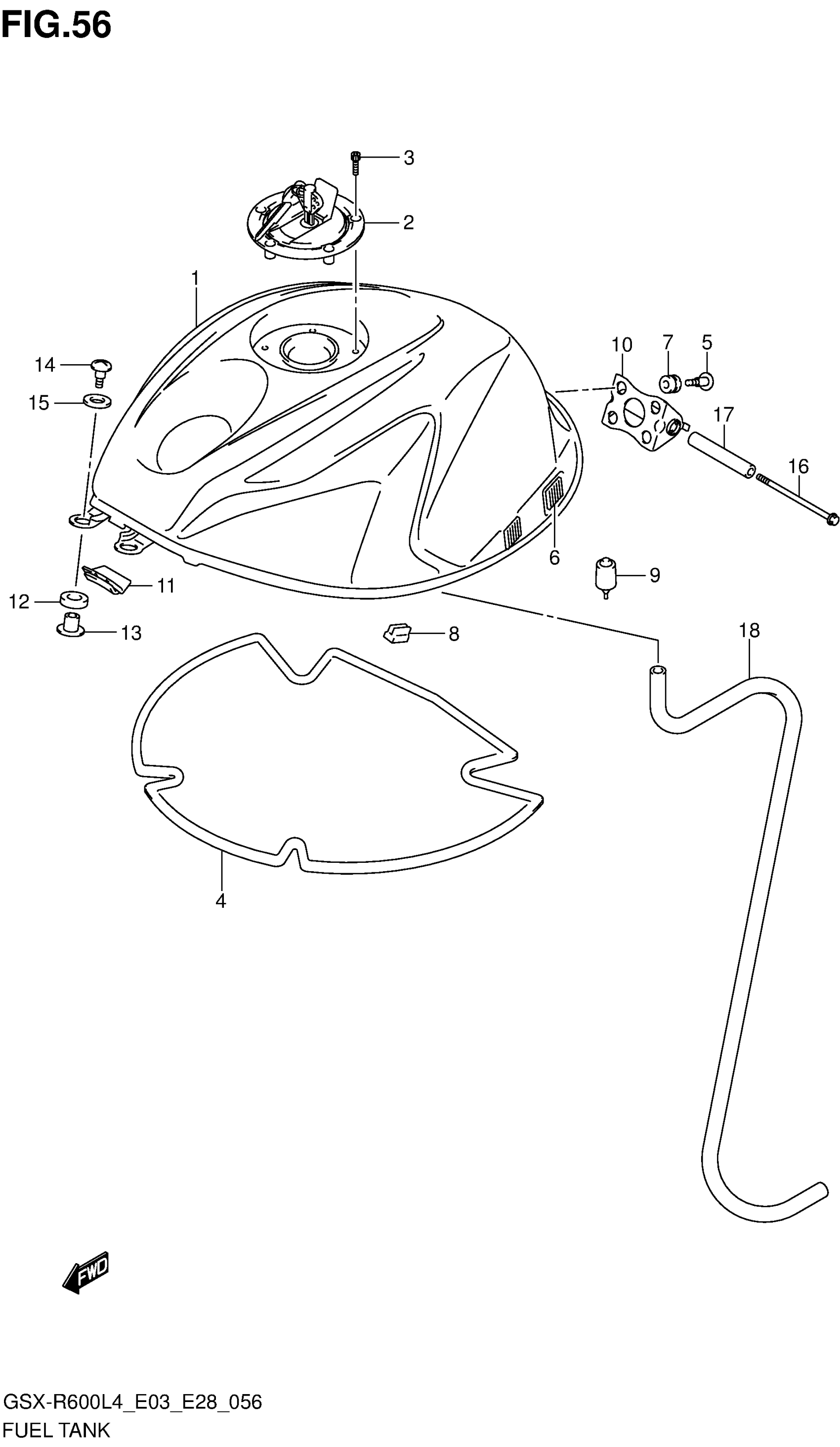

Suzuki GSX-R600L4 (2014) FUEL TANK (GSX-R600L4 E33) Diagram
