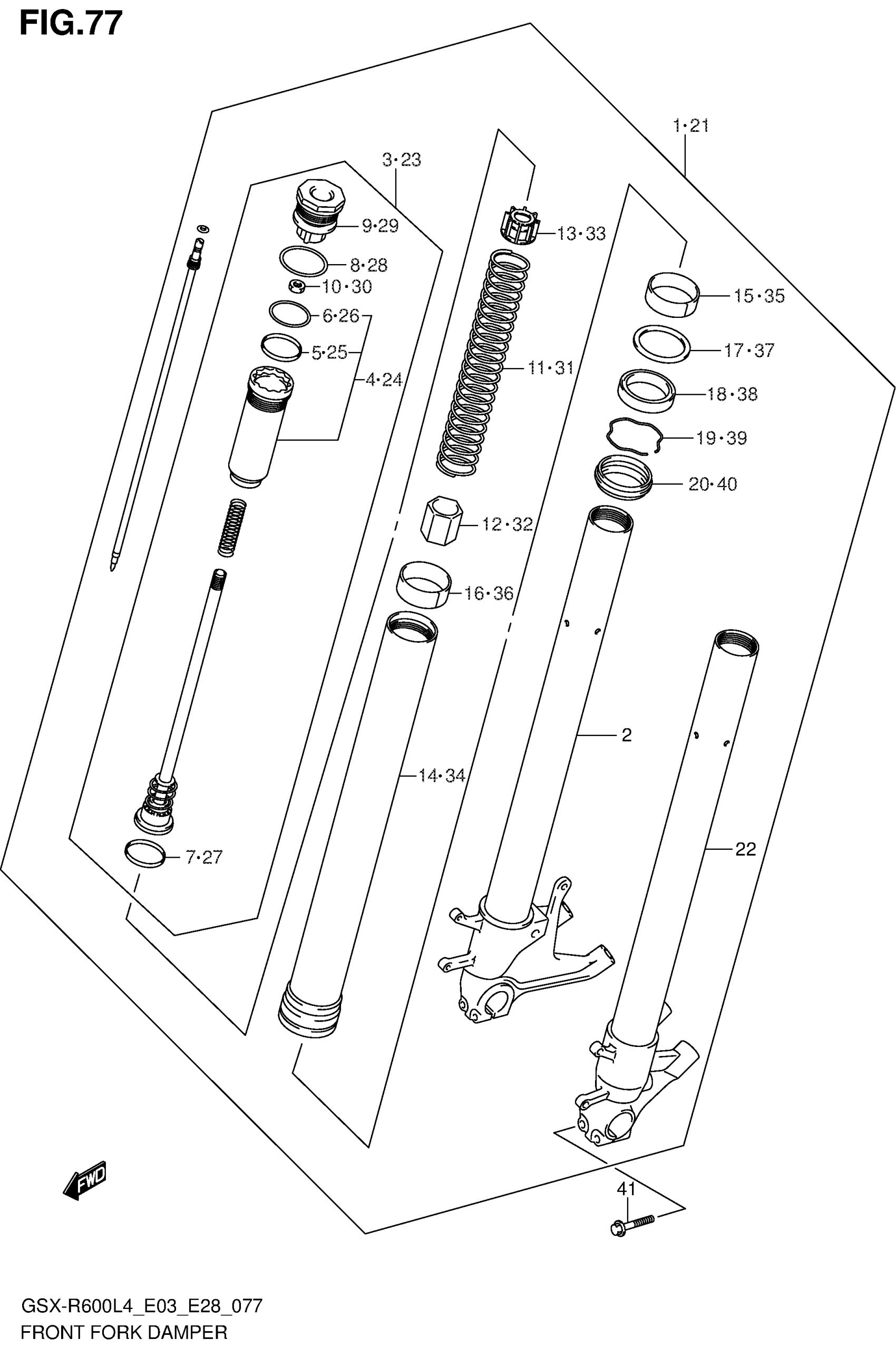

Suzuki GSX-R600L4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,RH This part replaces 51103-14J10.

51103-14J11

$2,167.13

2

.TUBE,INNER,R

51110-14J00

$878.73

3

ROD, PISTON

52110-14J00

Unavailable

4

CASE, ROD GUIDE

51174-14J00

$151.97

5

PISTON RING

51118-14J10

$65.16

6

...O-RING

51187-14J00

$3.54

7

RING, PISTON

51118-14J00

$9.18

8

..O-RING,FORK BOLT

51187-01H00

$6.79

9

BOLT

51189-14J00

$187.13

10

NUT

51827-29G00

Unavailable

11

SPRING

51171-14J10

Unavailable

12

COLLAR, SPRING

51176-14J10

$24.92

13

COLLAR, SPRING

51175-14J00

$9.58

14

TUBE, OUTER

51131-14J00

$684.15

15

BUSH, GUIDE

51152-01H10

$18.25

16

BUSH, SLIDE

51152-14J00

$14.20

17

SPACER, SEAL

51168-38B00

$6.49

18

OIL SEAL

51153-01H10

$26.91

19

RING, STOPPER

51556-38B00

$7.22

20

DUST SEAL

51173-01H00

$11.64

21

DAMPER FRONT,LH This part replaces 51104-14J10.

51104-14J11

$2,167.13

22

.TUBE,INNER,L

51120-14J00

$895.30

23

ROD, PISTON

52110-14J00

Unavailable

24

CASE, ROD GUIDE

51174-14J00

$151.97

25

PISTON RING

51118-14J10

$65.16

26

...O-RING

51187-14J00

$3.54

27

RING, PISTON

51118-14J00

$9.18

28

..O-RING,FORK BOLT

51187-01H00

$6.79

29

BOLT

51189-14J00

$187.13

30

NUT

51827-29G00

Unavailable

31

SPRING

51171-14J10

Unavailable

32

COLLAR, SPRING

51176-14J10

$24.92

33

COLLAR, SPRING

51175-14J00

$9.58

34

TUBE, OUTER

51131-14J00

$684.15

35

BUSH, GUIDE

51152-01H10

$18.25

36

BUSH, SLIDE

51152-14J00

$14.20

37

SPACER, SEAL

51168-38B00

$6.49

38

OIL SEAL

51153-01H10

$26.91

39

RING, STOPPER

51556-38B00

$7.22

40

DUST SEAL

51173-01H00

$11.64

41

BOLT

51321-36F00

$5.95
